Mobile head

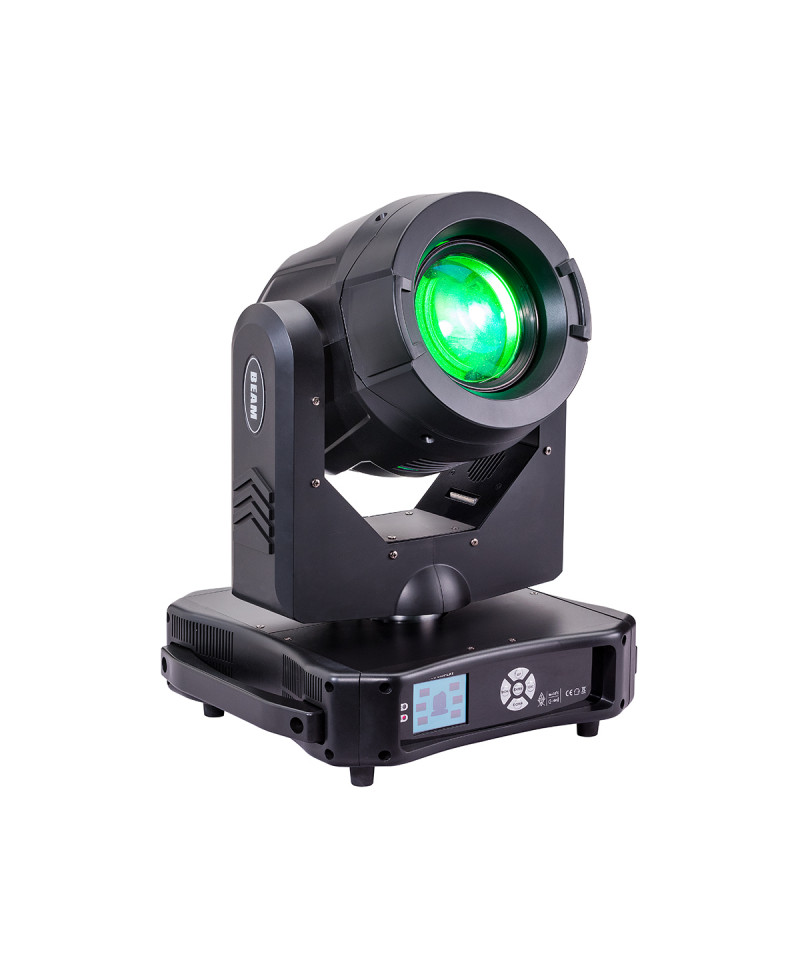

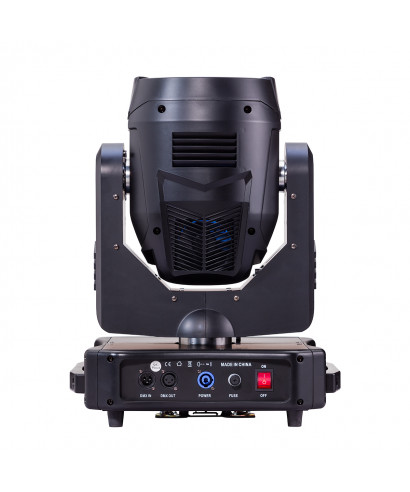

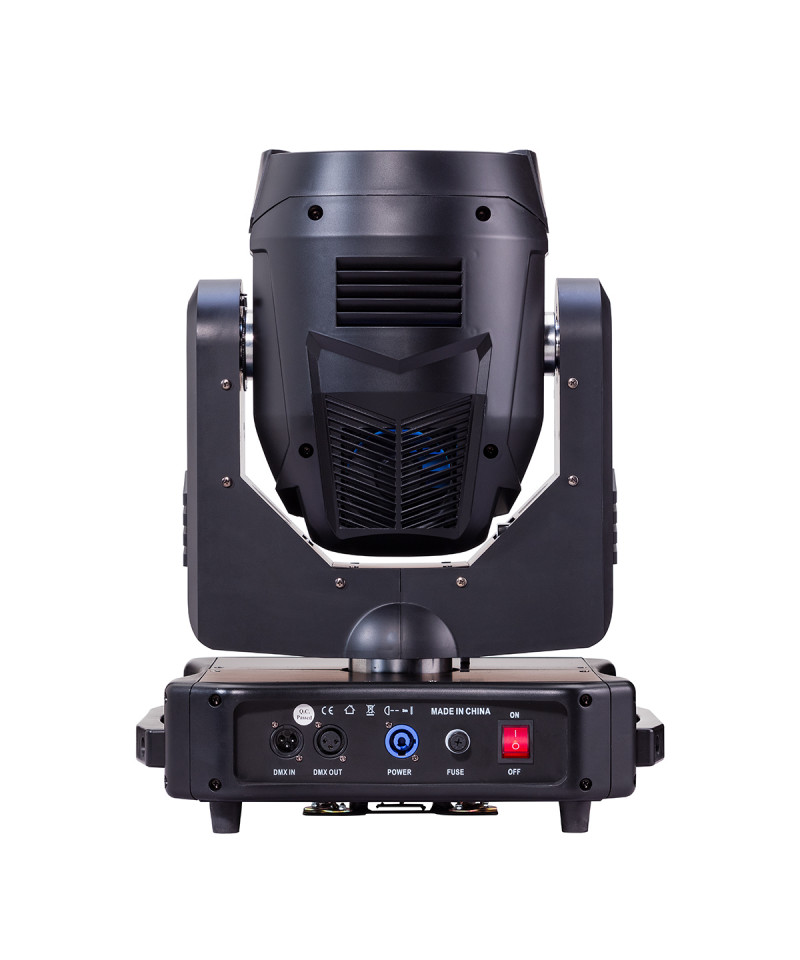

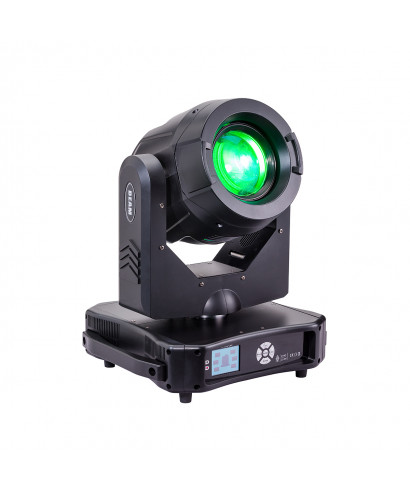

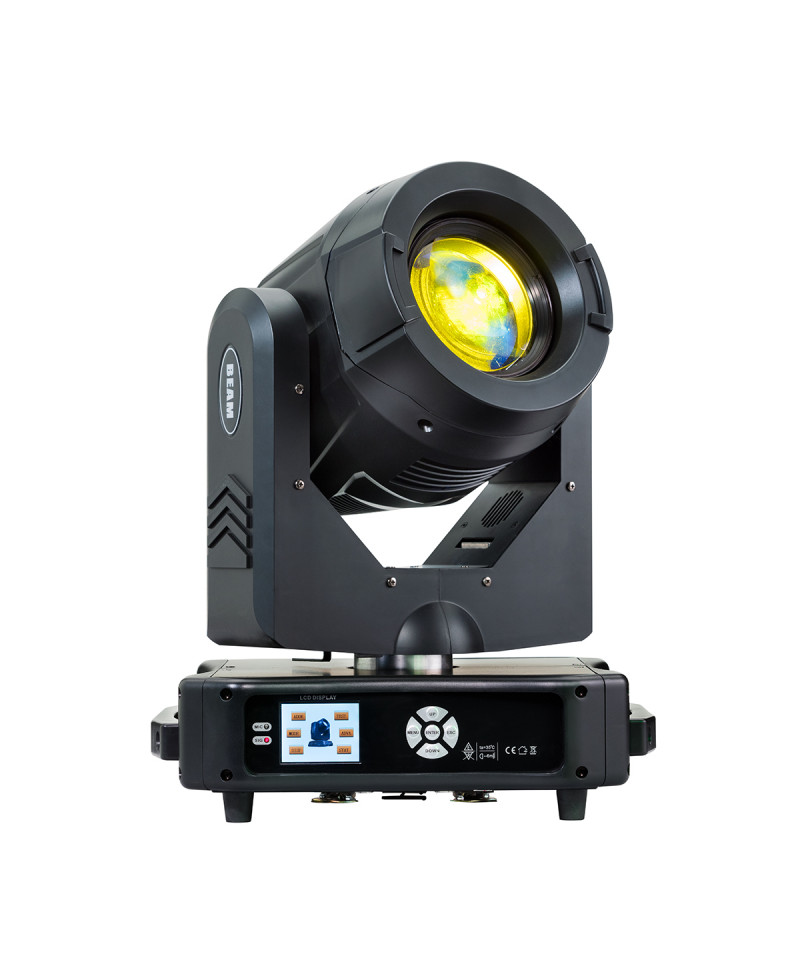

SOUNDSATION, presents, Spire 280 Beam 10R

The Spire series a brand new professional beam moving heads born to meet the needs of show lighting in the Rental and fixed installations. The line composed of three models respectively with standard 5R metal halide lamps (200W), 7R (230W) and 10R (280W) and 8000K color temperature. Ideal for medium environments-Large, 4 luminous beam emission lankin with bright intensity that in the model with 10R lamp reaches 38,000 lux @ 20m (288,000 lux @ 1m) away with a diameter between 1.5m and 0.35m. Pan and Tilt movements are obtained with engines 3-Step and give more accuracy and silent. They are equipped with linear electronic focusing 0 - 4 which determines a powerful beam of light well outlined even at long distances. Mount wheels-Colors with 14 dichroic + white with rainbow effect and a gobo wheel fixed with 17 gobo + white (6 in color + neutral). There are an 8-sided prism and one to 16 faces; Overlappable and with car effect-Rotation and shaking. The Shutter creates strobe effects at a maximum of 13 Hz; Linear dimmer 0-100%. The 16 and 20 channel DMX512 control. The car brackets are also included in the package-Lockers for fixing on TRUSS (hooks not included), power cables and DMX.

• Standard Metal Lamp 10R (280W)
• High precision pan 540 / tilt 265 movements, with automatic positioning of 16bit positioning, extremely rapid and silent
• Pan / tilt motors 3-Fast and silent phase
• Luminous flux: up to 288,000 lux @ 1m
• Wheel colors with 14 dichroic + open. 2 CTO filters (3200K and 2500K) + 1 CTB filter, two Rainbow effects, Half effect-color
• Gobo wheel: 17 Fixed gobo + open. Time / counterclockwise rotation. 11 Printed gobo + 6 dichroic HQ. 3 diameter gearboxes-beam
• Gobo function-Shaking
• Focus of automated gobos
• Frost filter
• Two prisms (one at 16 faces + the other at 8 faces) superimposable one compared to the other and on all gobos; With and without focusing.
• Touch display-Color screen, rotatable 180. Easy and intuitive setting are. Battery for access to men even without connection to the mains.
• Lamp: Standard metal ioduri 10R (280W)
• Power: Ac110v-240v
• Power consumption: 400w
• Fuse: F5A / 250V (20x5mm)
• Color temperature: 8000k
• Pan / Tilt movements: Pan 540, Tilt 265 with 16bit precision and photo correction-electrical
• Shutter: 1-13T / s with mechanical control and adjustable speedControl: DMX512
• DMX mode: 16CH / 20CH
• Control mode: DMX / Sound Active / Auto
• Gobo wheel: 11 metal gobo + 6 gobo in colored glass + open, electronic focus
• Color wheel: 14 + Open, Rainbow Effect, Electronic Focus Correction
• Rotate effects: 8-sided prism + 16-sided prism, superimposed and with shaking effect
• Frost effect: Frost linear 0-100%
• Display with battery: Cable powered display card to allow access to the setup without connecting the unit to the mains
• Lighthouse size (LXAXP): 270 x 500 x 326 mm
• Package size (LXAXP): 475 x 600 x 445 mm
