Digital mixer

ALLEN & HEATH presents Qu-6

The new qu offers 38 inputs and 24 outputs, with high-performance to 96khz converters and updated microphone preamplifiers, guaranteeing a crystalline sound fidelity and absolute transparency in the passage of the signal to the heart XCVI. Each channel is now equipped with a display showing name, type or socket number, in addition to a visible color level indicator, while the new touchscreen makes fluid and reactive interaction. With integrated Dante connectivity, qu-6D can easily connect to larger systems, offering 16 × 16 channels at 96khz or 48kHz. The mixer is designed to remain intuitive and accessible, especially for those coming from the analog world, with an even more slim and fastest walk up and mixer "interface, enriched by fully customizable layer, more softkeys Assignable and flexible routing options that flank the traditional scheme 1:1. The recording and playback options are extremely versatile, thanks to the USB audio interface-C 32 × 32 integrated, to 32-channel multitrack support via SD card, and to the possibility of stereo recording via USB-A. The mixer can also connect to the Everything I / O range of expansions from stage and rack, as well as to other Allen & Heath mixers for an audio exchange up to 128 × 128 channels at 96kHz. For the first time on the P platform, the compatibility with the Deep Processing and the Rackextra effects of the award-winning DELIVE series arrives, bringing a world tour quality to a compact mixer. New assistants for gain and feedback, borrowed from the CQ series, simplify the setup: the Gain Assistant automatically sets the optimal gain by constantly monitoring the level during performance, while the Feedback Assistant Quickly eliminate critical frequencies, applying up to 16 filters per output. Finally, the qu integrates an automatic 32-channel mic mixer, ideal for conferences, talk shows and TV programs, fully integrated into the mixer without additional latency or need for external DSPs, making it a professional, flexible and immediate solution in every context.

• 25 faders Motorized from 100 mm
• 96KHz processor with XDVI engine
• 6 Multi motors-FX with stereo returns Dedication
• Compatibility with Deep Processing for quality effects and compressors DLIVE
• Mix architecture with 38 total inputs: 32 mono / linkable and 3 stereo
• 12 total mixes: 6 Mono or Linkable Aux / Group and 6 Aux / Group Stereo
• 4 monatrix mono or linkable, plus principal stereo LR output

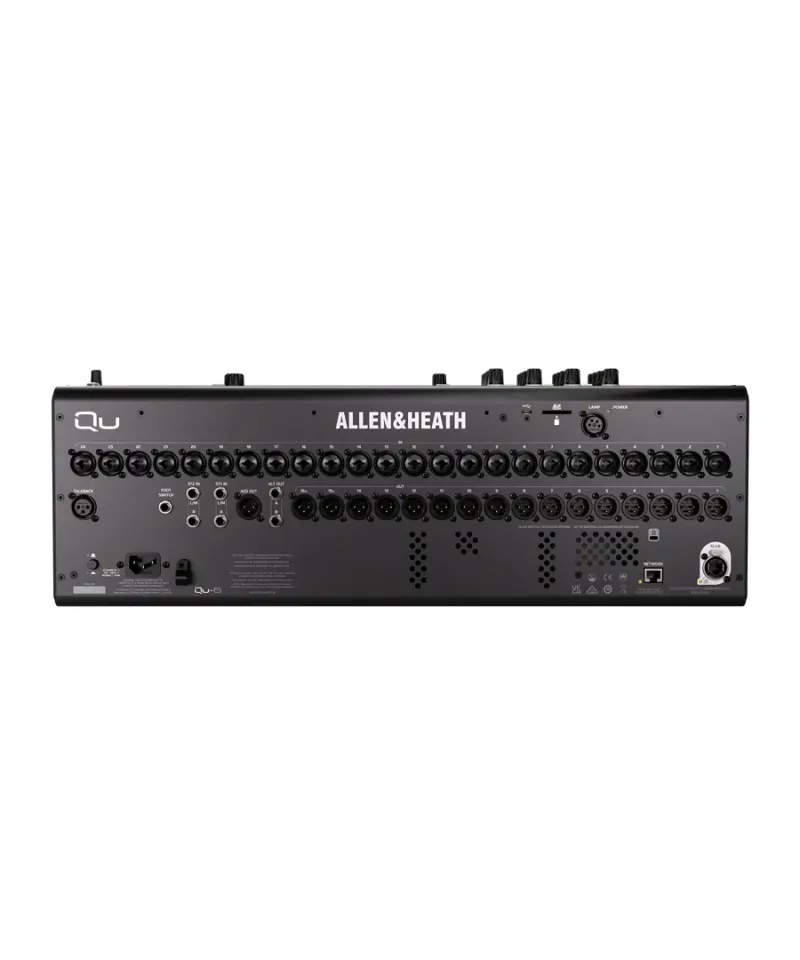

• I / O section with 24 Combo XLR / Jack inputs, 2 TRS stereo inputs, 16 XLR outputs, 2 TRS outputs, 1 XLR Talkback
• AES3 Stereo digital output, Dante door 16 × 16 to 48 / 96kHz (only on qu-6D), SLINK 128 × 128 and Stereo Headphone Output
• 7 "capacitive touchscreen control, 25 faders motorized from 100mm, 4 layer, 8 softkeys and configurable pedal
• Multi-channel recording and playback via USB-C (32 × 32), SD Card (16 × 16 at 96khz or 32 × 32 to 48KHz) and USB-To for stereo
• 12V lamp socket and configurable chromatic metering LEDs on each channel
• Dimensions (LXPXA): 476x609x213
• Weight: 13.5 kg
