ALLEN & HEATH presents Cq-12t

The Digital Mixer series CQ makes pin on a 96kHz FPGA processing technology, with variable bit rate up to 96-Bit, capable of operating at an extremely contained latency, lower than the millisecond: <0.7ms. The CQ mixer-12T State designed to be used wherever an elaboration is required and a high quality audio amount. It can be used by bands, from the sounds, from the service, in the test rooms, as a main mixer in a small club, theater, bar or as an additional mixer on stage.
In the CQ mixer series we find new generation tools and effects, for better mixing, simple and quick. Two are the effects processors (Send / Return) called FX Assists integrated in the CQ-12T providing various reverb algorithms, delay, chorus, ADT, flanger, phaser and various modulations, with specific presets for sound sources and sources. These are automatically adapted and dynamically to the processed signal.
On the input channels we can count on two distinct processing modes: the new and simplified "Quick", which provides a one-style processor for each type of instrument-Knob (to a single control) capable of managing a parameter macro, and the "complete" macro with all the individual parameters and processors we usually find on a digital mixer channel. Each channel can be configured independently and you can switch from the "Quick" mode to "Complete" at any time.
The Gain Assistant function saves us time by automatically and accurately and accurately gain value on the preamplifiers, keeping the situation to compensate if necessary - if necessary - The input level. It should also be noted that the value of the gain parameter of the preamps, as it digitally controlled, will be stored in the scene, then referred to the reopening of the same.
The Assistant feedback available on each output to identify, filter and then correct any problems of Larsen and unwanted re-entreses. It can be used in simple "single button" mode, or configured in detail through more detailed controls. The AMM - Automatic Mic Mixer present on all the input channels to help improve the intelligibility of the item immediately reducing the background noise.

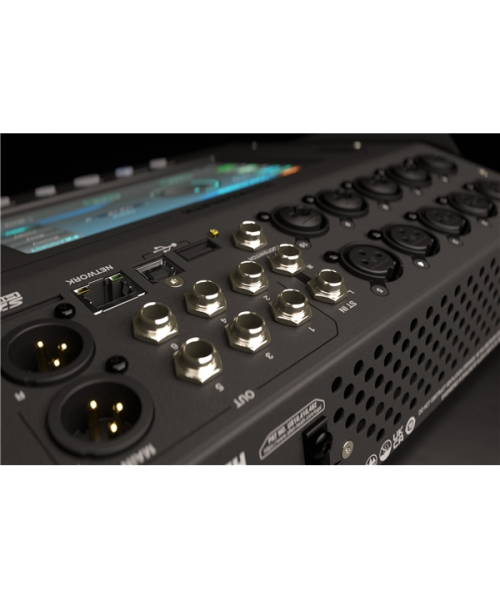

This mixer offers 12 analogue inputs: 10 mono mic / line e 1 Stereo Line (L and R Jack from 1/ 4 "TRS). The 10 MIC / LINE inputs are divided into 5 on a Combo (Jack / XLR) connector and as many on XLR. A total of 13 channels (10 mono and 3 stereo) considered the two digital stereo inputs Bluetooth and USB A (for audio playback from Pen Drive). In addition to the Main Out stereo on connectors (L / R) XLR format, Allen & Heath CQ-12T provides 6 AUX Monitor outputs on Trs (balanced) jack connectors from 1/ 4 ". There is a RJ45 socket for connection to a wireless router for remote control via app.
With the Allen & Heath CQ-12T You have the freedom to record and play in multitrack up to 16 in and 18 out on the SD card inserted in the appropriate slot on the panel, or on PC and Mac computer, taking advantage of the integrated USB audio interface (Type B port) integrated. The maximum recording limit on SD cards regulated by the supported formatting standard that the FAT32, which for a multitrack recording at 48KHz of approximately 8 hours; 4 Supported hours for 96kHz multitrack recordings. This corresponds to about 72GB of occupied space. NB: you recommend SD card in class 10, UHS Speed Class 1, not less than 10MB / s.
Check the mixer from your computer, smartphone or tablet thanks to the two free applications for Windows, Mac, Android and iOS operating systems. Cq-MixPad provides you with complete control of your Allen & Heath CQ mixer, while with CQ4YOU each musician, singer or performer can adjust your own mix.
You can install your CQ mixer rack-12T using the appropriate CQ12T RK19 kit (Algam code EKO: Gal61931902). Also available the semi-rigid case with handle and shoulder strap CQ 12T Softcase (algam code EKO Gal61931901), for a convenient transportation.

Features

• 13 channel digital mixer
• 7 "multitouch screen
• Inputs Mono Mic / Line: 10 (5 combo XLR / Jack, 5 XLR)
• Mono linkable channels
• Stereo inputs: 1 (L + R) TRS JACK ", Bluetooth, USB A
• Outputs: 1 Main XLR, 6 Aux Monitor (Jack TRS 1/ 4 ")
• Assignable headphone output to Trs jack from 1/ 4 "
• USB AUDIO B for PC / MAC 16In, 18OUT
• Recording / Playback on SD Card 16in, 18Out
• Record / Playback from USB A with dedicated channel
• Bluetooth stereo input with dedicated channel
• 2x FX Assist
• 3x custom softkeys
• Dual Footswitch
• Size: 290 x 242 x 88mm
• Weight: 2,4kg
