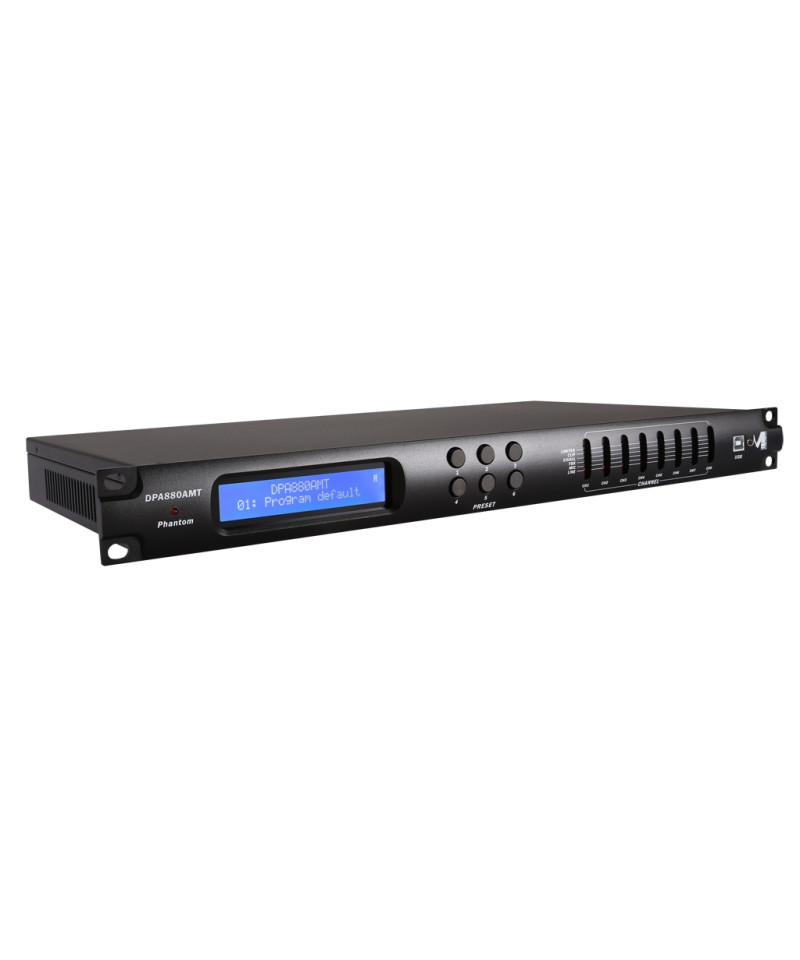

The DPA880AMT is a high-performance digital audio matrix with 8 inputs and 8 outputs. Designed specifically for audio conference systems, keeps the same characteristics of the DPA880T with the addition of car mixing and ducking functions. It includes 8 individually switchable inputs such as line or mic with phantom power and 8 line outputs, all managed by a powerful DSP together with high-performance AD / 24bit converters. The DPA880AMT supports "Routing" mode in which the inputs can be routed / mixed in any output. Each MIC / LINE input channel provides pass filters-high and pass-bass 1° Order, 3-band parametric equalizer, Noise gate function and gain control. Furthermore, the microphone inputs include the Feedback Eliminator function, based on a powerful "pitch shifting" algorithm, particularly suitable for "voice" applications. Automixing function automatically adjusts the input level, to make the management easier thanks to both the nom (open microphone number) function, and to the gain sharing algorithm. In addition, the "Ducker Priority" function imposes a "priority order" to open microphones, so that the high priority inputs attenuate those inputs at low priority. Each output offers up to 5 parametric equalization bands, crossover filters, RMS compressor, peak limiter and programmable delay. The DPA880AMT can be connected via USB, Ethernet or RS485 for remote and control configuration, using the dedicated PC software that also allows setting of all parameters and viewing all levels in real time. Additionally, the matrix can also be managed by the Apple iPad® device, using DPA880XT dedicated software that allows you to intervene on all control and management parameters. For the application in complex systems, the matrix also provides 8 digital ports in / out (GPIO) for integration with other devices. Finally, the DPA880AMT can be connected through the RS485 connection to the optional CP4 remote control panel that allows the selection of 4 assigned presets and control of the master volume.

Features

• Outstanding Performance: - Excellent sound performance with 24bit high-end converters coupled with 48khz sampling frequency - 8 mic / line inputs, 8 outputs with complete matrix mixing
• Top-Grade DSP Engine: - 3 Parametric equalization bands for each input channel - 5 Parametric equalization bands for each output channel - Each band can be switched to Peaking, Low / High Shelving with Variable Q Response - Crossover filters with 6 dB / octave slopes up to 24 dB / octave, including Butterworth, Bessel, Linkwitz-Riley - Gain Control, Noise Gate, Eliminator Feedback (MIC Input Only) for Input Channel - Each output has a precision dynamic range controller composed of a peak limiter and a RMS with compressor with selectable and variable ratio - DELAY TIME adjustable up to 380 ms for each output channel
• Direct PC / Network Connection: - USB connector on the front panel for direct connections to the PC - RS485 Ethernet interface for system configuration, monitoring and control via completely manageable remote PC software

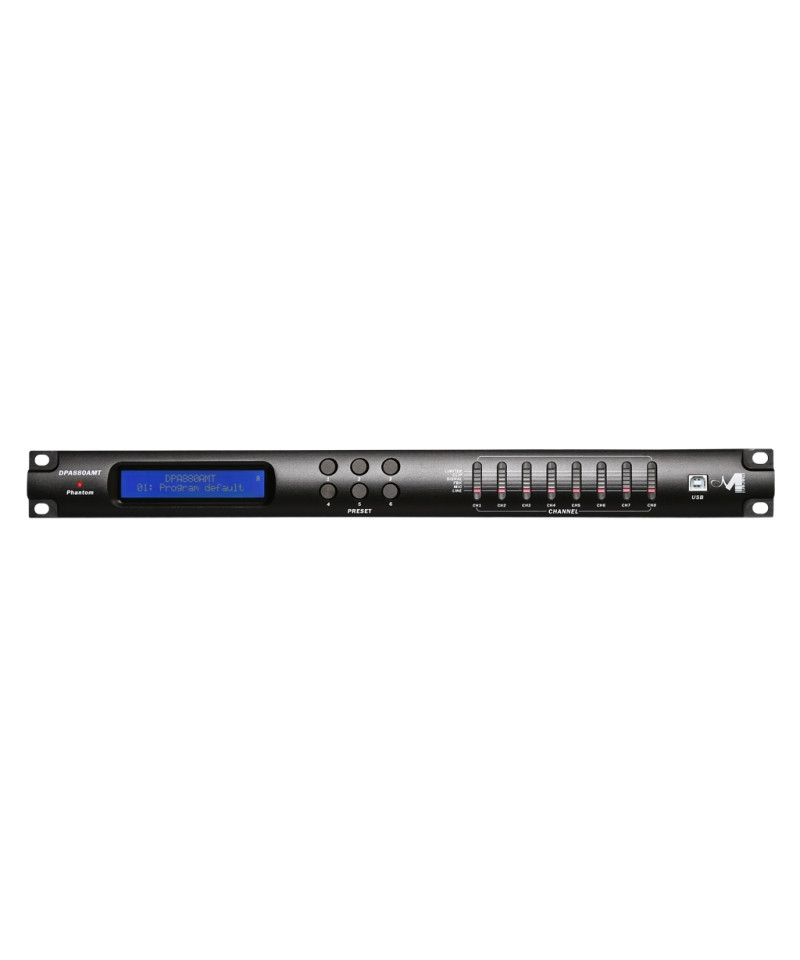

• Controls: - Front interactive LCD display control panel for local access and configuration - Status indicators on the front panel 6-LED per channel - 4 digital entrance doors for 4 selectable additional presets - 4 digital output ports for 4 external triggering devices - Simultaneous control from 32 units via PC Software - DPA880XT Software for the Apple iPad ® device that allows you to control up to 32 units simultaneously, setting all the parameters and showing the levels in real time - Optional Remote Control Marani CP4 Wall Panel that allows the selection of 4 assigned presets and control of the main volume - Security block

Technical specifications

• // Audio // analog input: 8 electronically balanced
• Analog Output: 8 electronically balanced
• I627i
• Maximum Output Level: + 18DBU
• THD + N: 0.005% at 1KHz 0dBu
• S / N:> 104dba
• Frequency response: 20Hz 20KHz + /-1db
• AD & FROM CONVTERS: 4X AK5385B 24bit, 1x AK4358 24bit // DSP & Processing // DSP Engine: DREAM SAM3716, 24bit (date) x 96 Bit (coeff.)
• Resolution DSP: 24 × 32 bits for the filtering process; 96 bit resolution on intermediate calculation results
• INPUT EQUALIZATION: - 3-Parametric bands that can be selected as Peaking or Low / High Shelving with Q Variable for Input Channel - Low / High Pass 1st Order Filter for Input Channel
• Output Equalization: 5-Band Parametric EQ Selected as Peaking or Low / High Shelving With Variable Q For Output Channel
• Filter Gain: From -12DBU UP TO + 12DBU by 0.5DBU RESOLUTION STEPS
• Central frequency: selectable with 1/ 24 of eighth resolution step by 20Hz up to 20khz
• Q / BW filter: Q from 0.4 up to 10 by 0.1 Resolution Steps
• Crossover HPF / LPF section: - Butterworth 6/12 / 18 / 24DB per octave - Bessel, Linkwitz-Riley and custom 12 / 24dB per octave - Filter resolution 1Ottava / 24
• RMS Compressor and Peak Limiter: - 18dbu threshold up to -30dbu - 5ms attack time at 200ms (1MS resolution to 20ms, 10ms resolution up to - 100ms and 20ms resolution up to 200ms) - Release time from 0,1 1 sec sec (resolution 0,1 SEC) - Report from 1:1 32:1 (Compressor only) - Soft or hard adjustable knee (compressor only)
• Delay: 848.998 ms 21US Increment / Decrement Steps per channel
