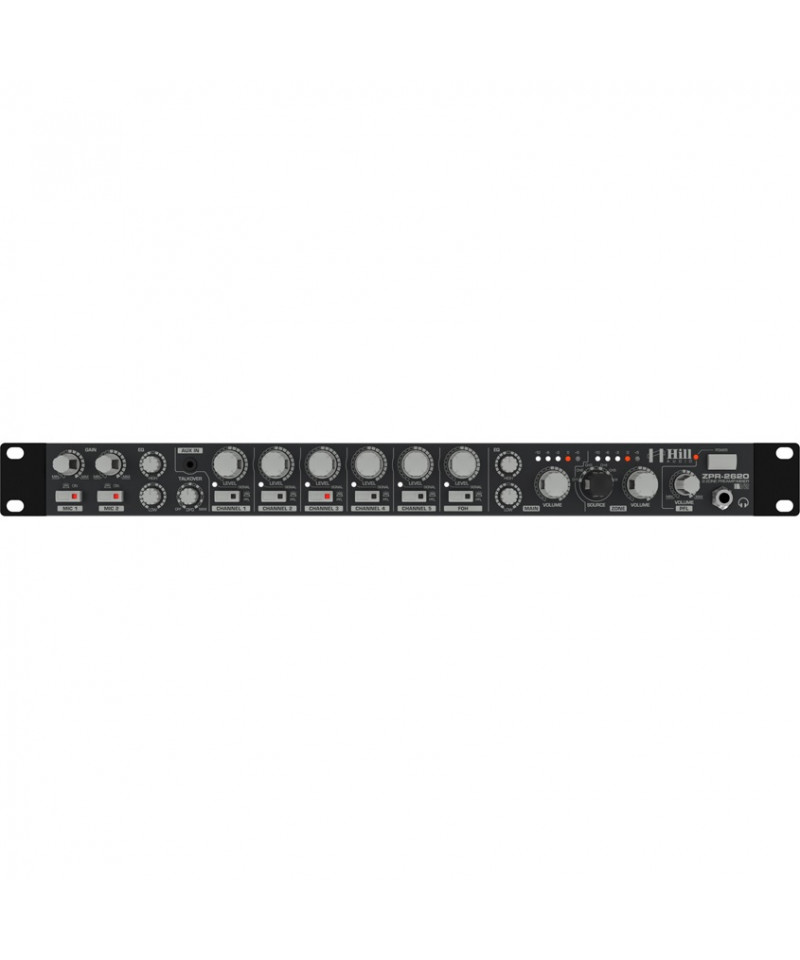

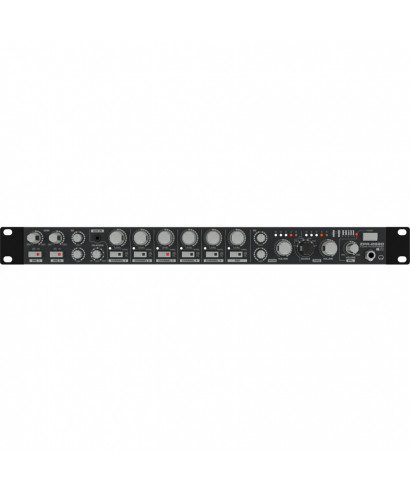

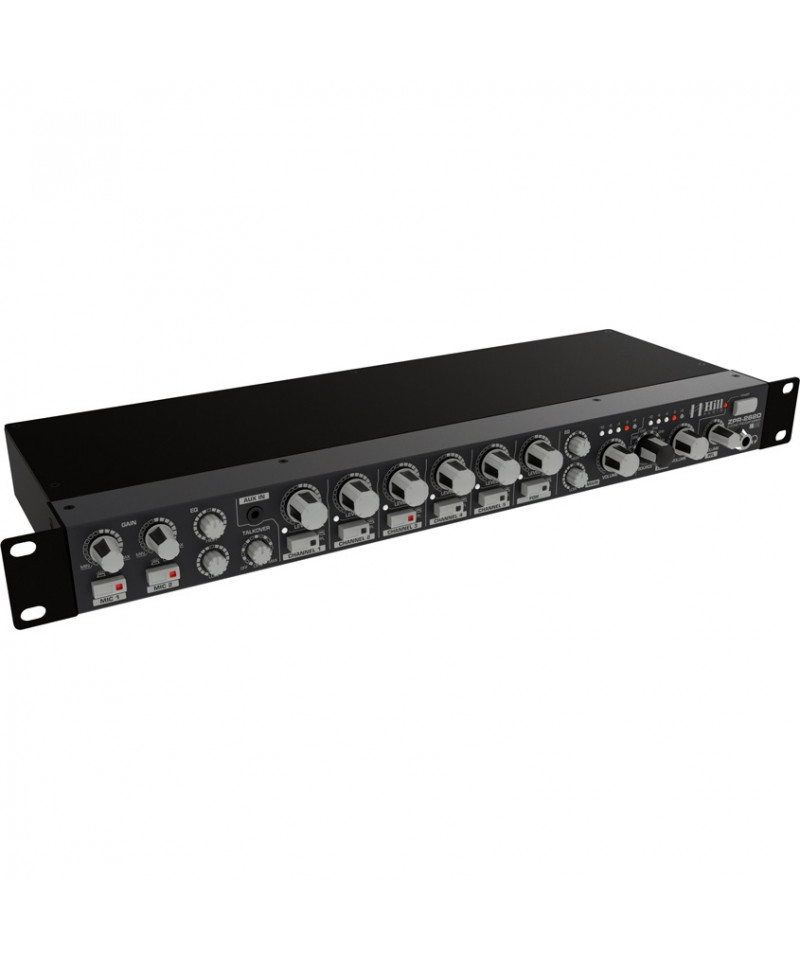

The Mixer ZPR2620V2 2-Zones is the only mixer with 1U installation with Hill Audio Cascadezone ©, which allows the 2nd exit to act both as a second master or as a second zone. Each output includes complete configuration controls in the rear panel. The 2 microphone inputs are integrated with 6 stereo inputs, of which two are equipped with a switch for selecting the line / microphone - Which makes the ZPR2620 a single mix between microphone mixer and stereo line mixers. Another hill audio innovation is FOH input, which provides an ideal solution for locals with occasional live music events - Allows you to power the FOH system with an external balanced stereo input signal. The ZPR2620V2 is the default choice for control of music in the rooms where it is hosted.

Features

• 6 stereo inputs with signal -the present- LED, controlled gain on the rear panel and level control on the front panel
• 2 microphone switchable stereo channels
• 1 Balanced stereo input (FOH entrance)
• 3,5 mm input TRS Stereo SL Front panel
• 2x microphone inputs with TRS connectors from 1/ 4 "on the rear panel
• 12V phantom power supply for microphones that can be activated from Internal Bridge (jumper)
• Voice: 2-band EQ with "On Air" functions for microphone inputs
• Auto Talk-Over adjustable for automatic music level reduction when using the microphone
• Stereo output area and a mono output area
• 5 LED level indicators for each zone
• CASCADEZONE ©: Sound source of an input area 1-5 or from the area stereo signal

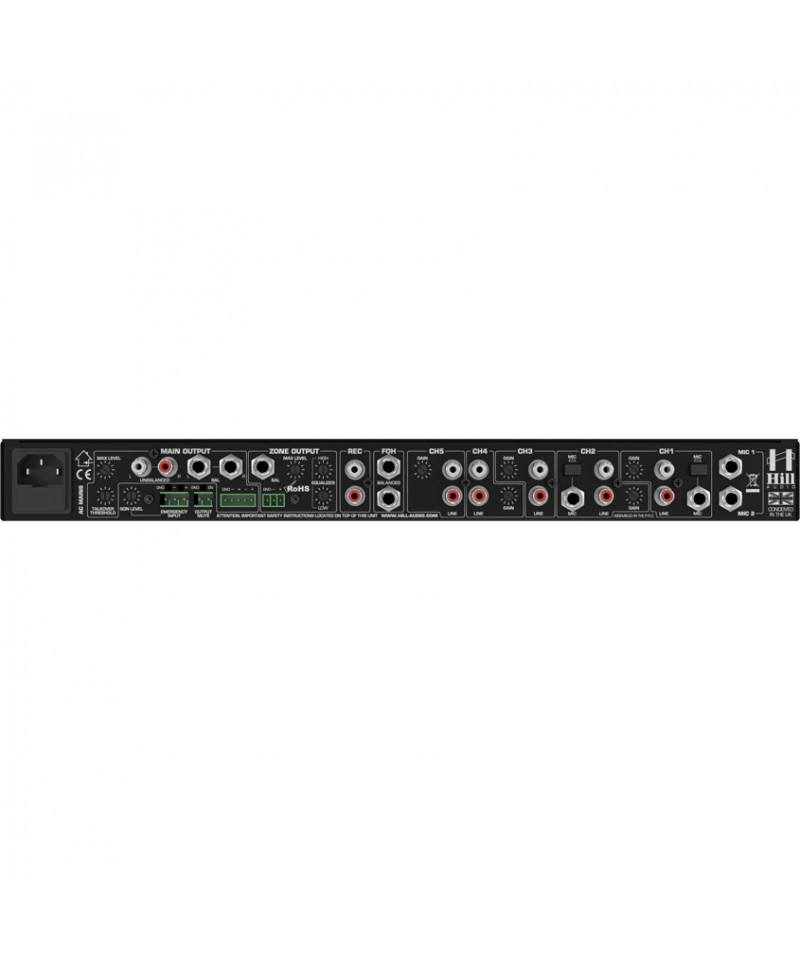

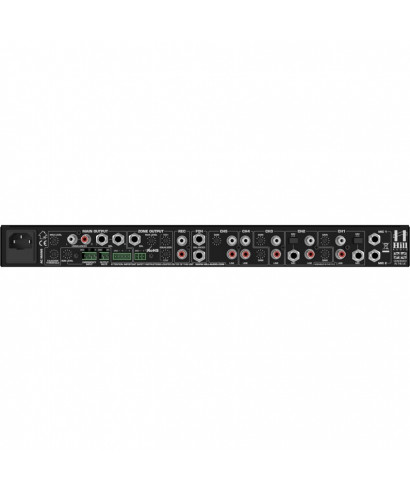

• Controls on the rear panel of the maximum adjustable level for each zone
• XLR and balanced phoenix output connectors, stereo area with additional unbalanced RCA connectors
• 2-Band EQ Master (front panel for the stereo area, mono for the rear panel)

Technical specifications

• Signal / Noise> 82DB (Line)
• Crosstalk Damping> 65DB (Line)
• E483e
• Frequency response: 20Hz - 20khz
• Dimensions (LXAXP): 483.0 × 44.5 × 183.5 mm
• Weight: 2.4 kg
