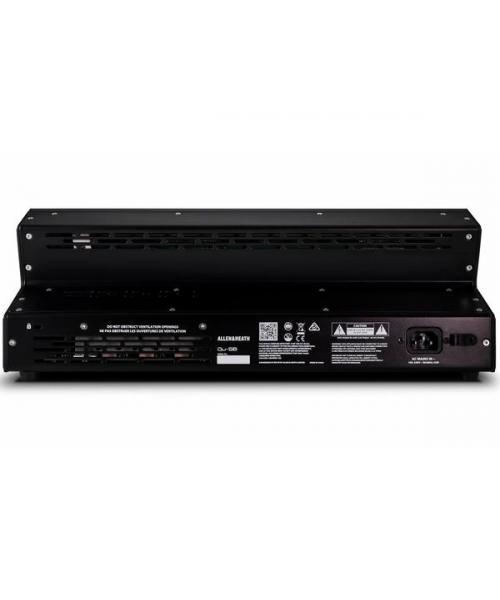

Qu-SB It boasts 18 inputs and 14 integrated outputs, but simply connect it, with a simple CAT5 cable, one of the Allen & Heath audioracks to expand it up to 32 inputs and 24 mono outputs. Add the application of Personal Monitoring Qu-You for Android and iOS, plus the Personal Mixer Me-1, and Qu-SB It becomes the ideal choice for the bands that want to have the same sound as the room in the monitors where they perform.

• 16 Mono Inputs (TRS + XLR)
• 1 Stereo entrance (TRS)
• 12 integrated mix outputs (LR, mono mix 1-4, stereo mix 1-3)
• 1 Matrix stereo output (TRS)
• Core qu-32 Inside (32 mono + 3 stereo input channels)
• Up to 11 Mix Monitor (4 Mono + 7 stereo)
• 4 FX motors
• 4 FX SEND / RETURN
• 4 Mute Group
• 4 DCA Group
• 32x32 USB audio interface
• Qu-Drive for recording / playback Direct multitrack on USB drives
• Preamplificatorianalogiq^Tim recalled
• FX Library ILIV
• Remote audio DSNake port for expansion up to 38 entrances
• Automatic MIC Mixer
• Possibility of 19 "rack mounting with optional fins
• Compatible with the Me Personal Mixing system
• Application qu-Pad for iPad
• Application qu-You for the Personal Monitoring on iPhone / Android
• Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on allti the entrances
• INSERT, GEQ A 1/ 3 of octave, 4-band PEQ, compressor and delay on all the MIX outputs
• Integrated signal generator
• RTA with peak indicator
• Spectrogram for deleting feedback and room acoustics control
