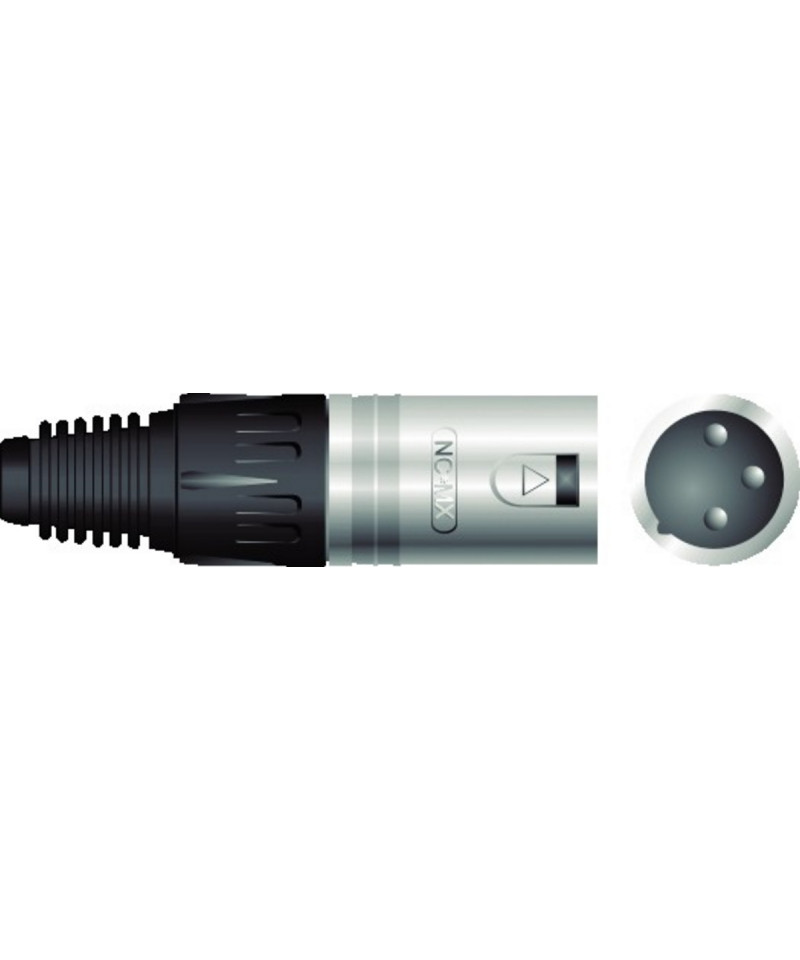

XLR NC3MX connector NEUTRIK 3 pin m
The XLR connector for "standard" cable, easy to mount with only 4 parts and without screws. Compact design with a sturdy die-cast shell, rigid plastic insert reinforced with fiberglass. Press system-Spindle type cable for secure fixing of all types of cables.
Features
- Rugged, lasting and durable die-cast zinc shell
- Stop system-Spindle type cable for safe fixing of all cables
- Hood with rubber coating that offers high protection against bending stresses
- Colored rings and shells for coding and label
- UL recognized components
Technical specifications
- Connection type: XLR
- Genre: Male
- G284g
- Contact resistance: less than 3 mohm
- Dielectric Strength: 1, 5 kVDC
- Insulation resistance:> 10 GoHM (Initial)
- Current voltage for contact: 16 a
- Rated voltage: 50 VCAVO O.D.: 3.5 - 8.0 mm
- Insertion force: = 20 n
- Withdrawal force: = 20 n
- Duration:> 1000 coupling cycles
- Cable size: max. 2.5 mm²
- Cable size: max. 14 AWG
- Wiring: welded contacts
- Locking device: Latch Lock
- Boot: Polyurethane
- Contact plating: 2 micron AG over 2 microns
