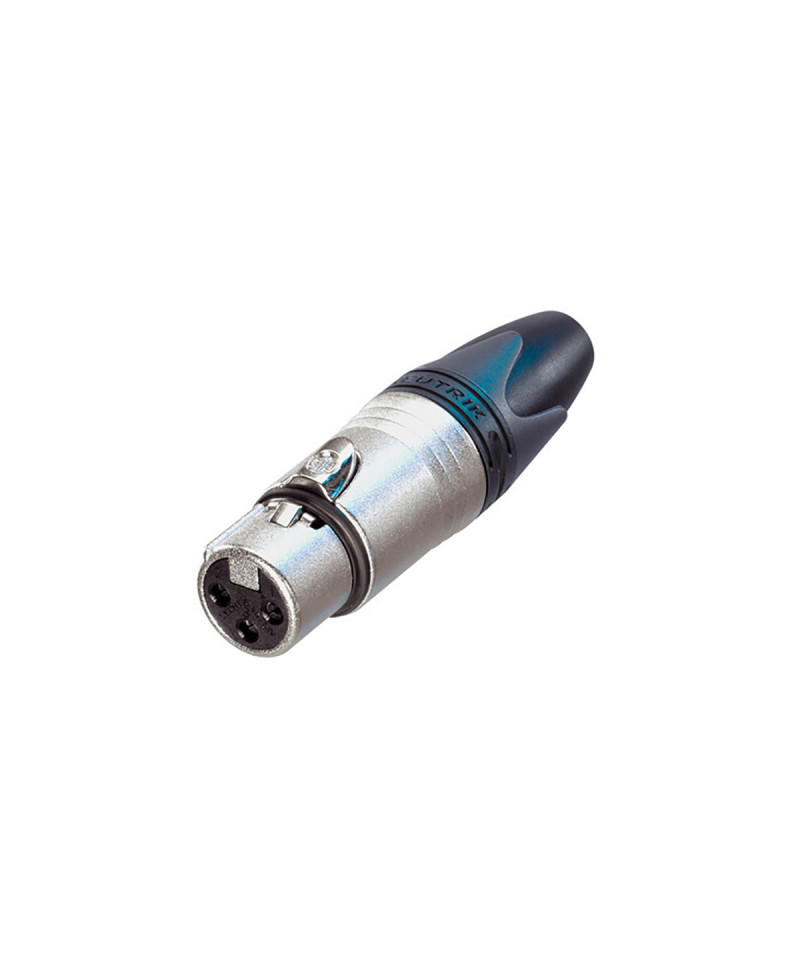

XLR NC3FXX connector-Of NEUTRIK 3 pin f - Not assembled

XLR NC3FXX connector-Of NEUTRIK 3 pin f - Not assembled

XLR NC3FXX connector-Of NEUTRIK 3 pin f - Not assembled
Disponibile solo online
I788I
New
Available

Order it before 12:30 on Monday and receive it between on 12/11/25 and 12/12/25 with Corriere Espresso. ESTIMATED DATE.

€7.00 -€1.68
€5.32
Tax included
Trade in your used
Did you find a lower price?

Hai trovato un prezzo più basso?

Contattaci compilando il form sottostante!

Inserisci il link del sito dove hai trovato il prodotto ad un prezzo più basso

Have questions? Ask the expert.

CHIEDI ALL'ESPERTO

Il contatto con il cliente per Noi è fondamentale.

Con questo servizio aiutiamo il cliente sia nella scelta del prodotto, sia nel processo di spedizione. Nel nostro sito inoltre potrai trovare guide e manuali online oltre che video dimostrativi; se tutto questo non ti è sufficiente il nostro team è sempre pronto ad aiutarti in ogni tua esigenza.

Chiamaci per per qualsiasi informazione al numero +39 049 9000348

Satisfied or refunded
Guaranteed product

Last generation connector accepted worldwide as a standard for XLR connectors. It collects the legacy of the X series offers numerous new features that make it more reliable, easier to assemble and improve contact integrity as well as the cable locking system.

Features

  • Innovative design of low-contact and high efficiency female contacts
  • Female contacts incorporate an anti barrier-Welding to prevent this from reaching the contact zone
  • Female Connector With Improved Solid Metal Latch Which Is Larger and Easier to Handle
  • Additional spring earth contacts for greater continuity in earth contact
  • Improved mandrel cable locking system that provides more retention and allows easier and easier mounting
  • Body of the polyurethane connector that offers high protection to cable flex stresses
  • Elegant and ergonomic design - beautiful and manageable
  • Robust shell in die-cast zinc, lasting and reliable
  • Marked with anti counterfeiting hologram that guarantees genuine and authentic neutrik products

Technical specifications

  • Connector type: XLR
  • Genre: Female
  • I788i
  • Contact resistance: = 3 MO (Inner)
  • Voltage applicable to dielectric: 1, 5 kVDC
  • Insulation resistance:> 10 Go (Initial)
  • Current on each contact: 16 a
  • Voltage on each contact: <50 Vidameter of the cable: 3.5 - 8.0 mm
  • Duration:> 1000 mating cycles
  • Wire size: max. 2.5 mm² (max. 14 AWG)
  • Body: Polyurethane
  • Contact plating: 2 μm AG
  • Contacts: Bronze (Cusn8)
  • Insert: Polyamide (PA 6.6 30% gr)
  • Locking element: die-cast zinc (ZNAL4CU1) / CK 67 (spring)
  • Shell: Zinc Diecast (ZNAL4CU1)
  • Shell plating: Nickel
