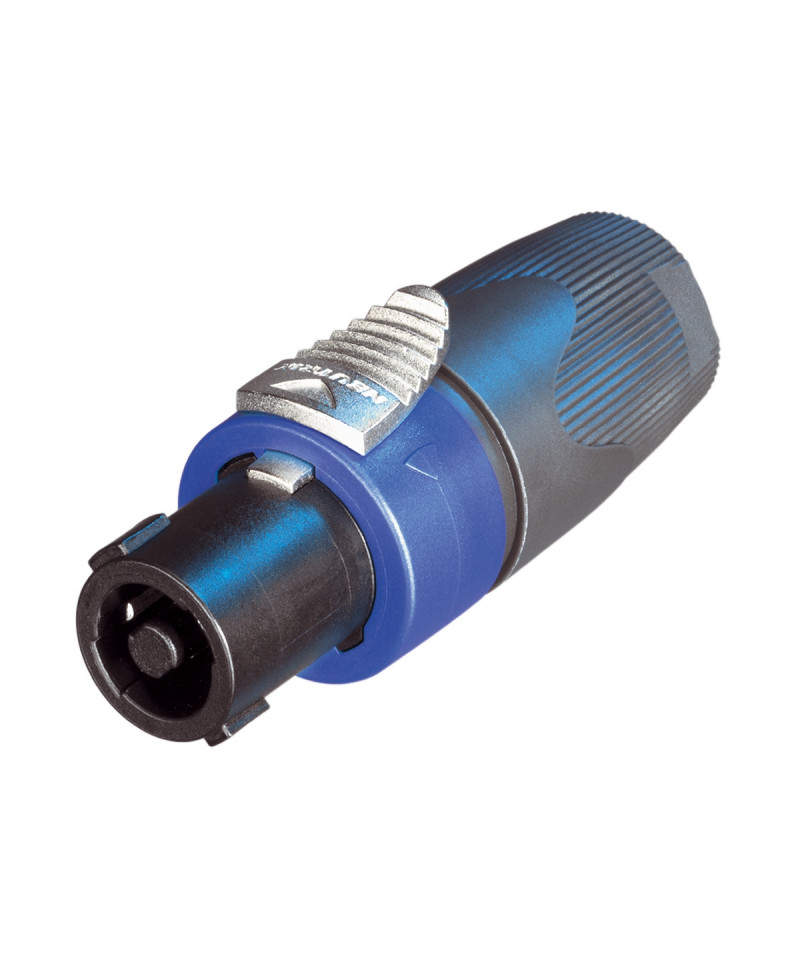

Speakon connector NEUTRIK Nl4fx-D (not assembled)

Speakon connector NEUTRIK Nl4fx-D (not assembled)

Speakon connector NEUTRIK Nl4fx-D (not assembled)
L159L
New
Out-of-Stock - Availability date: 1970-01-01
€9.00 -€2.32
€6.68
Tax included
Trade in your used
Did you find a lower price?

Hai trovato un prezzo più basso?

Contattaci compilando il form sottostante!

Inserisci il link del sito dove hai trovato il prodotto ad un prezzo più basso

Have questions? Ask the expert.

CHIEDI ALL'ESPERTO

Il contatto con il cliente per Noi è fondamentale.

Con questo servizio aiutiamo il cliente sia nella scelta del prodotto, sia nel processo di spedizione. Nel nostro sito inoltre potrai trovare guide e manuali online oltre che video dimostrativi; se tutto questo non ti è sufficiente il nostro team è sempre pronto ad aiutarti in ogni tua esigenza.

Chiamaci per per qualsiasi informazione al numero +39 049 9000348

Satisfied or refunded
Guaranteed product

The industry standard for speaker connections offer extremely reliable and solid connectors cables, with a reliable locking system. They are equipped with robust contacts with screw terminals, including a protection of intertwined threads that also offer welded terminations.

Features

  • Up to 40 to current RMS
  • Up to 50 A of audio signal, Duty Cycle by 50%
  • Only 3 parts, easy to assemble
  • High resistance materials - Long-lasting and reliable
  • "Quick Lock" closure system, easy and extremely precise
  • Improved locking system
  • Stop-Cable type Type for cables from 7-14.5 mm in diameter
  • Possibility of color coding
  • Improved screw termination for maximum traction force-out
  • Integrated design guarantees "Made by Neutrik®"

Technical specifications

  • Connection type: Speakon
  • Genre: Female
  • L159l
  • Contact resistance: <2 MO (Inner) (After Lifetime)
  • Dielectric Strength: 4 KVDC (Peak)
  • Insulation resistance:> 1 Gohm (after the dampheat)
  • Current voltage for contact: 40 to RMS Continuous; 40 A Audiosignal, Duty Cycle 50%
  • Rated voltage: 250 V (insulation) cable O.D.: 7 - 14.5 mm
  • Cable retention: = 220 N (Subject to cable O.D. and material)
  • Duration:> 5000 coupling cycles
  • Wiresize: 4 mm² / 6 mm² (Screw Type Terminals / Soldering)
  • Wiresize: 12 AWG / 10 AWG
  • Wiring: Screw or weld clamps
  • Locking device: Quick Lock
  • Contact plating: 4 μm AG
  • Contacts: brass (cuzn39pb3)
  • INSERT: PBTP 20% gr
