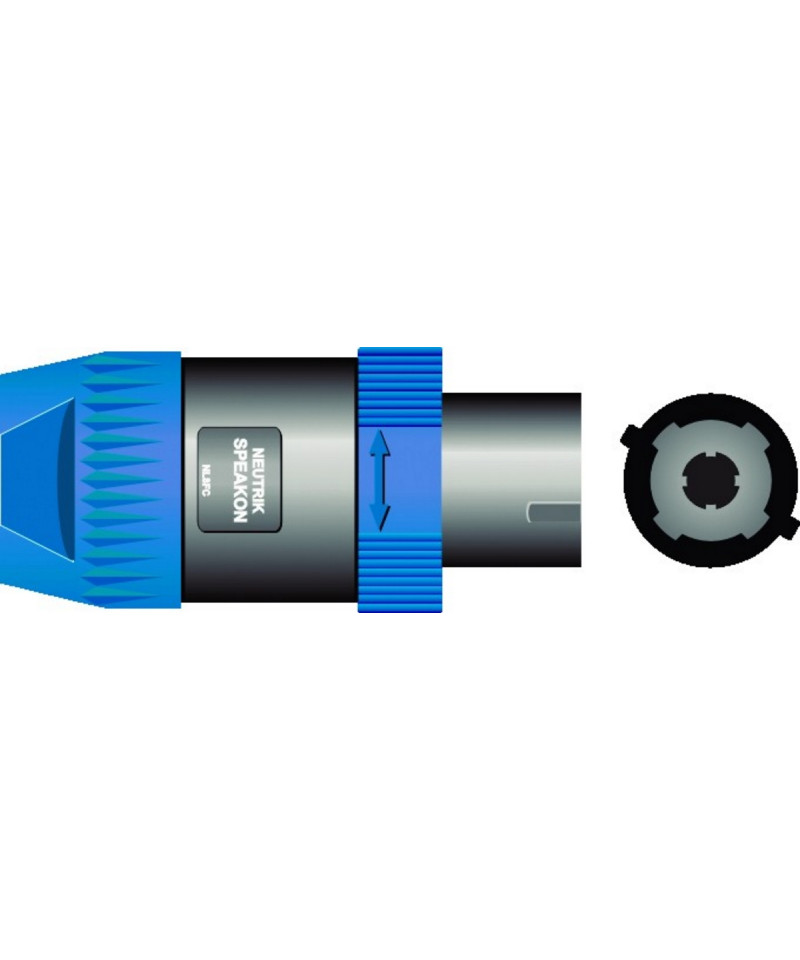

Connector NEUTRIK Speakon NL8FC
Available in store and online
G294G
New
Available
They represent the industry standard for connecting speakers and offer extremely reliable and solid connectors, with a secure locking system. They are equipped with robust contacts both with screw terminals with protection against intertwined threads, and with welded terminations.
Features
- Up to 30 to current RMS
- Reliable and robust, easy and fast to assemble
- Cable locking system of diameters between 8 and 20 mm
- Precise and reliable screwed screwed closure system "Quick Lock"
- Shell and reinforced glass fiber inserts for maximum duration
- Functional design for easy use
- Press system-Neutrik spindle type cable
- Brand with neutrik hologram
Technical specifications
- Connection type: Speakon
- Genre: Female
- G294g
- Contact resistance: = 3 Mohm (Inner) (After Lifetime)
- Dielectric Strength: 4 KVDC (Peak)
- Insulation resistance:> 1 Gohm (after the dampheat)
- Current voltage for contact: 30 to RMS Continuous; 40 A Audiosignal, Duty Cycle 50%
- Rated voltage: 250 V (insulation) cable O.D.: 8 - 20 mm
- Cable retention: = 220 N (Subject to cable O.D. and material)
- Duration:> 5000 coupling cycles
- Wiresize4 mm²
- Wiresize: 12 AWG
- Wiring: Screw or weld clamps
- Locking device: Quick Lock (Latch)
- Contact plating: 4 μm AG
- Contacts: brass (cuzn39pb3)
- INSERT: PBTP 20% gr
