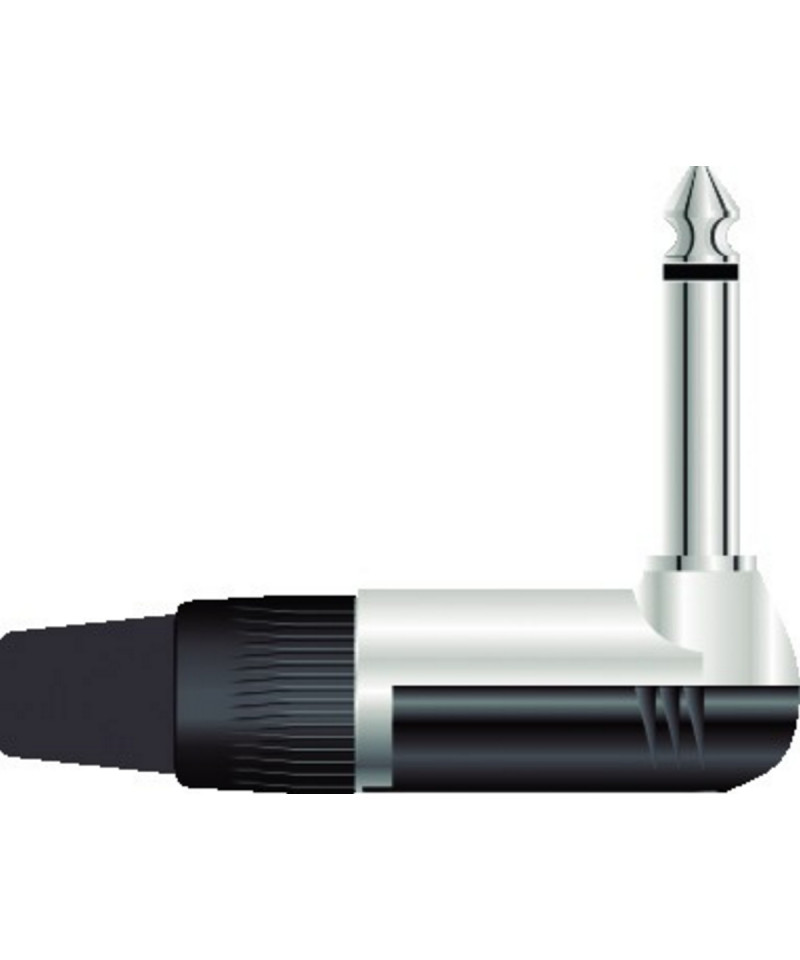

Pipe connector NEUTRIK NP2RCS 6.3mm 2Pin Mono

Pipe connector NEUTRIK NP2RCS 6.3mm 2Pin Mono

Pipe connector NEUTRIK NP2RCS 6.3mm 2Pin Mono
Disponibile solo online
G262G
New
Available

Order it before 12:30 on Monday and receive it between on 12/11/25 and 12/12/25 with Corriere Espresso. ESTIMATED DATE.

€7.00 -€1.78
€5.22
Tax included
Trade in your used
Did you find a lower price?

Hai trovato un prezzo più basso?

Contattaci compilando il form sottostante!

Inserisci il link del sito dove hai trovato il prodotto ad un prezzo più basso

Have questions? Ask the expert.

CHIEDI ALL'ESPERTO

Il contatto con il cliente per Noi è fondamentale.

Con questo servizio aiutiamo il cliente sia nella scelta del prodotto, sia nel processo di spedizione. Nel nostro sito inoltre potrai trovare guide e manuali online oltre che video dimostrativi; se tutto questo non ti è sufficiente il nostro team è sempre pronto ad aiutarti in ogni tua esigenza.

Chiamaci per per qualsiasi informazione al numero +39 049 9000348

Satisfied or refunded
Guaranteed product

This series of very resisted professional audio connectors is characterized by the design equipped with the exclusive multi-thin neutrik cable locking system. The thin shell with a width of 14.5 mm encounters the latest market requirements (15.88mm pitch socket). Tip contact, consisting of a unique piece - rivet - Obtained with high precision production technologies, it makes it unique and avoids any breaks or loss of the tip itself inside the grip. The X series covers all the most common professional audio applications such as guitar cables, audio cables, stage whips, layout cables, amplifiers and mixing benches.

Features

  • 6.3 mm jack connector, 90 ° extra slim angle
  • Sturdy die-cast shell with an elegant design
  • Widely reliable cable retention system
  • Functional design for better ease of use
  • Contacts in a single block Precision worked - avoid the detachment of the tip inside the grip

Technical specifications

  • Connection type: 90 ° plug
  • Genre: Male
  • G262g
  • Dielectric rigidity: 1 kvdc
  • Insulation resistance:> 2 GoHM
  • Nominal contact current: depends on the coupling connector
  • Rated voltage: 50 V
  • Cable diameter: 4 - 7 mmDurata:> 1000 cycles
  • Wiring: Contact contacts
  • Contact plating: 2 micron ni (up)
  • Contacts: brass
  • Insert: Polyamide (PA 6.6 30% gr)
  • Shell: die-cast zinc
  • Shell plating: nickel
  • Cable gland: Acetalica (POM)
  • Temperature range: -20 ° C at +65 ° C
