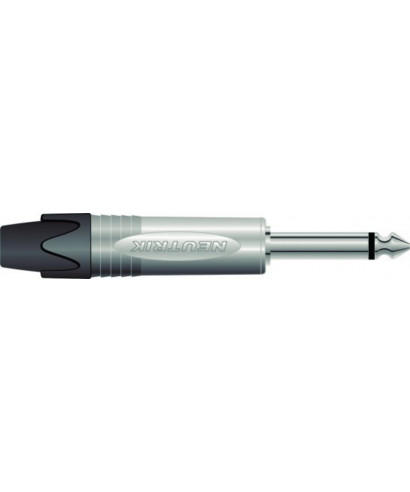

Connector NEUTRIK NP2X 6.3mm 2pin mono
Disponibile solo online
G261G
New
Available
Order it before 12:30 of today and receive it between on 12/24/25 and 12/25/25 with Corriere Espresso. ESTIMATED DATE.
This series of very resisted professional audio connectors is characterized by the design equipped with the exclusive multi-thin neutrik cable locking system. The thin shell with a width of 14.5 mm encounters the latest market requirements (15.88mm pitch socket). Tip contact, consisting of a unique piece - rivet - Obtained with high precision production technologies, it makes it unique and avoids any breaks or loss of the tip itself inside the grip. The X series covers all the most common professional audio applications such as guitar cables, audio cables, stage whips, layout cables, amplifiers and mixing benches.
Features
- Extra slim connector from 1/ 4 "For maximum compactness
- Sturdy die-cast shell with an elegant design
- Widely reliable cable retention system
- Functional design for better ease of use
- Contacts in a single block Precision worked - avoid the detachment of the tip inside the grip
Technical specifications
- Connection type: Plug
- Genre: Male
- G261g
- Dielectric rigidity: 1 kvdc
- Insulation resistance:> 2 GoHM
- Nominal contact current: depends on the coupling connector
- Rated voltage: 50 V
- Cable diameter: 4 - 7 mmDurata:> 1000 cycles
- Wiring: Contact contacts
- Contact plating: 2 micron ni (up)
- Contacts: brass
- Insert: Polyamide (PA 6.6 30% gr)
- Shell: die-cast zinc
- Shell plating: nickel
- Cable gland: Acetalica (POM)
- Temperature range: -20 ° C at +65 ° C
