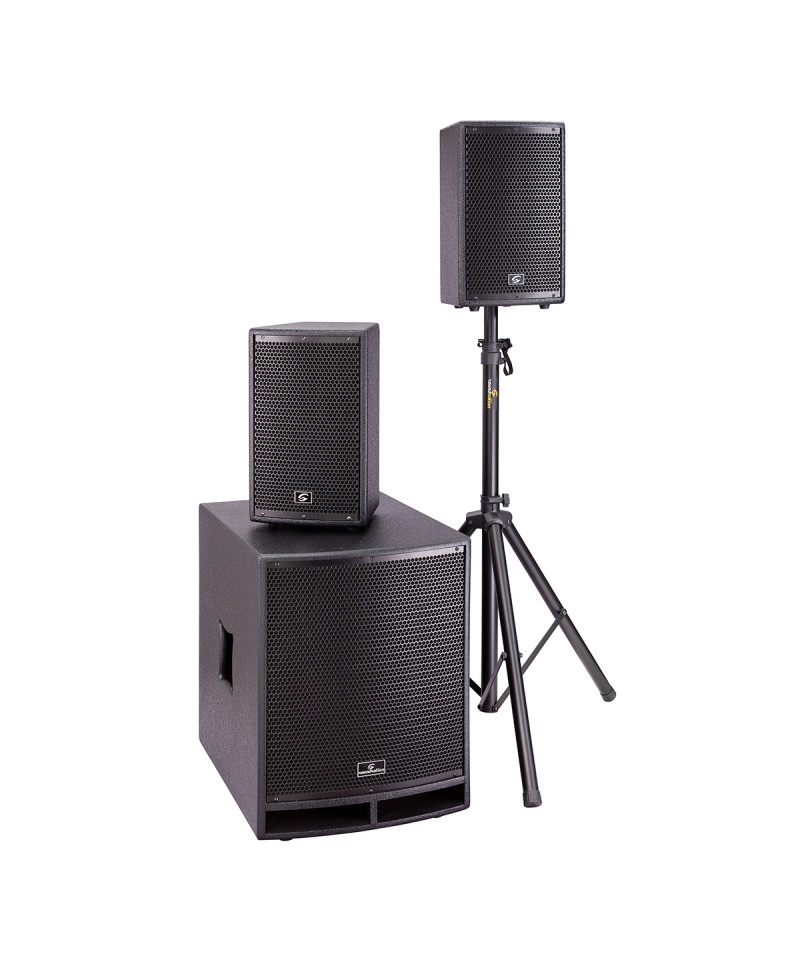

SOUNDSATION Presents PA 2 system.1 SOUNDSATION LiveMaker 1521 Mix, 2x8 "+15" sub


The audio system 2.1 LiveMaker 1521 Mix is designed as a portable audio system for both live and educational purposes. It integrates an 8-channel mixer with digital and bluetooth effect, 3 class amplifiers-D with switching power supply - For a total of 1500W peak, a 15 and two satellite subwoofer with woofers from 8 and drivers from 1.4. It really represents the ideal answer to those who need a sophisticated audio system but has space problems, moving with a non-very big means but has a number of audio sources to be amplified. Not only that, but it also needs a professional reverberation for singers and, alone, wants to connect your mobile phone, tablet or computer to play its playlists. The divers that the two tops are equipped with a 36mm hole for pole or stand. The reinforced MDF cabinets are robust, light and coated with anti paint-Scratch to make the system resistant to the stage penalties.

Features

• Compact PA system 2.1 with 2 passive satellites and 1 Active subwoofer

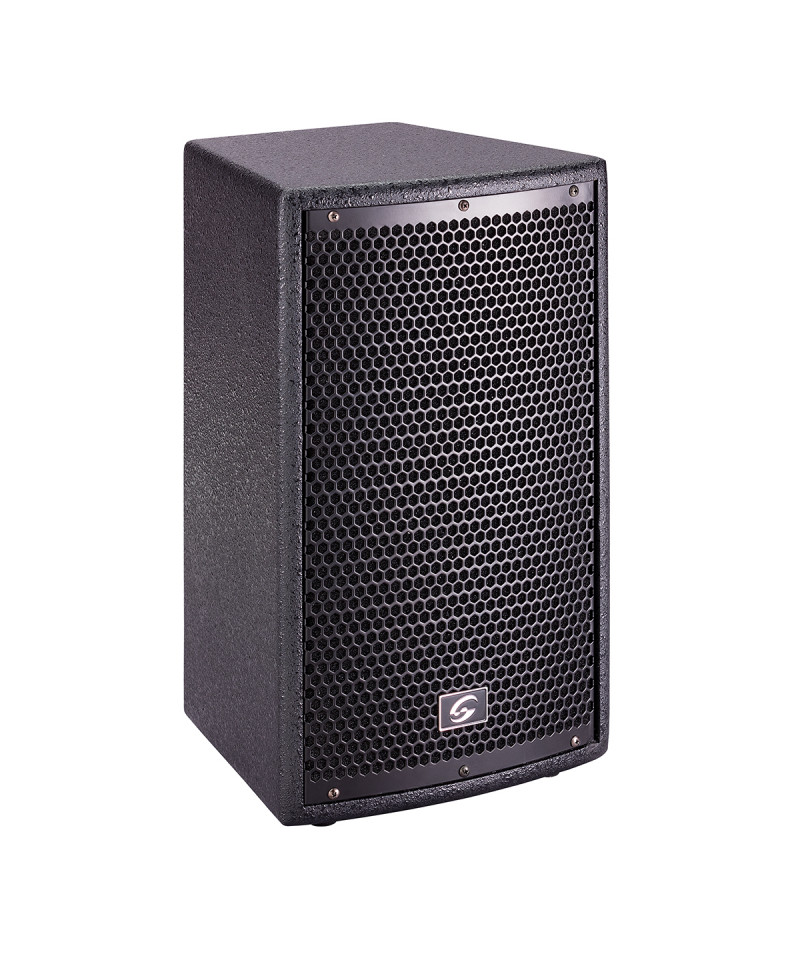

• 2 Tops Passive with reinforced MDF cabinet with 8 and driver woofer from 1.44 with silk dome

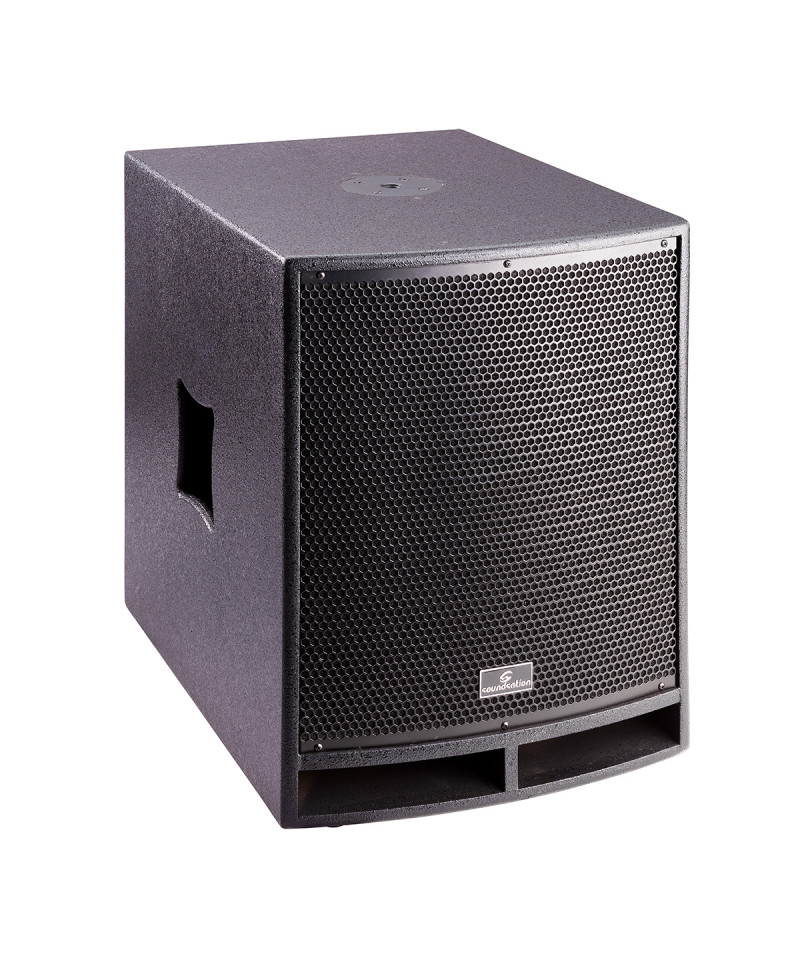

• Active Bass Subwoofer-Reflex with reinforced MDF cabinet and 15 woofer for a sound pressure of 128DB

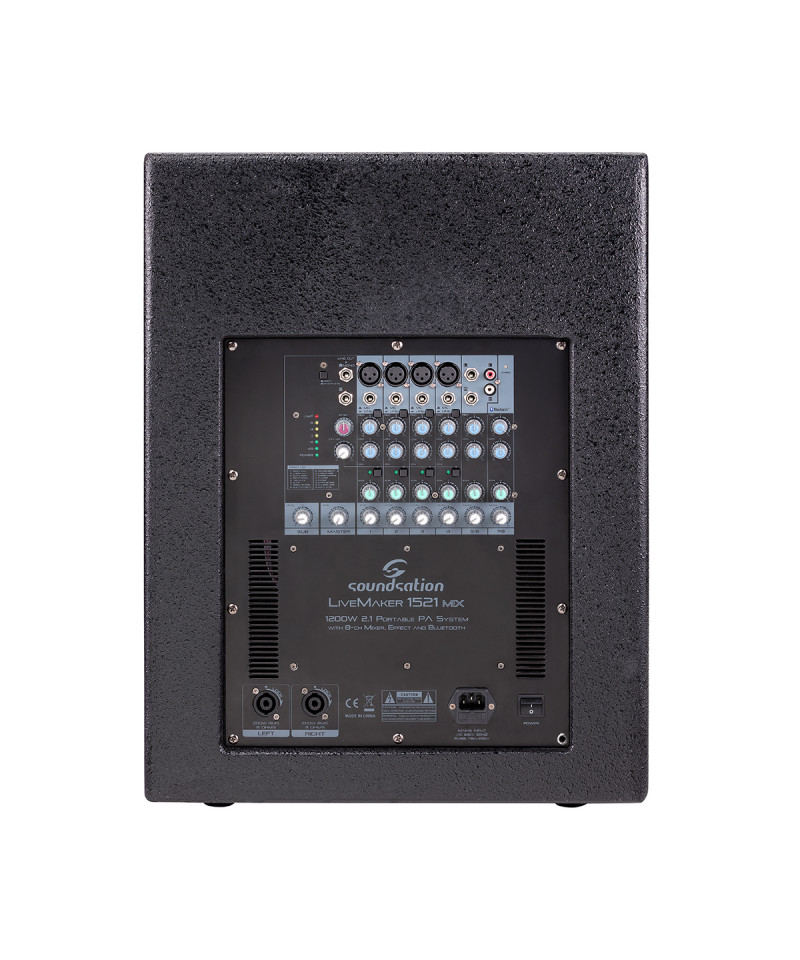

• Mixer 8-Channels with 4 MIC inputs, 1 Stereo line input, 1 Bluetooth stereo input
• EQ 2-Bands, 16 digital effects (available on MICs inputs)
• Classic amplifier-D from 1500W peak with switching power supply
• Balanced MIC Inputs and Balanced Outputs
• Hole for pole or stable tripod on the sub and under the two satellites
• 2 handles collected on the sub (one on each side)
• 1 Handle collected behind each top

Technical specifications

• Max SPL system: 129 dB
• Frequency response system: 40 Hz-20 kHz
• L935l
• Satellite frequency response: 80 Hz-20 kHz
• Satellite sensitivity (1W @ 1M): 97 dB
• Max. SPL (@ 1m) satellites: 122 dB
• Nominal satellite impedance: 8 ohms

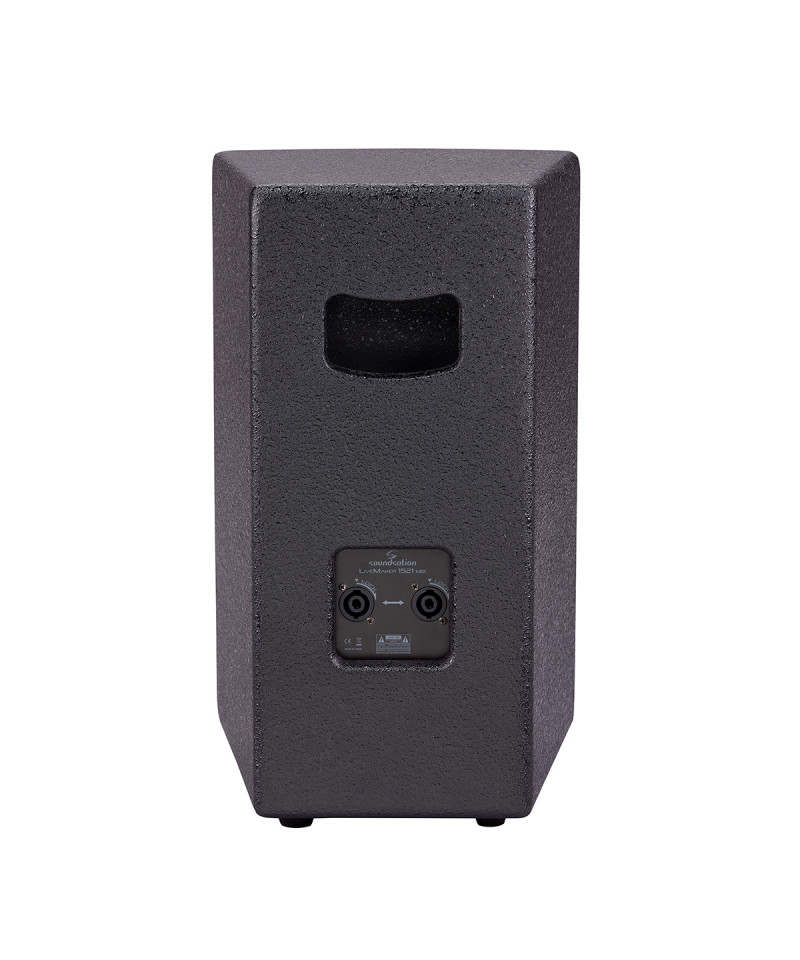

• Satellite inputs: 2 x SpeakonLF Connectors Satellites: 1 X 8 with 2 coil
• HF satellites: 1 x 1.4 "Driver with titanium dome
• Satellite Crossover Frequency: 3 kHz, 12 db / octave

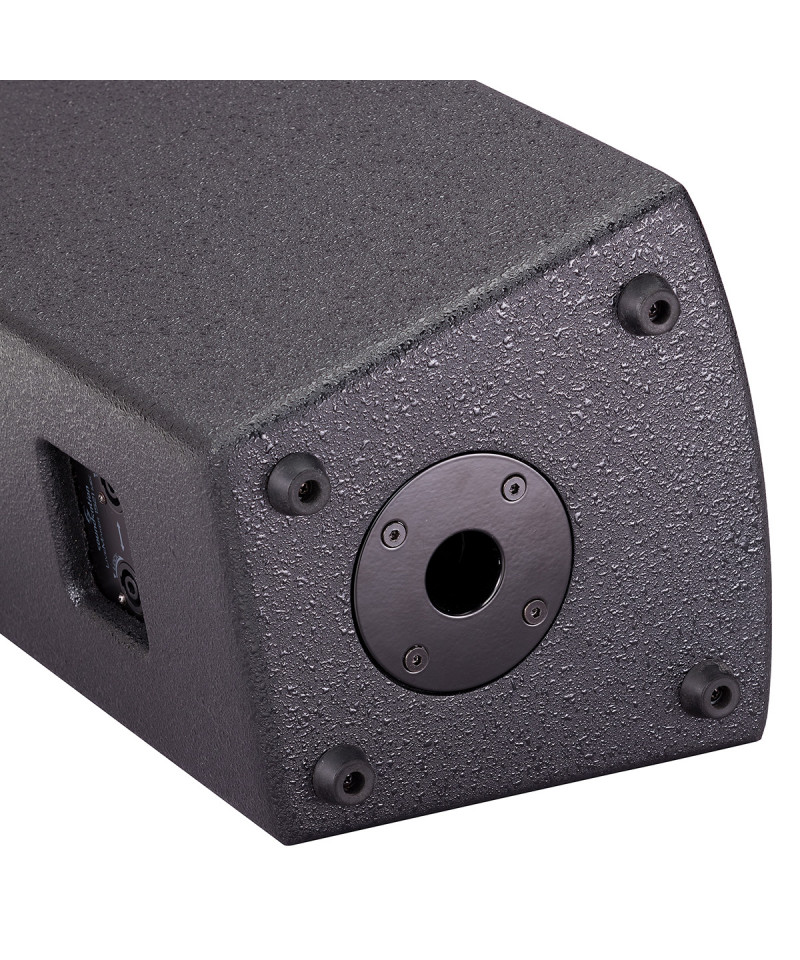

• Satellite pole hole: Ø36mm
• Satellite dimensions (LXAXP): 614x510x334 mm (packaging 2pcs); 270x450x245 mm (single diffuser)
• Satellite Weight: 9.2kg net; 20kg gross (carton 2pcs)
• Inputs: MIC XLR, Jack from 6.3mmRCA
• EQ control: Low: + /-15db; HIGH: + /-15db
• Bluetooth connection distance:> 6m
• Subwoofer amplifier: 1 X 500W RMS (1000W peak) @ 4ohms
