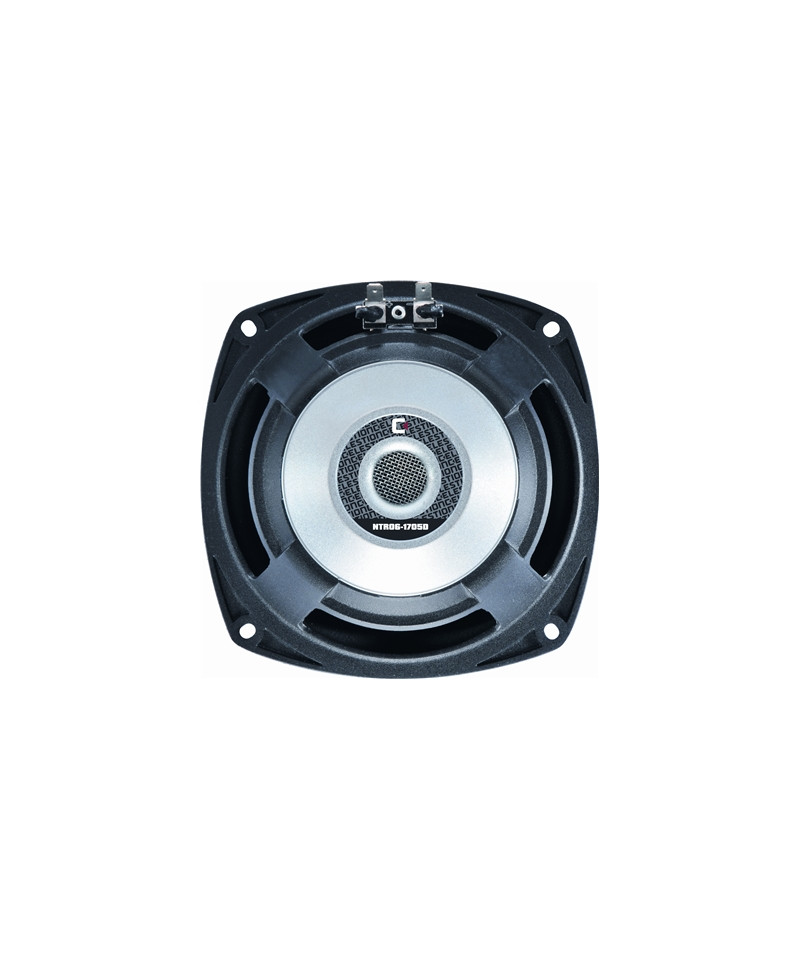

Celestion - Ntr06-1705D 150W 8ohm - LF Die Cast Chassis Loudspeaker - Neodymium

Features

- 6.5 Neodymium magnet woofer providing 150wrms (standard AES) Power Handling and 90db Sensitivity

- 1.75 "High temperature copper clad aluminum voice coil

- Optimized Flux Distribution in Magnet Assembly Provides Low Harmonic Distortion

- Half-Roll Elastomer Surround Provides Greater Excursion and Improved Modal Distribution

- Intelligent Heat Management in Both Chassis and Magnet Assembly Design Offers Reduced Thermal Compression

- Copper Sleeved Pole Reduces Inductive Rise for Improved HF Performance

- Space Efficient Chassis Profile

General specifications

NOMINAL DIAMETER: 165mm / 6.5IN

Power rating (1): 150WRMS

Nominal Impedance: 8ohm

Sensitivity (2): 90DB

Frequency Range: 70-7000hz

Voice Coil Diameter: 45mm /1.75in

Chassis Type: cast aluminum

Magnet Type: Neodymium

Coil Material: Copper Clad Aluminum

Former Material: Polyimide

CONE Material: Kevlar Loaded Paper

Surround Material: Elastomer

Suspension: Single

Xmax (3): 4.5mm/0.18in

Gap Depth: 6mm / 0.24in

Voice Coil Winding Width: 15mm / 0.63in

Small Signal Parameters4

Of: 0.13m/5.12in

FS: 59.8Hz

MMS: 17.52g /0.618oz

QMS: 8.240

QES: 0.446

MMD: 16.66g /0.588oz

QTS: 0.423

Re: 5.22ohm

VAS: 10.07LT / 0.38FT3

Bi: 8.79Tm

CMS: 0.404mm/N

RMS: 0.799kg / s

Le (at 1khz): 0.17mH

Mounting Information

Overall Diameter: max 189mm / 7.44in - Min 162mm / 6.38in

Overall Depth: 87mm / 3.43in

Cut-Out diameter: 150mm / 5.9in

Mounting Slot Dimensions: 6.5mm x 5.5mm/0.26in x 0.22in

Number of Mounting Slots: 4

Mounting PCD Range Slot: 173.5mm/6.83in

Unit Weight: 0.95kg / 2.09lb

Notes

(1) Tested for Two Hours Using a Continuous, band-Limited Pink Noise Signal As for AES Standard. Power Calculated on Minimum Impedance. Loudspeaker Tested in Free Air.

(2) Measured on Axis AT 1W, 1M in 2pi Anechoic Environment.

(3) xmax derived from: (voice coil winding width-Gap Depth) / 2.

(4) Small Signal Parameters Measured After Unit Subjected to pre-Conditioning signal.
