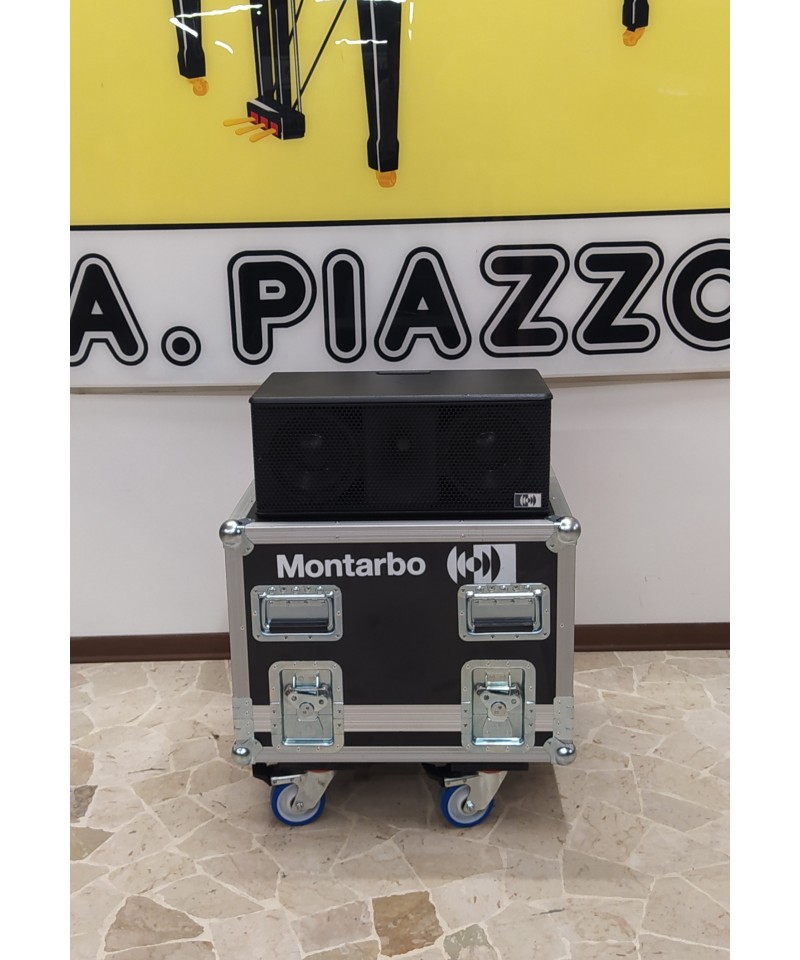

MONTARBO - E616M MK2 acoustic case

New look and possibility of hanging distinguish the E616MK2 series from its origin.
Without packaging, 12 month warranty
E616M MK2: stage monitor and passive diffuser Rigging with aesthetics suitable for installations.
It is the first Montarbo series to present the configuration of Appolito, which offers high efficiency and directivity.
It perfectly responds to the needs of extreme quality and fidelity necessary for theaters such as infill and frontfill. Its great energy reserve, thanks to the generous dimensions of the coils of the components used, allows an extended use even to modern music, in cases where the artist needs a very low monitor.
The wonderful voice that can only reproduce 6 "woofers is conjugated to the most powerful and powerful driver existing today, with a throat from 1".
A combination never reached a monitor and today is normally used only in the speakers for Line Array. Once again Montarbo wants to serve the artists of each where with an object to the top, something that was still not present on the market and that until very little time ago it was not even possible to imagine. The particular geometric disposition of the woofers with respect to the driver, loaded on a particular trumpet Tractrix, and the Cross filter-Very accurate over, allow a control of directivity and intelligibility that are generally possible only with large trumpets.
The sweetness of a short trumpet and a wide dispersion, the warmth and speed of a small woofer but of great power and control, transform this monitor into a box at the foot of the artist, which contains and gives fidelity in proposing what It must only be a faithful reproduction of a moment of art. Another instrument from music without compromise in Montarbo history.
Technical specifications
| Acoustic data | |
| Frequency Response [-10 dB] | |
| Frequency Response [-6 dB] | 80 Hz - 20 kHz |
| Max SPL | 126 dB |
| Hf | Driver |
| HF Voice Coil | Driver 2.5 "neodymium |
| HF Type | Trumpet with gorge from 1" |
| Dispersion (HXV) | 80 x 60 |
| Crossover Frequency (Passive) | 1400 Hz |
| Lf | 2 x 6 " |
| LF Voice coil | 2.5 "Neodymium |
| LF Type | Reflex |
| Program Power Rating | 650 Watt AES |
| Impedance | 8 ohm |
| Input section | |
| Signal input | Speakon |
| Signal out | Speakon |
| Mechanical | |
| Housing | |
| Flyable | It |
| Handles | It |
| Pole Mount | It |
| Width | 510 mm |
| Height | 210 mm |
| Depth | 270 mm |
| Weight | 12.3 kg |
