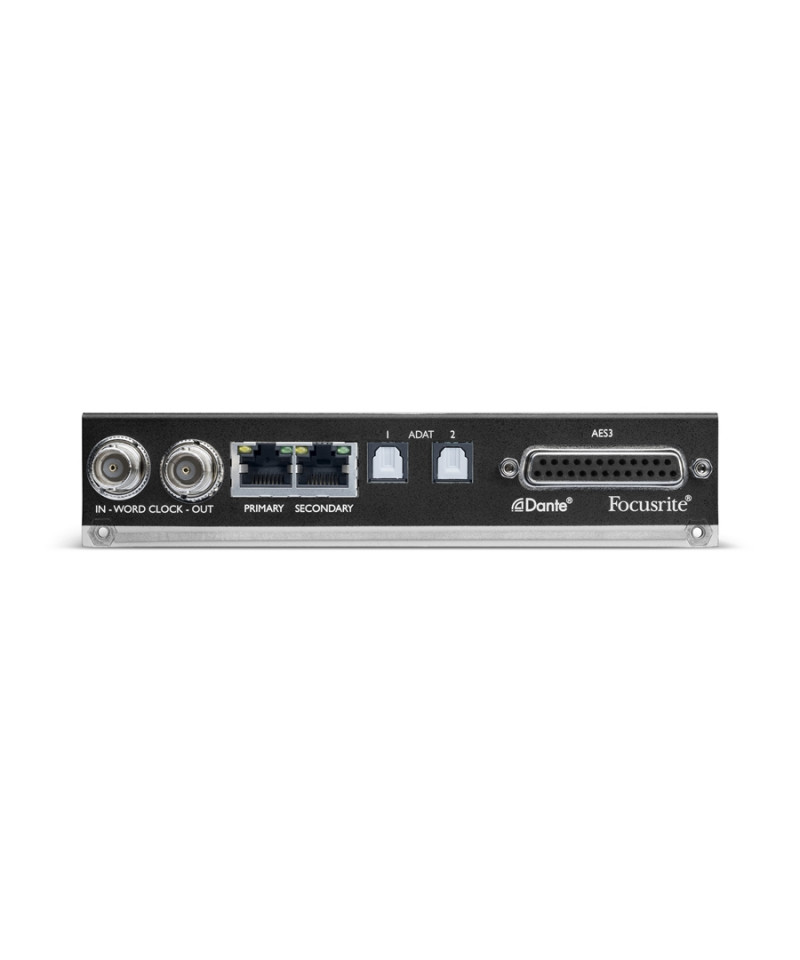

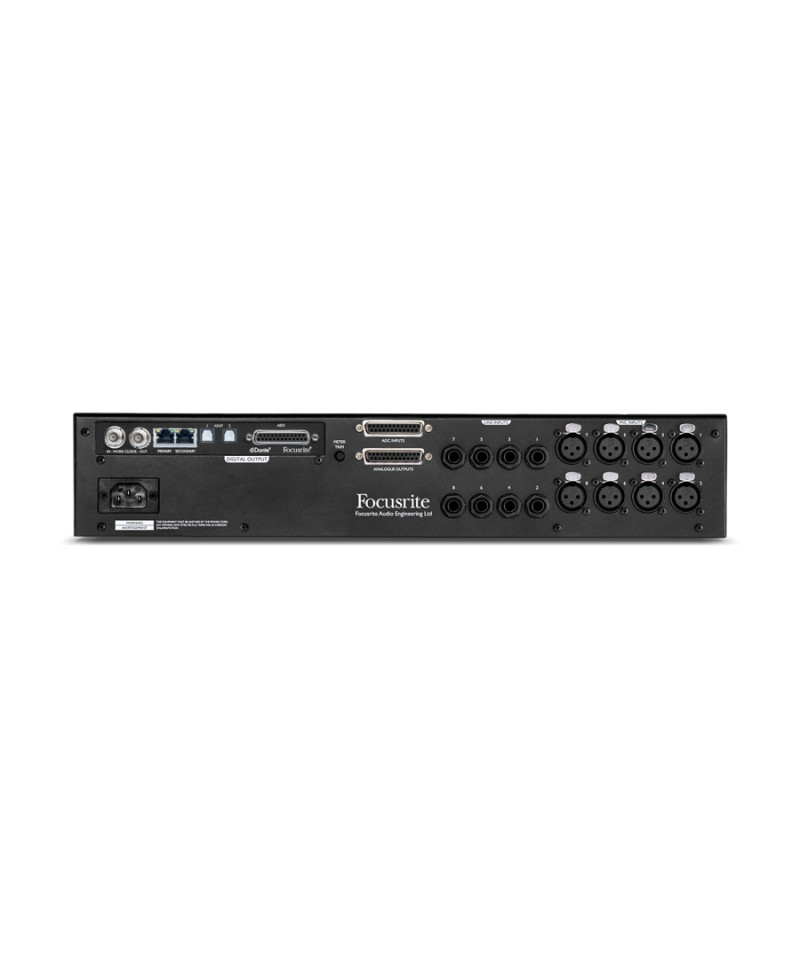

ISA ADN8 An optional card for the PreamPlifiers FocusRite ISA 428 MKII and ISA 828 MKII dedicated to analogue conversion-Digital of eight channels in Dante, AES3 and ADAT sizes. The card operates at a maximum resolution of 24-bits / 192khz.

ISA ADN8 Offers connections Dante Primary and secondary on Ethernet ports (RJ45) for redundancy and automatic switchover in case of problems, unusual on DB25 connector (PIN-Out Standard AES59) for the format Aes3, and a pair of connections Toslink illet Adat (8 channels at 96khz, 4 channels at 192khz). Two BNC connectors Dedicated and allusion for synchronization are respectively dedicated Word Clock When it inserts it inside digital audio peripherals chains. The SYNC to the Dante network or synchronization of other tools external to the Dante network are also supported. The Dante outputs present in the card ISA ADN8 allow the network connection of the preamplifiers ISA 428 MKII and ISA 828 MKII To all devices Focusrite of the RedNet series and the red interfaces, or any other equipped audio tool of Dante on the market. Metering and settings will be editable in the software Rednet Control, while the routing configuration will be easily manageable in the software Dante Controller.

Like all the products of the Focusrite catalog, even LISA ADN 8 enjoy 3 year warranty By the Supplier: synonym of tranquillit for the user and a confirmation of the high production standards adopted by the English company, a world leader in the audio field.

By purchasing analog conversion card-Digital for preamplifiers ISA 428 MKII and ISA 828 MKII Focusrite ISA ADN8 You will get (via download, upon registration on the manufacturer's website) the plug-in Brainworx bx_console focusrite that you make available to your favorite DAW software - In Windows and MacOS environments - the Channel Strip Virtual that emulates historians and scopes modules Focusrite ISA 110(equalizer) and ISA 130 (dynamic processor).

• Optional card for ISA 428 MKII and ISA 828 MKII
• 8 conversion channels from analog to digital
• Analog conversion-digital up to 192khz, 24-bit
• RJ45 Dante Primary and Secondary connectors:
• REDUCTION AND AUTO SWITCHOVER
• 2 Toslink Adat connections (8 channels at 96khz, 4 channels at 192khz)
• 8 channels AES3 on DB25 connector (AES59)
• Word Clock In & Out on BNC Connectors
• Multiple digital synchronization:
• Sync to the Dante network or to other tools outside the Dante network
• Rednet Control software for management and configuration
• Dante Controller Software for Dante Routing
• 3 year warranty focusrite
• Free plug-in Brainworx bx_console focusrite
