ALTO PROFESSIONALpresentsLive 1604

This series of high professional audio mixers called Live is distinguished by the presence on the microphone channels of the new preamplifiers from the self-noise self-denominated and importantheadroom called DNA. These pre are inserted in a signal path optimized in order to preserve the sound quality. A good headroom translates into more clean mixes, thanks to the containment of signal distortions, for a substantially more powerful sound, however faithful to us receiving input.

The first microphone channels of the live by series mixers High professional They are equipped with a particular compressor that operates on the individual Channel Strips by means of the combined control of more parameters from a single rotary potentiometer. Of these compressors we find two in the Live 802 model (channels 1 and 2), four in Live 1202 (channels from 1 A 4), you are in 1604 and 8 in the leading model of the Live series, 2404.

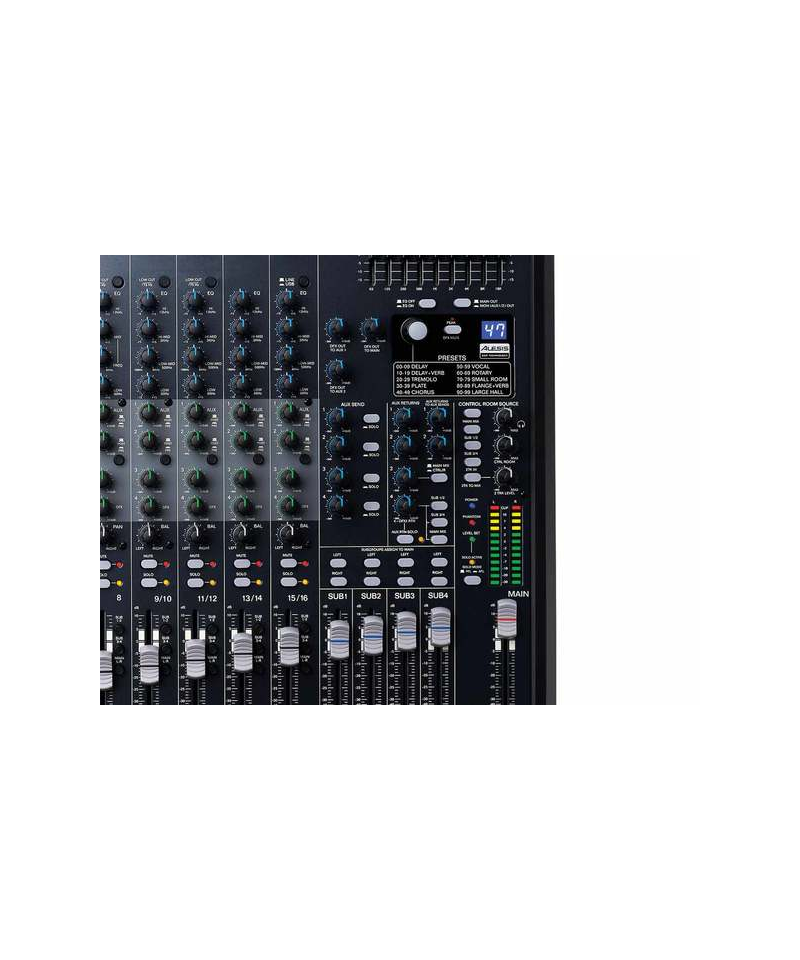

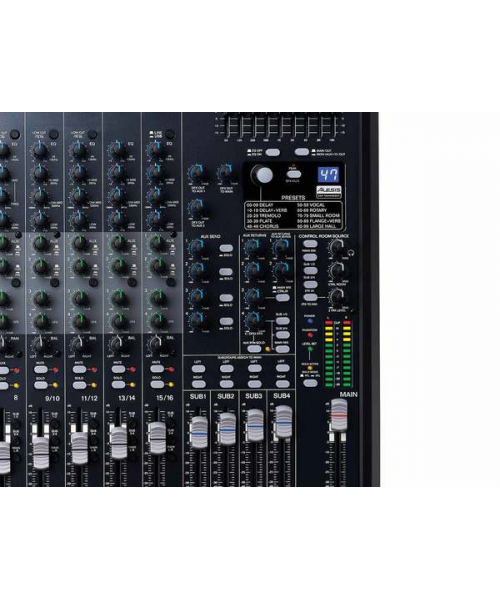

Other plus of this multi-series mixer-Integrated effect designed by Alesis. This is a signal processor at 24-Bit with 100 DSP effects available among which user Potr selects the one applicable via delivery to the various mixer channels. In the Effect Equipment we will find various reverb algorithms, delay, flanger, Chorus, tremolo, etc. also available in the form of effects combinations (delay / reverb, for example) or pre-Settated by field of application (Vocal).

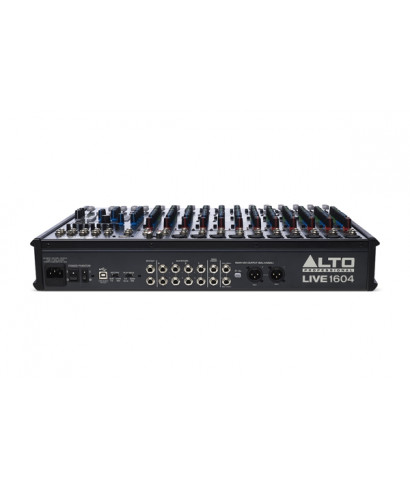

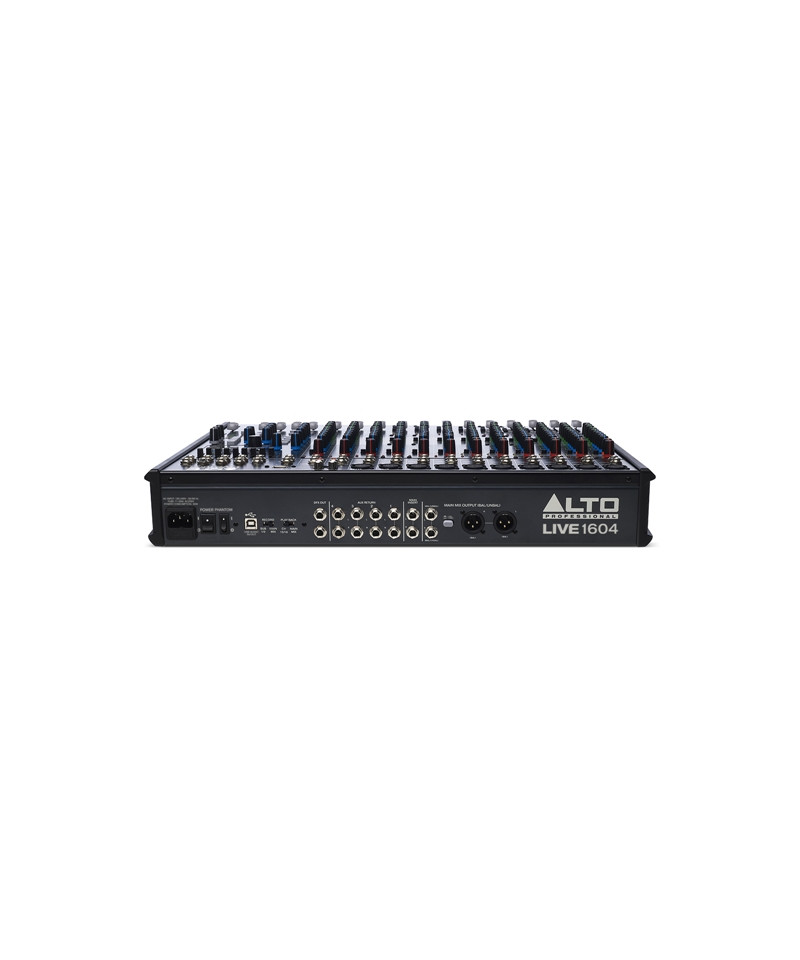

High Professional mixers stand out for the presence of a USB port that acts as Audio interface classy-Compliant for connecting to Windows PC and Apple MacOS and useful computer recording on computer recording of a 24 stereo audio channel-Bit (2 in / 2 out mono). By connecting these mixers via USB cable to your Mac or PC computer you will add an audio interface with units and a stereo input (Full Duplex), to record the signal coming out of the mixer directly into your favorite audio input. In Live 1604 and 2404 models thanks to two selectors in the back you can decide whether to send via USB to the computer the signal played by the main mix, or from the sub mixer of the mixer, as well as dirty computer release - This signal reproduced by your computer software and sent via USB to the mixer - Directly in the master channel, or to a channel (15/16 in model 1604, 23/24 in 2404) in which it can be tried as any other source by EQ, etc.

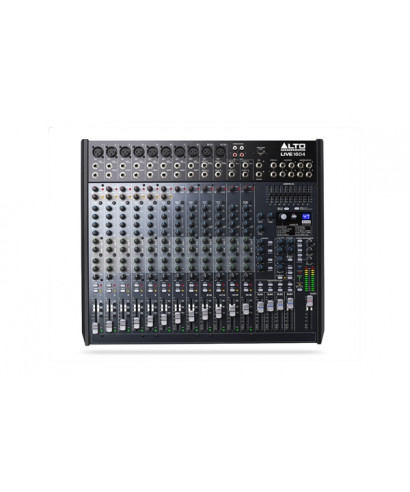

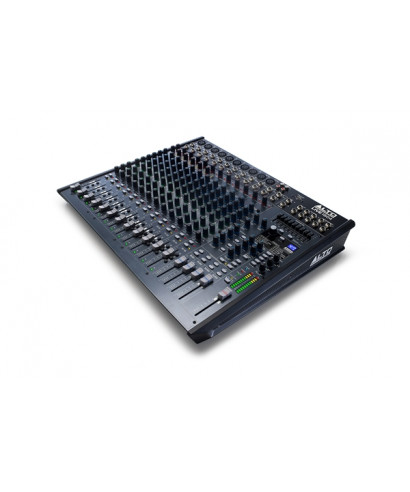

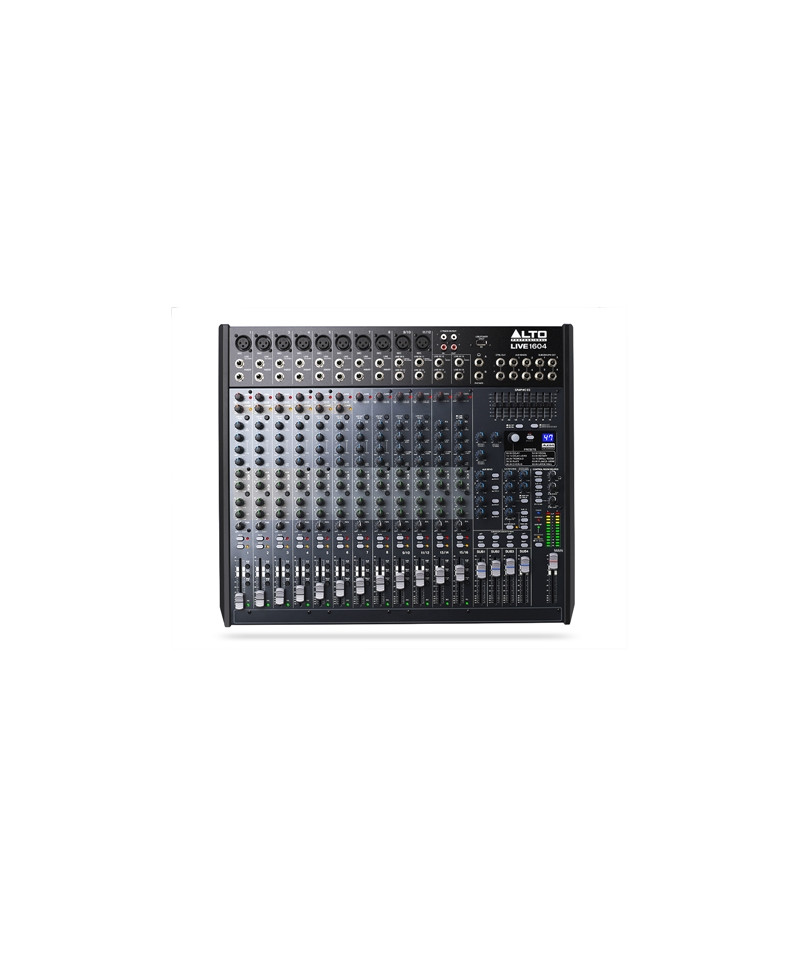

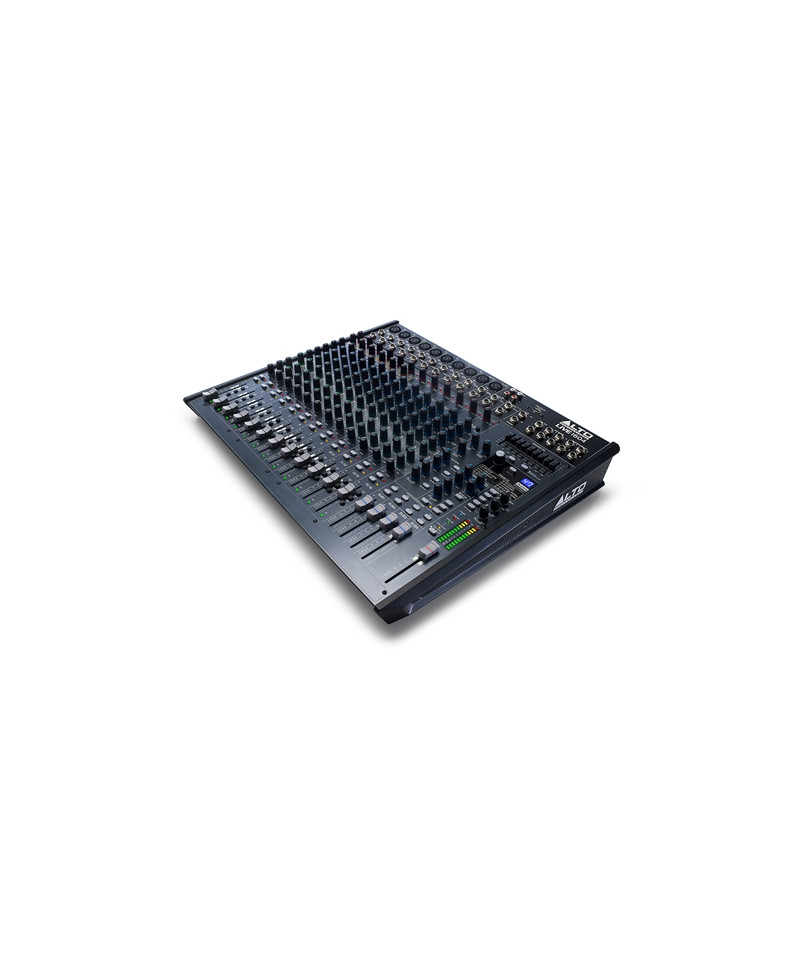

High Professional Live 1604: 12 channel audio mixer (8 mono / 4 stereo)

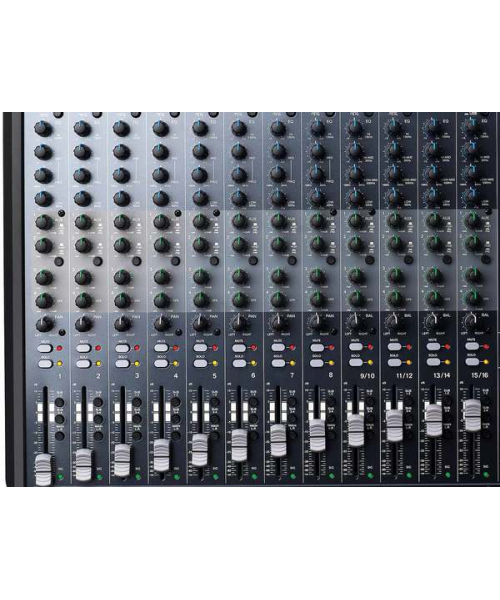

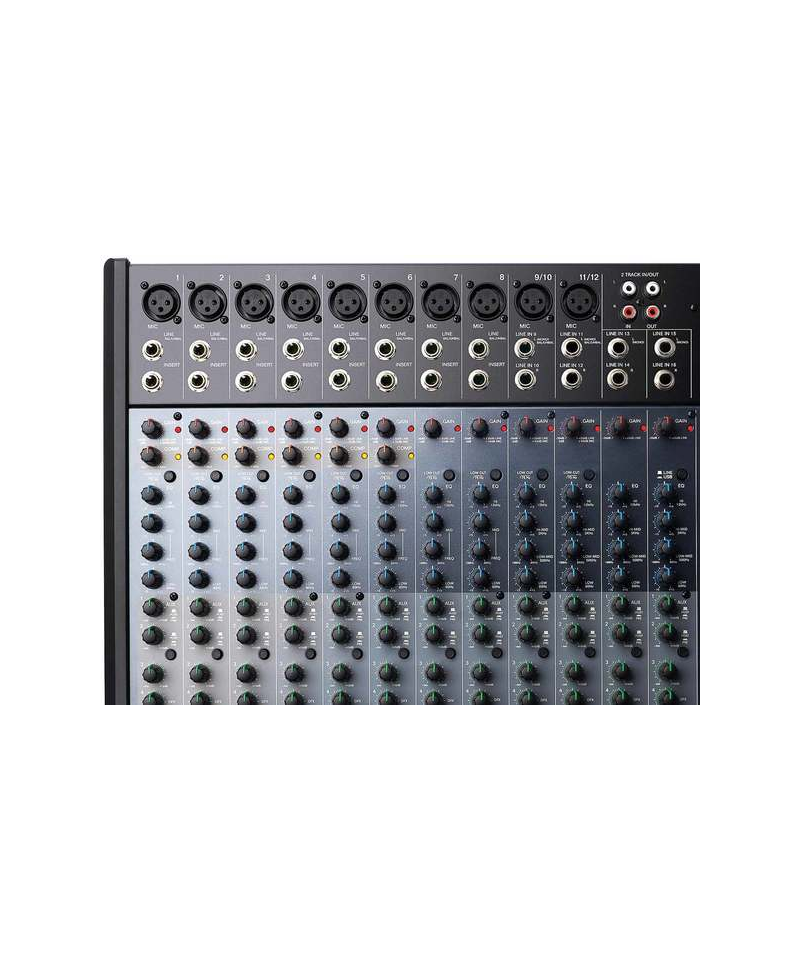

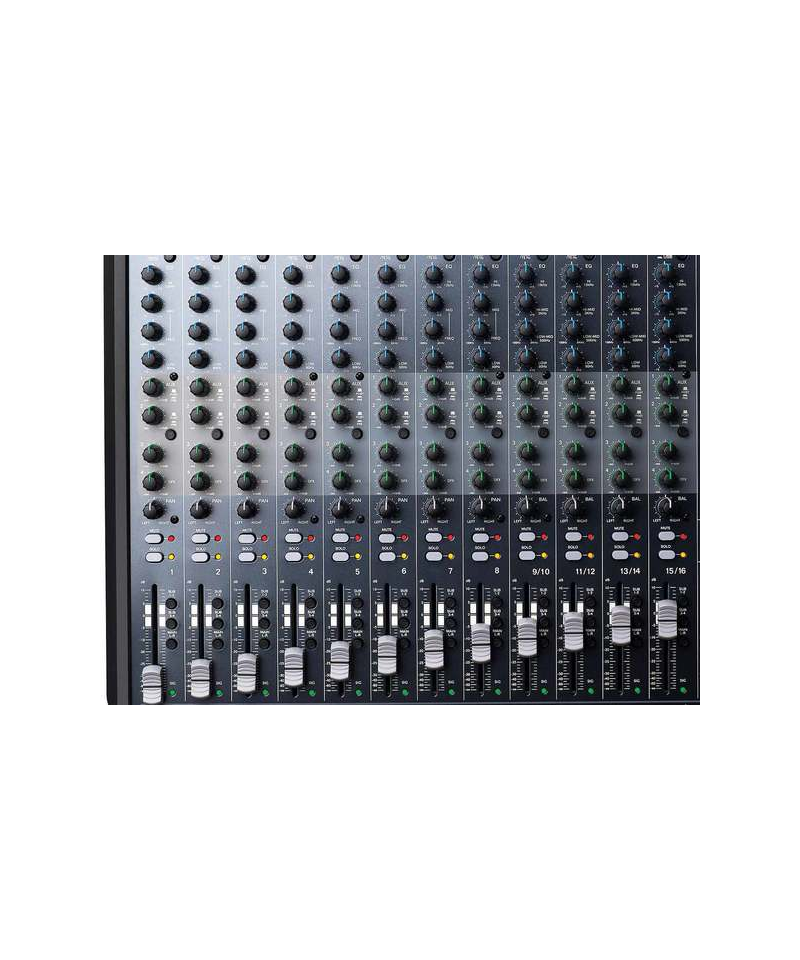

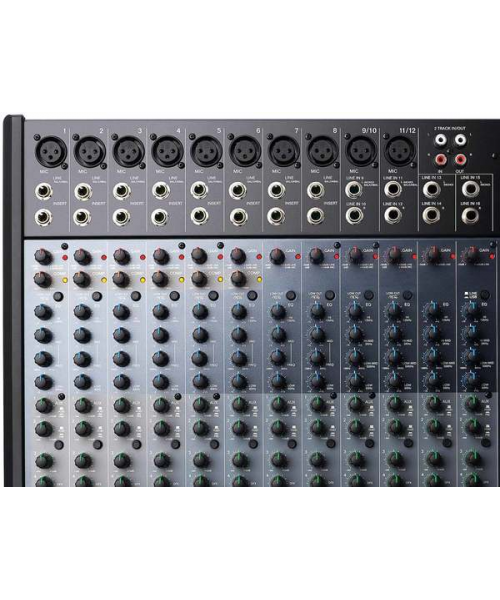

High Professional Live 1604 A 12-channel mixer, of which 8 mono with microphone and line XLR inputs on which we find the insert connection to connect signal or multi processors-External effects, in addition to an integrated individual compressor only on the first 6. 2 stereo channels (9/10 and 11/12) with jack (L and R) inputs by 1/ 4 can eventually be used as additional mic mono channels seen the presence of the microphone XLR connector. It closes with two other channels (13/14 and 15/16) equipped only of l / r jack from. The channel strips of each channel provide, in addition to the 6cm fader: gain control, high pass switch (only present XLR input), 3-band equalizer with medium sweep on mono and 4 bands (bass, medium bass, high and high medium) on stereo, pan and four mandates dedicated to auxiliary outputs (Aux Send) and multi-Integrated effect, and the mute and only buttons. On the first 6 channels the rotary control for the application of the compressor is present. For all sends, on the right of the mixer there is the respective rotary potentiometer for the return control. The mixer provides 4 sub-Groups (bus).

Features High Professional Live 1604

• 10 XLR inputs with DNA preamplification
• Intelligent compressor on the first 6 channels
• 3-band EQ with medium sweep
• 4 mandate aux on each channel (1 and 2 pre / post)
• 4 assignable independent buses
• 60mm fader, mute button, PFL / AFL only, LED
• 100 FX DSP by Alesis
• EQ graph of 9 bands on the master
• XLR and Jack balanced outputs from
• Control / Monitor output on Jack connectors from
• Headphone output with independent volume control
• RCA 2 Track stereo entry and output
• USB port with I / O stereo audio interface function
