ALTO PROFESSIONAL presents Live 1202

This high professional audio mixers called Live is distinguished by the presence of the new preamplifiers from the new preamplifiers from self-noise contained and from the important headroom named DNA ™. These pre are included in a signal path optimized in order to preserve sound quality. A good headroom translates into cleaner mixes, thanks to the containment of signal distortions, for a substantially more powerful sound, however faithful to what is received incoming.

The first microphone channels of the live by series mixers High professional They are equipped with a particular compressor that operates on the individual Channel Strips using combined control of multiple parameters from a single rotary potentiometer. Of these compressors we find two in the Live 802 model (channels 1 and 2), four in Live 1202 (channels from 1 A 4), you are in 1604 and 8 in the leading model of the Live series, 2404.

Another plus of this series of mixers is multi-Integrated effect designed by Alesis. This is a signal processor at 24-Bit with 100 DSP effects available including the user can select the one applicable via delivery to the various mixer channels. In the Effect Equipment we will find various reverb algorithms, delay, flanger, Chorus, tremolo, etc. also available in the form of effects combinations (delay / reverb, for example) or pre-Settati per scope (Vocal).

High Professional mixers stand out for the presence of a USB port that acts as Audio interface classy-Compliant for connecting to Windows PC and Apple MacOS and useful computer recording on computer recording of a 24 stereo audio channel-Bit (2 in / 2 out mono). By connecting these mixers via USB cable to your Mac or PC computer you will add an audio interface with an output and a stereo input (Full Duplex), to record the signal output from the mixer directly to your favorite audio software. In Live 1604 and 2404 models thanks to two selectors in the back you can decide whether to send via USB to your computer the signal reproduced by the MAIN MIX output, or from the sub mix of the mixer, as well as to address the computer output - ie the signal reproduced by your computer software and sent via USB to the mixer - Directly in the master channel, or to a channel (15/16 in model 1604, 23/24 in 2404) in which it can be tried as any other source by EQ, etc.

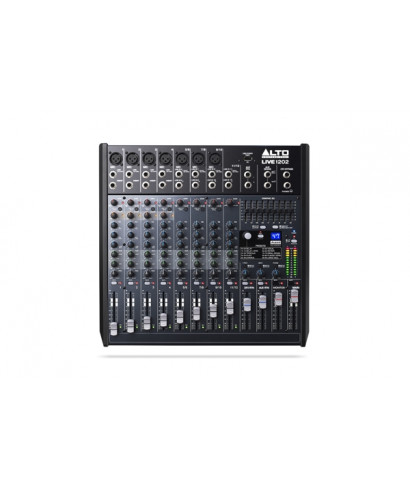

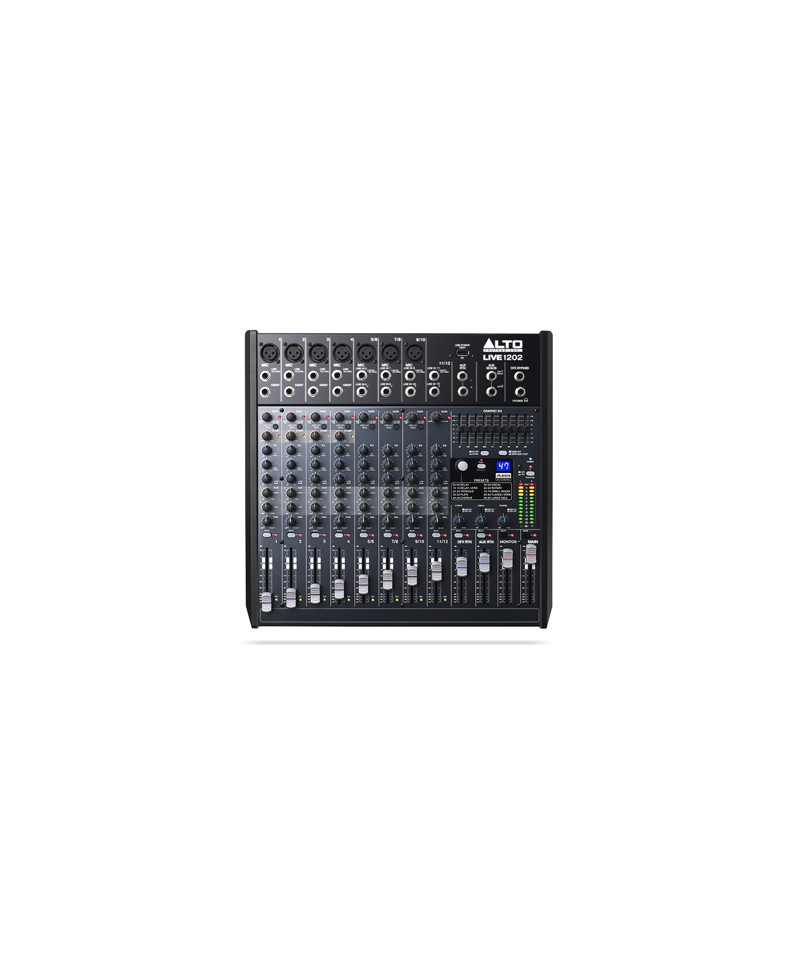

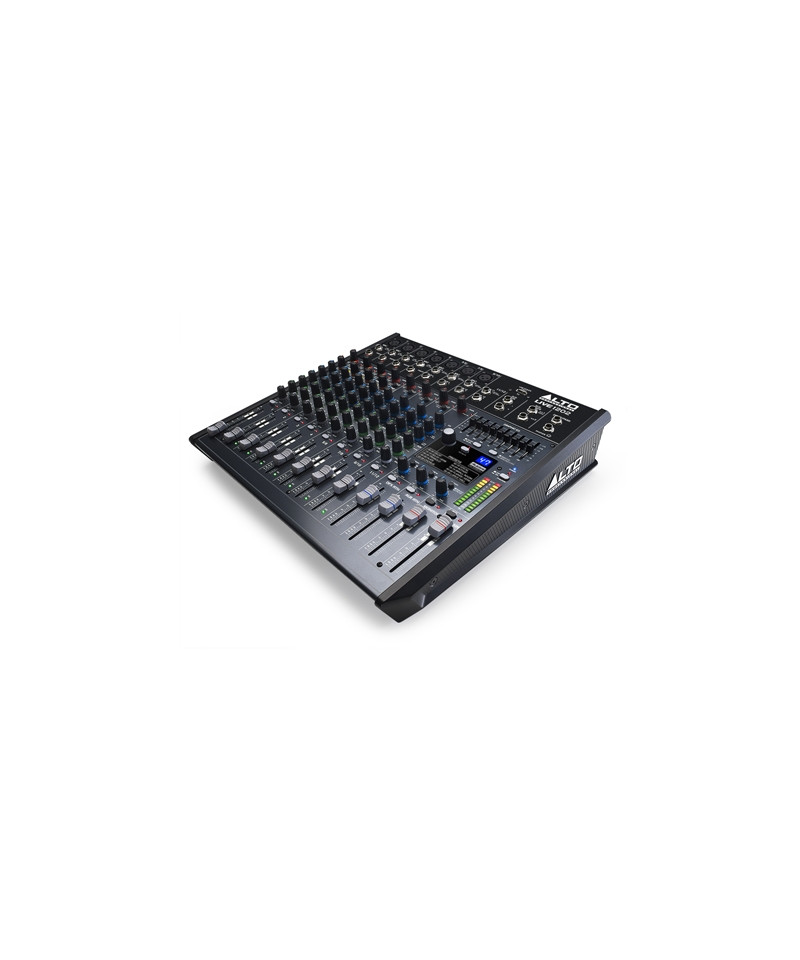

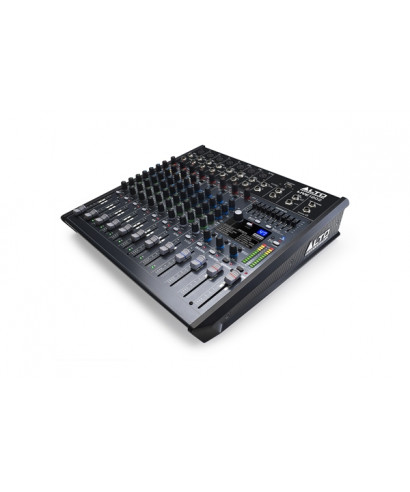

High Professional Live 1202: 8-channel audio mixer (4 mono / 4 stereo)

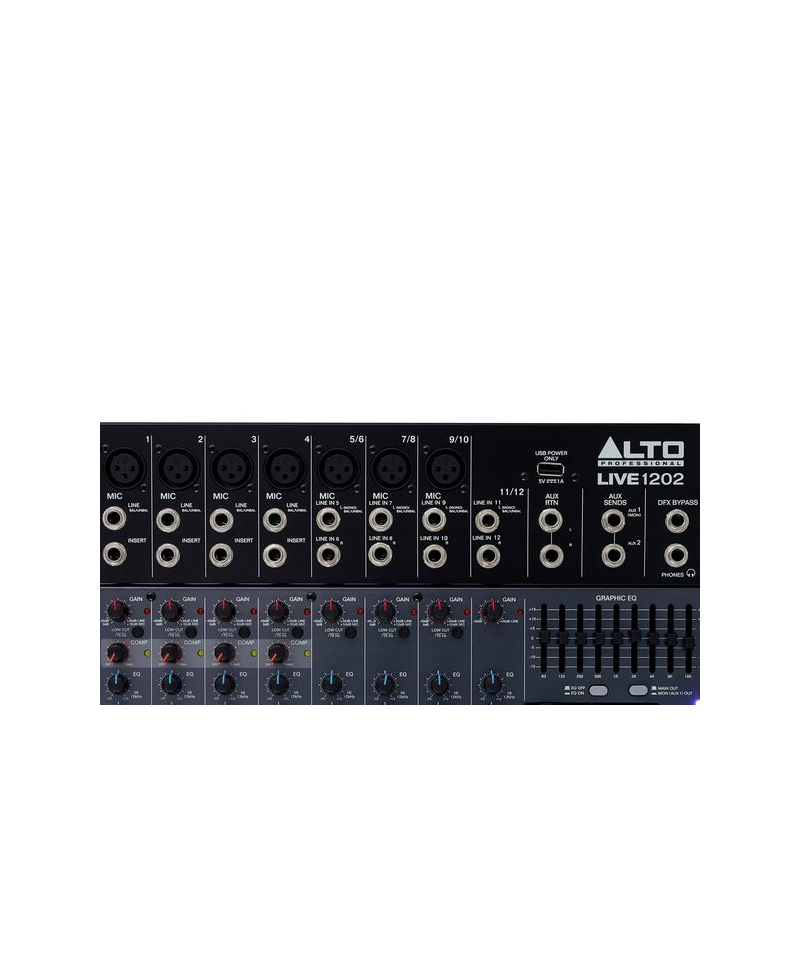

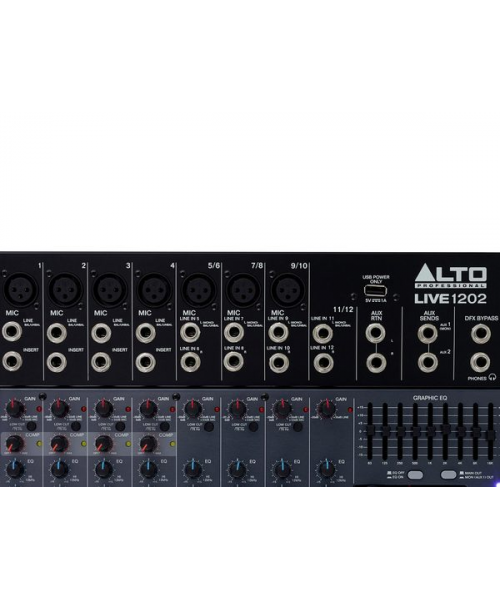

The High Professional Live 1202 mixer provides 8 channels, of which 4 mono with XLR microphone and line (¼ "jack) inputs, on which we find an insert connection to connect signal or multi processors-Effects, three stereo channels (5/6, 7/8 and 9/10) with inputs Jack (L and R) from 1/ 4 ", possibly benefited as additional mono inputs seen the presence of the microphone XLR connector. It closes with an additional channel - 11/12 - Stereo equipped with ¼ "L / R Jack inputs. The channel strip of each channel provide, in addition to the 6cm fader: gain control, high pass switch (only where XLR input is present), 3-band equalizer, pan and the two sent respectively to the auxiliary output (aux Send) and to multi-Integrated effect. On the first four channels there is rotary control for the application of the compressor. For both sends, on the right of the mixer there is the respective return control fader (DFX RTN and AUX RTN).

Features High Professional Live 1202

• 8-channel audio mixer (4 mono / 4 stereo)
• 7 XLR inputs with DNA preamplification
• Intelligent compressor on the first 4 channels
• EQ to 3 bands and mandate aux on each channel
• 60mm fader, mute button, LED
• 100 FX DSP by Alesis
• EQ graph of 9 bands on the master

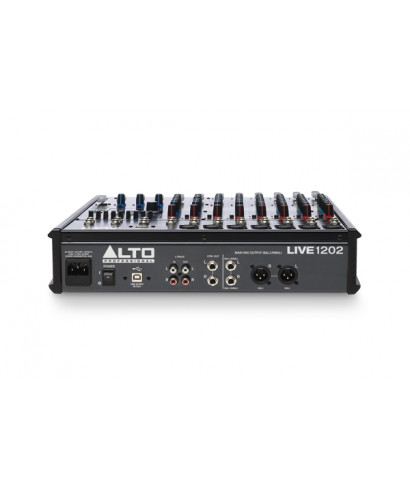

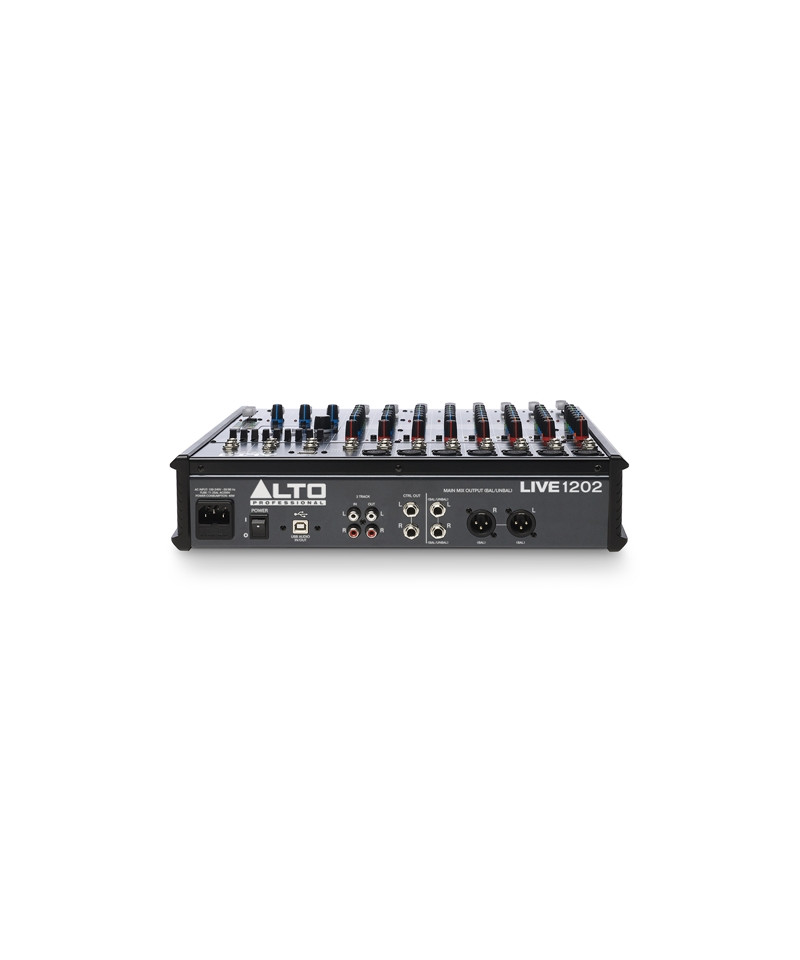

• XLR balanced outputs and ¼ "jack
• Control / Monitor output on ¼ "jack connectors
• Headphone output with independent volume control
• RCA "2 Track" input and output
• USB port with I / O stereo audio interface function
