Mixer

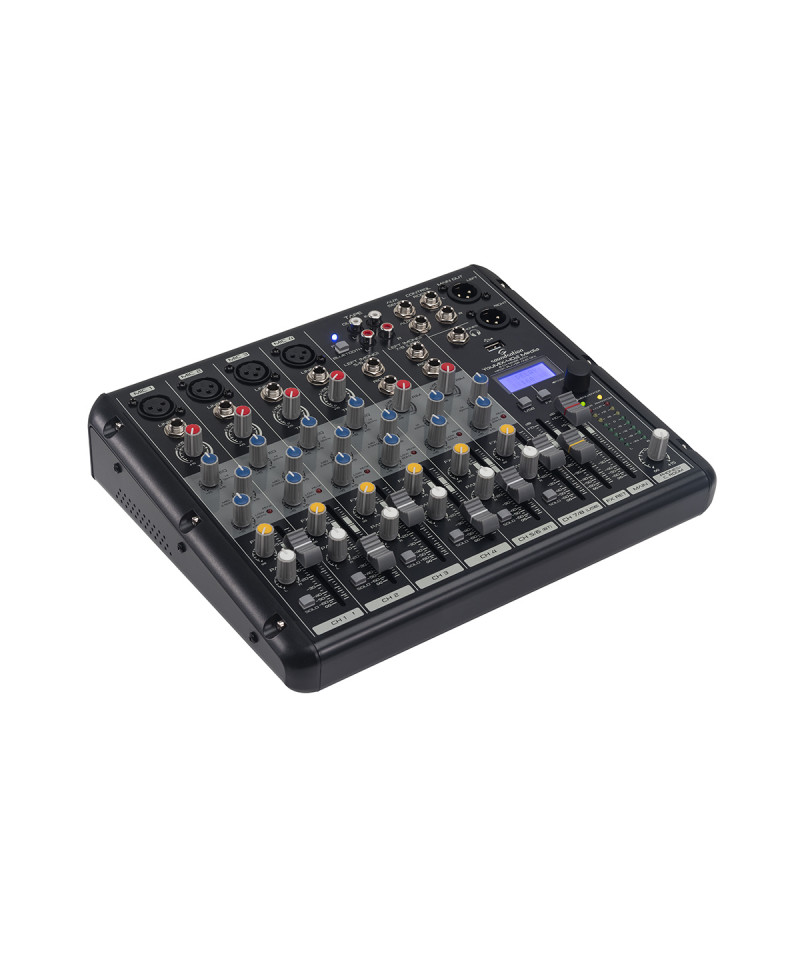

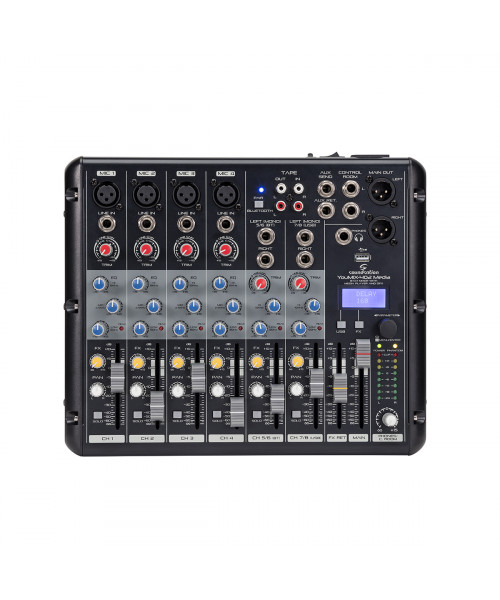

SOUNDSATION, presents, Youmix-402

The series of compact mixersYouMix Mediaof Soundsation goes to a decidedly crowded market slice where all the products are very often resembled and, going to better observe the components, easy to find that the similarities go far beyond the mere aesthetic appearance.

To stand out from the multitude of mixer offering the market and present to the public effective and credible products, Soundsation - even in the simplicity of the basic project - With the YouMix Media series he wanted to pay close attention to detail, both in terms of choosing components both in ergonomic terms.

YouMix 202 MediaandYouOmix 402 MediaTwo mixers respectively from 6 channels and 8 channels with integrated digital effects, 3-band equalizer, USB port to read MP3, bluetooth connection and 60 mm high quality fader.

To see are just some details like the 60mm faders (also used for the effective return so as to have a more precise adjustment), Lencoder to adjust and select the effects or still the clear and functional layout of the controls that give a precise indication of how this product has also been designed and Conceived by an attentive R & D department used to work on the field!

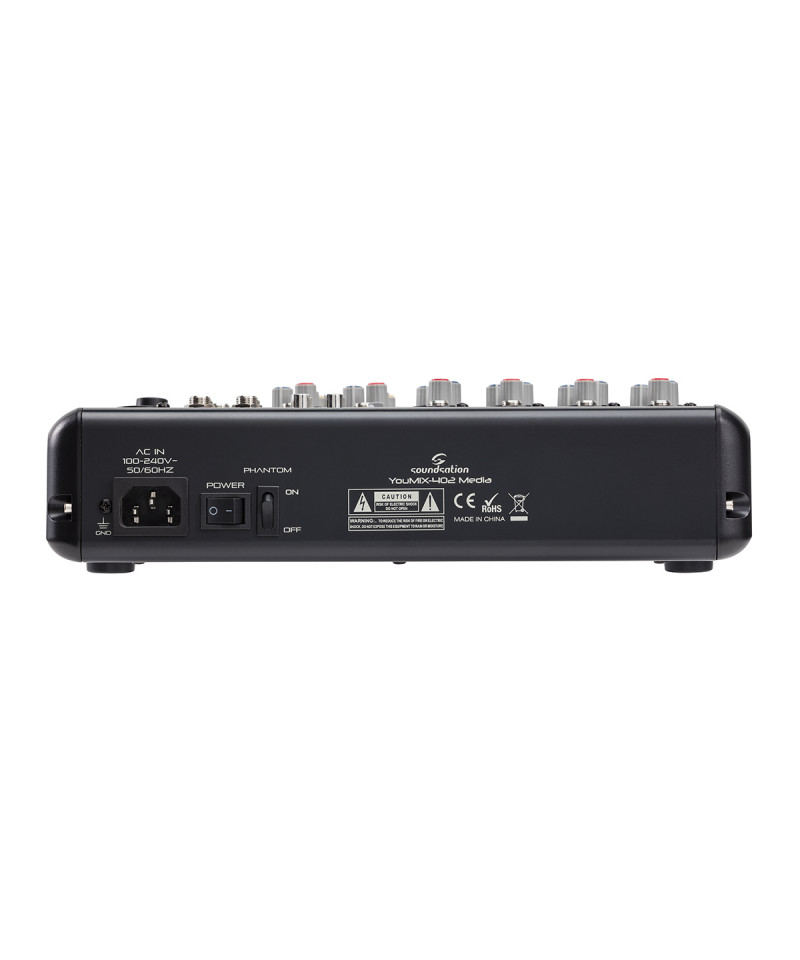

The microphonic channel strip, common to both versions, provides quality preamplifiers that offer high headroom and low noise signal ratio to ensure a clean and natural sound with all kinds of source. The presence of the Phantom Power placed in a well reachable position immediately in the back of the chassis, allowing you to use condenser microphones. The channel completes a 3-band equalizer (two bands + trim for the line channels), a control for the pan, one for the sole and obviously the control of the gain.

In the right side of the surface placed another well-studied element and the multiple functionality: an LCD screen can in fact - Through a simple switch key - To show the controls of the digital multi-effect, those of Bluetooth and those of the MP3 player, saving so space, without sacrificing any function.

Always on the right side the area dedicated to the multi-effect which offers 256 presets with all the most used effects (Room, Hall, Vocal and Plate reverberations; delay; echo; chorus; flanger and combo). The two mixers are then equipped with a USB reader that accepts files in MP3 format (up to 48kHz - 32-Bit @ 320kbps) and the Bluetooth connection for streaming audio signals. In the YouMix series all controls and connections are placed in the front to recreate a rational and intuitive layout. Upon completion of the equipment we find the headphone socket with inch TS jack, in unbalanced and with RCA connectors plus two outputs for the L + R master in XLR format. Although these are products dedicated to small service, piano bar, DJ sets generally the SoundSation YouMix series preserves that care in particular and that research in fluxability that only those who used to think of a user able to propose. For this reason, SoundSation products have been enjoying so successful among professionals, a success that is not only due to the tempting selling price.

• Professional mixer 8-Channels
• 4 Microphone preamps with high gain and low noise
• 2 stereo channels and 1 Separate stereo in / out Tape channel
• Wireless audio connection BT stereo with controls on line stereo channel
• USB reader with controls on stereo channel
• Multi digital effect at 24-Bit with 256 presets
• Jack balanced by 1/ 4 "(6.3 mm) on all MIC / Stereo line channels
• Stereo output balanced on XLR; Stereo Control Room outputs with jack from 1/ 4 "(6.3mm)
• 3-band EQ on all mono channels; EQ to 2 bands on stereo channels
• 60 mm volume cursor on each channel and exit Main
• AUX / EFF SEND controls on all channels
• AUX / EFF RETURN with 60mm cursor for optimal level adjustment
• Control Room / Headphone Output with Dedicated Volume Control
• Integrated phantom power supply to + 48V for condenser microphones
• Input connections: Balanced XLR (MIC channels), Jack from 6.3mm Balanced (MIC and Stereo Line), RCA Stereo (Tape In), USB 2.0 Jack Type Jack Socket-A (MP3 player)
• Output connections: Balanced XLR (Main L outputs-R), Jack from 6.3mm Unbalanced (Control Room L & R, Aux Send output, Aux Return entrance), Stereo Jack from 6.3mm (Headphones), RCA Stereo (Tape Out)
• Ch1-4 Microphone preamp: Pre-balanced electronically, discreet circuit of the entrances
• Ch1-4 Microphone preamp: Frequency response: 10Hz to 200KHz
• Ch1-4 PREAMP Microphone Earnings & Signal Report / Noise: from + 14db to + 60db; 120db E.I.N.
• Ch1-4 Line inputs: Electronically balanced
• Ch1-4 Frequency response line inputs: from 10hz to 130khz
• Ch1-4 Inputs Lining line & signal / noise ratio: by -6DB A + 38DB; 95db E.I.N.
• Ch1-4 EQ 3-Bands: Low Freq. 80Hz, + /-15db; Mid Freq. 2.5khz, + /- 15db; Hi Freq. 12kHz, + /-15db
• Ch1-4 other controls: Peak LED indicator, effect delivery, pan position, key only, 60mm volume sliders, Phantom + 48V power supply (switch on the rear panel)
• Ch5-8 MIC / LINE PREAMP: Electronically balanced
• Ch5-8 Response frequency: from 10hz to 70khz
• Ch5-8 Earnings & Signal / noise ratio: Line: -8 A + 15dB / MIC: +13 A + 60DB
• Ch5-8 Signal / noise ratio: Line 96DB / MIC 104DB E.I.N.
• Ch5-8 EQ 2-Bands: Low Freq. 80Hz, + /-15db; Hi Freq. 12kHz, + /-15db
• Ch5-8 other controls: Peak LED Indicator, Effect Display, Pan Position, Solo Button, 60mm Volume Slider, Pair BT Button (CH5 / 6 Only)
• Main outputs: + 28DB (balanced)
• Control Room outputs, AUX delivery / return, Tape output: + 22dBu (unbalanced)
• Headphone output: + 15dBu / 150ohm
• Main section controls: 60mm FX Return Level Slider, 60mm Main Level Slider, Headphone Volume / Control Room, Power LED Indicator, Phantom Power LED Indicator, Vu Meter Bar with 2x8 LED (Main Level / Sole), Display LCD 2x8 characters (MP3 player and multi effect)
• Controls MP3 player: USB button, wheel selection / confirmation parameters
• MP3 player functions: Music player, EQ curve selection, execution mode, audio recording
