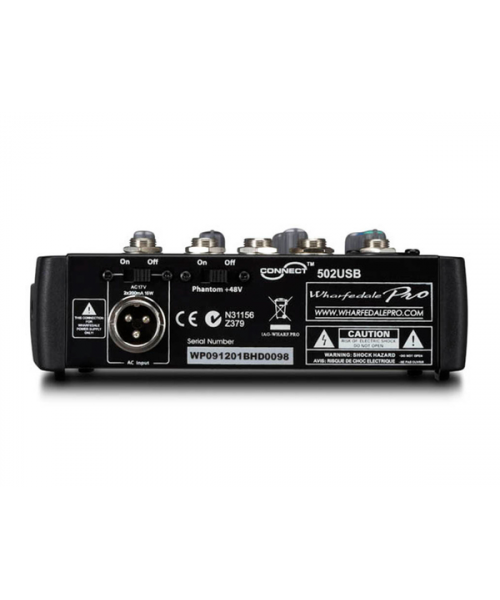

WHARFEDALE Connect 502 USB
| The Connect series of Wharfedale Pro includes micro-high quality mixer suitable for a wide range of applications. Professional features such as Phantom power, XLR balanced microphone inputs and USB connection, will give you complete functionality and great sound in an ultra compact and convenient format, ideal for live music, home recording studios and fixed systems. Microphonic preamplifiers use the same high quality components and the same construction methods that are used in the SL Series Mixers. Connect 502 has an intuitive user interface and ergonomic design that is excellent for both beginners and professionals. |
Main features
- Gain, High, Low, Clip Led, Pan and Master on Channel 1
- Balance E Master Sui Canali 2/3 and 4/5 (Line) balanced and unbalanced
- Power supply Phantom 48 V
- In/Out for external processors
- Double Bus
- Exit Headphone
- Master Headphone and Master General
- USB port
Technical specifications
- Hum and noise: -127dB input disorder equivalent Mic Pre /-95dBu residual noise
- Maximum input level: Mic In +10 dBu, Line In: +20 dBu, +20 dBu In 2TK
- Maximum output level: +22 dBu
- Gain Input Mono channel: Variable 50dB (-50 ~ 0dB / (-40dB ~ +10 dB)
- Level Meters: Double LED 4-Segments
- Clip indicator: Turn on at about +16 dBu
- Frequency response: 20Hz-20kHz ± 1 d
- Weight: 1,64kg
- Maximum headphone output level: > 150mW @ 32 ohm
- Input Channel EQ: High (± 15dB) 12kHz Shelving / Low (± 15dB) 80Hz Shelving
- AC POWER: 100~120V; 220~240V, 50/60Hz
- THD: <0.0025% @ +14dBu
- Size: 50,9 x 143 x 183,8 mm
- Weight: 0,64 Kg
