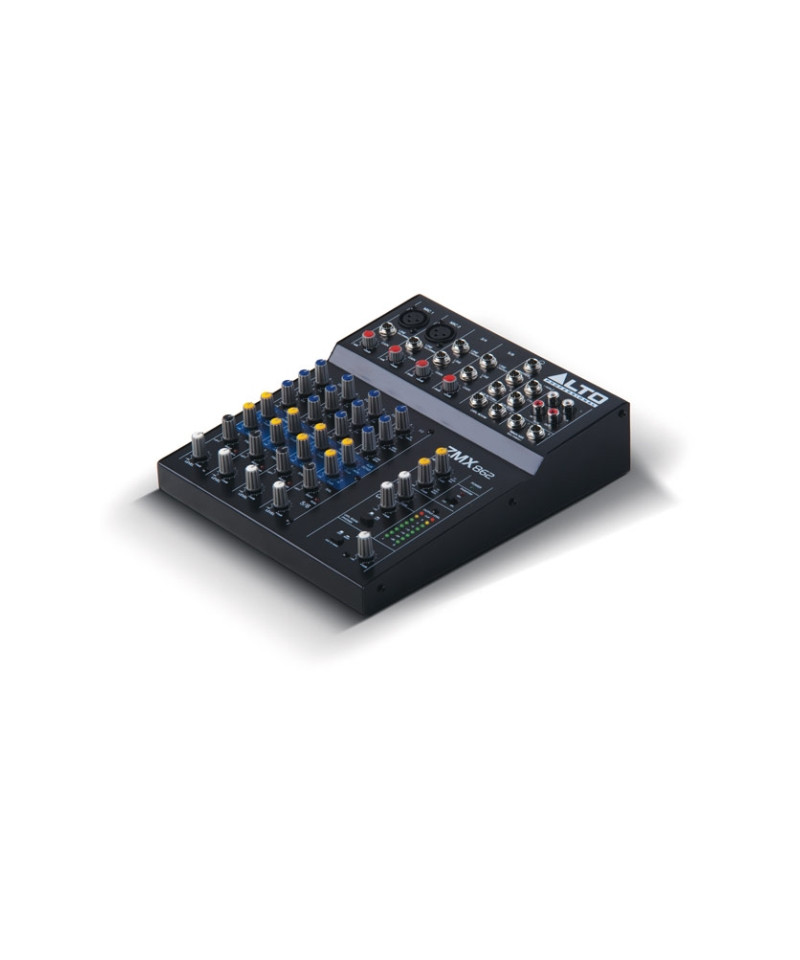

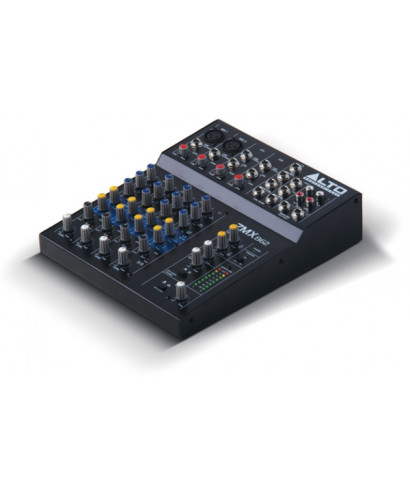

ALTO PROFESSIONAL presents Zephyr ZM862

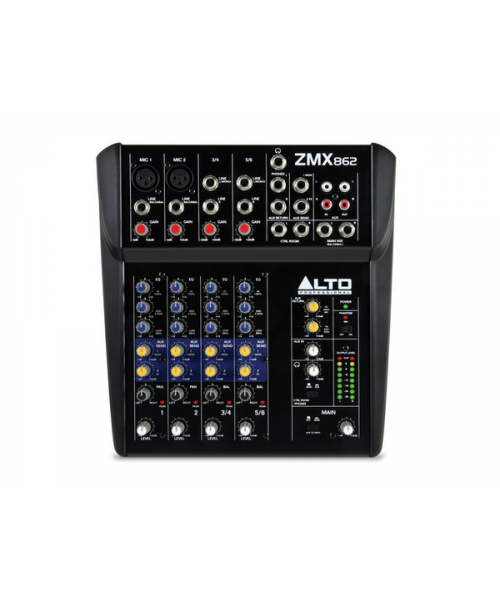

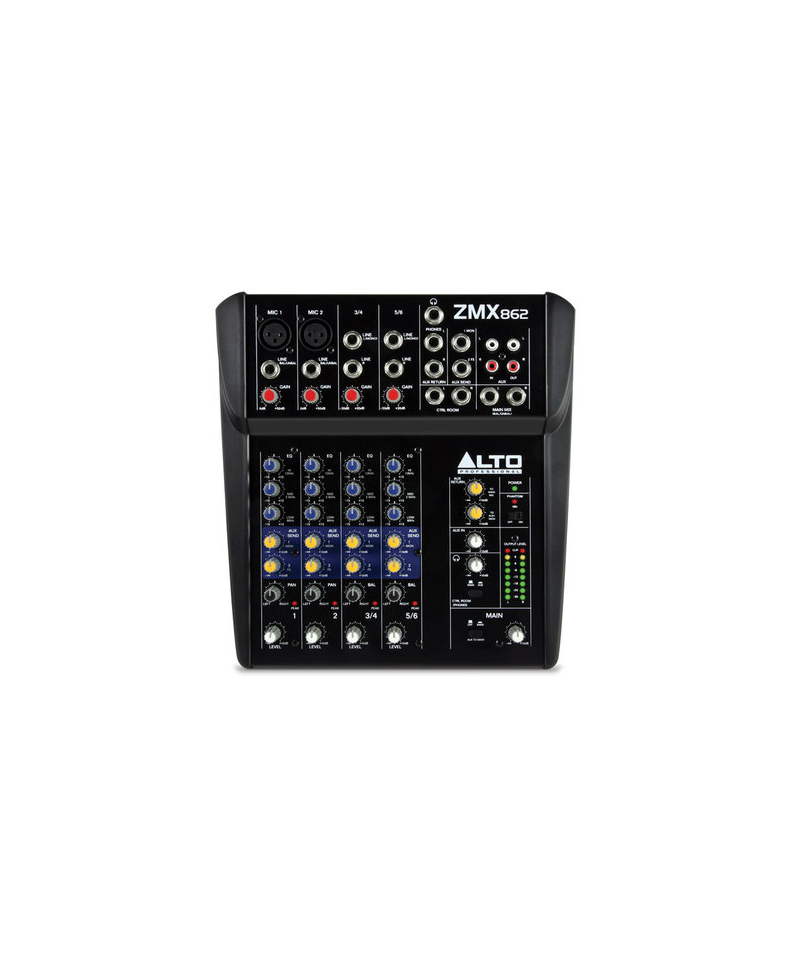

Zephyr ZMX862 is a 4-channel mixer, two mono and two stereo, respectively equipped with XLR inputs (with phantom power supply) and balanced ¼ balanced jack inputs (TRS). The mono input also has a line type input (balanced) on ¼ "TRS jack. On each channel there is a 3-band equalizer, a gain, pan potentiometers and volume. Also available two Aux mandates, with respective potentiometers (SEND) On each channel, and an input and output on RCA stereo connectors for connecting music players, and / or recorders. Volume control is rotary type on all channels. The volume of the MAIN output can be controllable by a classic Rotary potentiometer above which we find the 2 Meter LEDs (stereo) at 8 segments, the two Aux Return potentiometers.

• Frequency response: 20 / 22khz (+ /-1db)
• Harmonic distortion: ? 0.005% at + 4dBu, 1kHz
• Gain Range: 0 / 50DB (MIC in), 15 / 35dBu (Mono Line), -20 / + 20DBU (Stereo Line)
• Signal / noise ratio: ? 110 DBU
• Impedance: 3.9k Ohm (MIC), 10K Ohm (Line), 1K Ohm (Tape Out), 120 ohm (out)
• Eqs: High ± 15 dB @ 12 kHz, medium ± 15 dB @ 2.5khz, bass ± 15 dB @ 80
• Outputs unbalanced: TAPE (RCA), Main and headphones on ¼ "jack
• / Power consumption: 18V ~ 1500mA / 18W
• Dimensions and weight: 202/250 / 58mm; 1.7 kg
