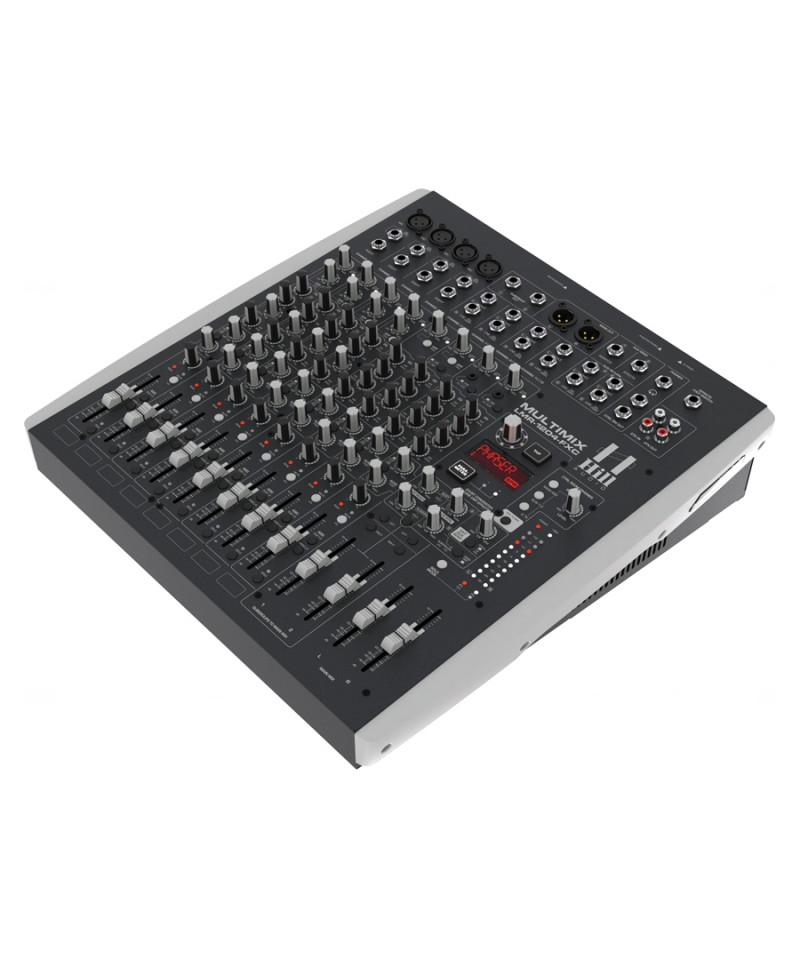

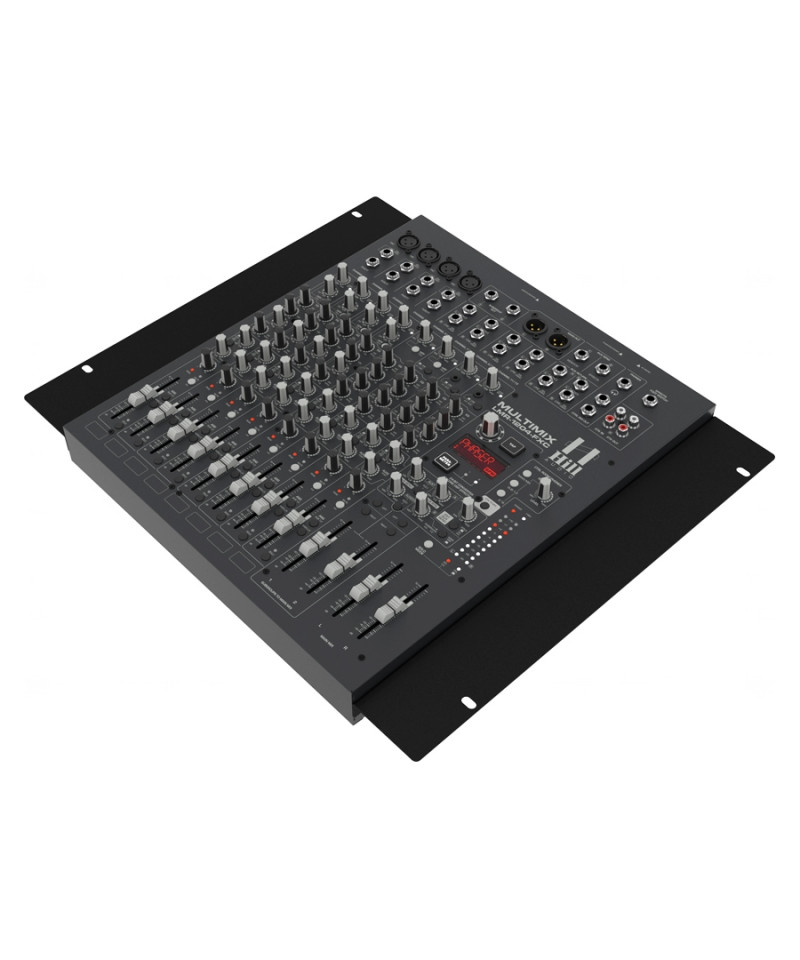

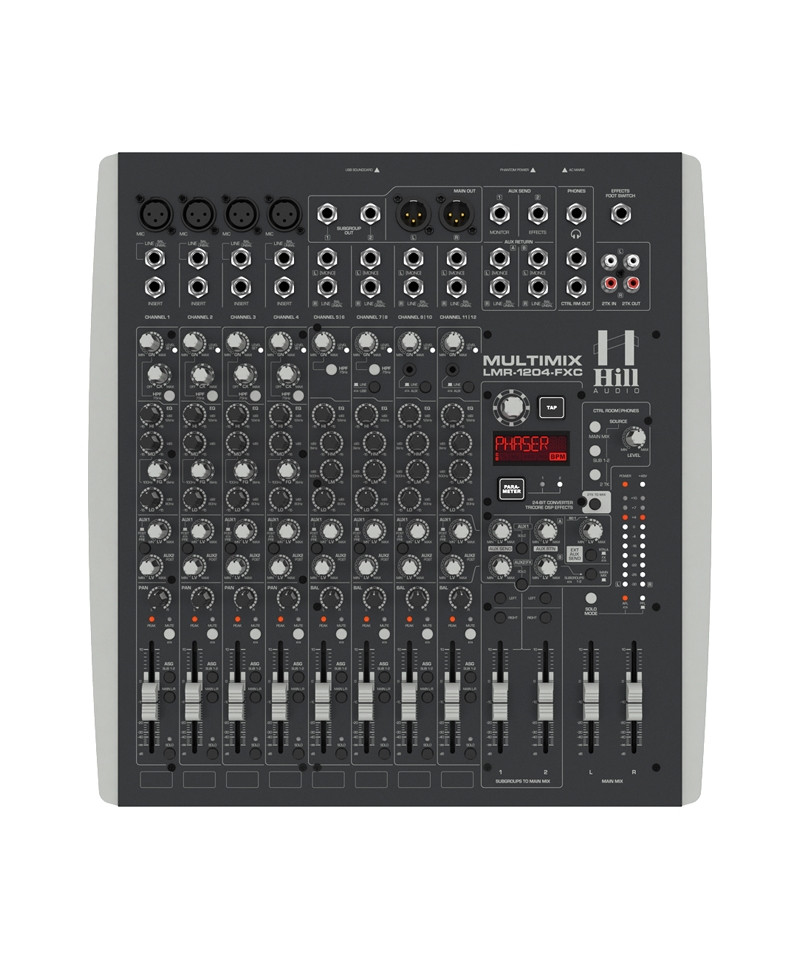

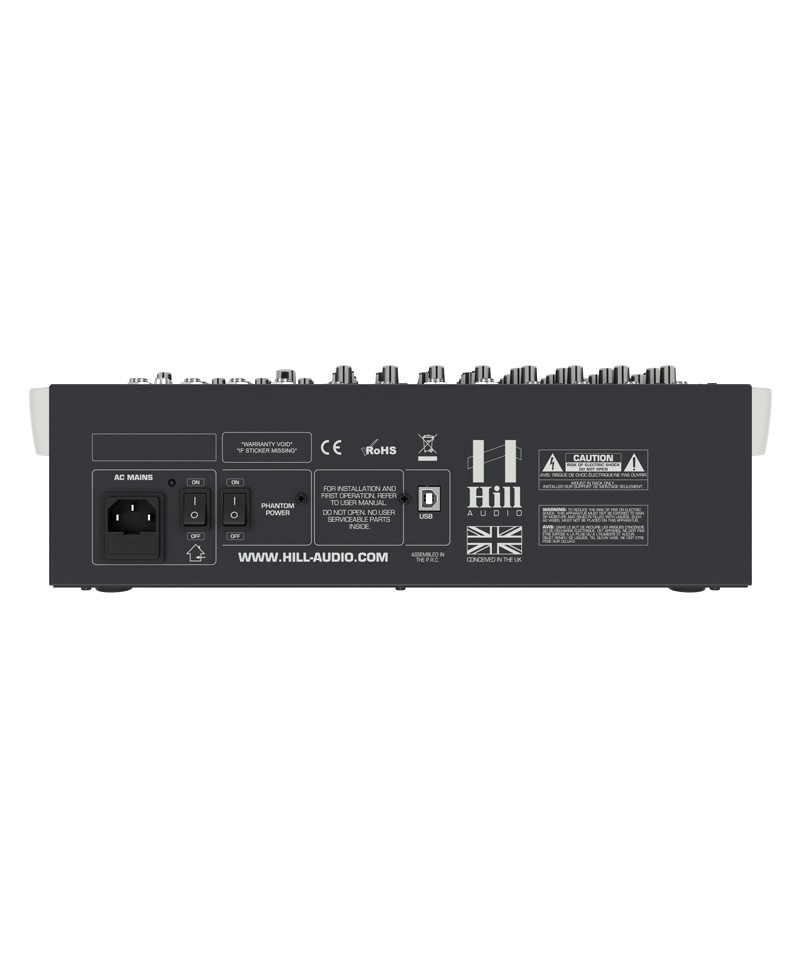

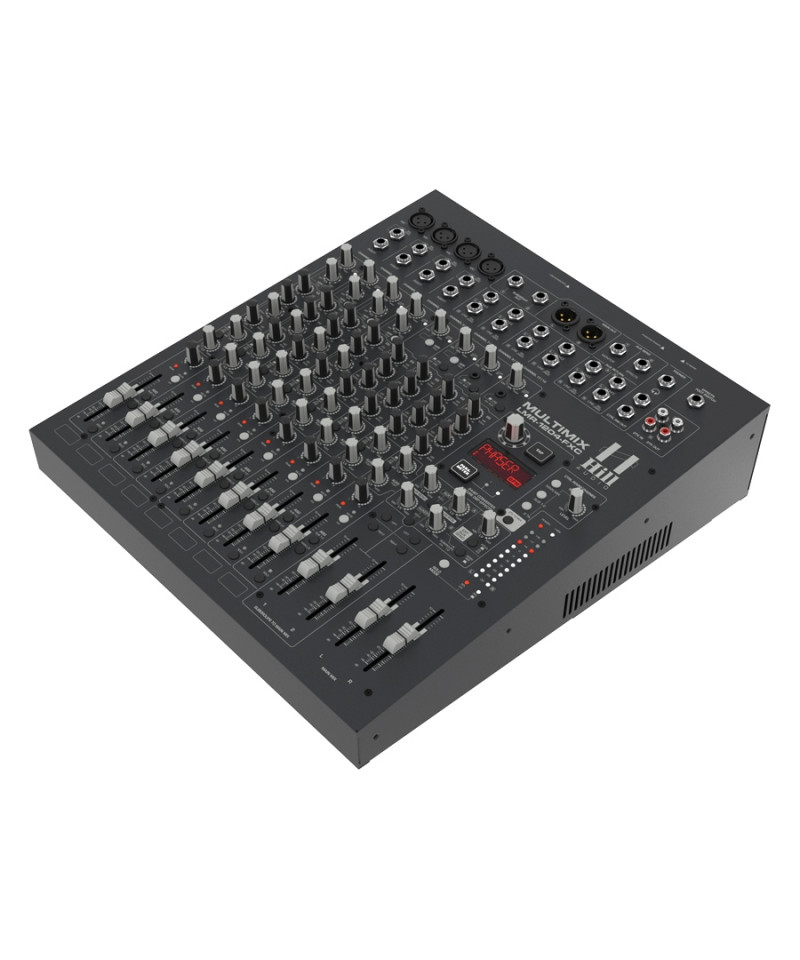

Hill audio LMR-1204FXC is a bench live mixer in installable format also to Rack 19 "built on the tradition of the famous Multimix thirty-year success series and is the entry model-Level with subgroup management. It has all the necessary functions for a small live event: 4 mono channels with low microphone input-Noise and compressors with rotary potentiometer that make it simple adjustments to the dynamics, an EQ to 3 bands with semi-machine medium for perfect tonal adjustment. 4 stereo channels provide connection possibilities for a wide variety of audio sources, two of which are equipped with 3.5 mm TRS inputs for a possible use as a DJ mixer. 2 AUX outputs, one of which with the possibility of pre / post fader routing towards the internal effects processor. The latter mounts an LCD display for a simple reading and allows you to edit up to 3 parameters for IASCUN algorithm. A USB interface for digital playback / recording operations complete the characteristics of this very wide equipment for a mixer.

Features

• 4 microphone channels with gain control, compressor, filter passes-High at 75Hz and semi-systematic equalizer, 2 Aux, Pan Control and Peak LED
• 4 stereo channels with gain control, EQ 4 bands, balancing control and peak LEDs
• 3,5 mm TRS input in 2 stereo channels
• 60 mm fader for volume control of each channel
• Insert for each channel
• All channels assignable to the master or subgroups
• 2 subgroups with external outputs, assignable to the Master L or R, subgroup management with 60 mm fader
• Phantom Power + 48V activated user for condenser microphones
• Aux post bus-Fader and aux bus selectable pre or post
• Return aux post-Fader with redirection to Aux Send monitor
• Effects processor 24 bits Tricore with LCD display, external output and control pedal. 15 Algorithms in 6 groups, editable up to 3 parameters for algorithm. TAP TAP function.
• Output / Input Tape Playback / Record with flexible addressing
• Soundcard USB Stereo for Playback and Registration
• Control Room / Headphone output with selectable source

Technical specifications

• Frequency response: 10-22khz
• THD: 0.007%
• E490e
• Crosstalk (adjacent channels / same channel): -70db /-40db
• Power supply: 100-250V 50g-60h (30W)
• Dimensions: 355x412x103 mm
• Weight: Kg 5.5
