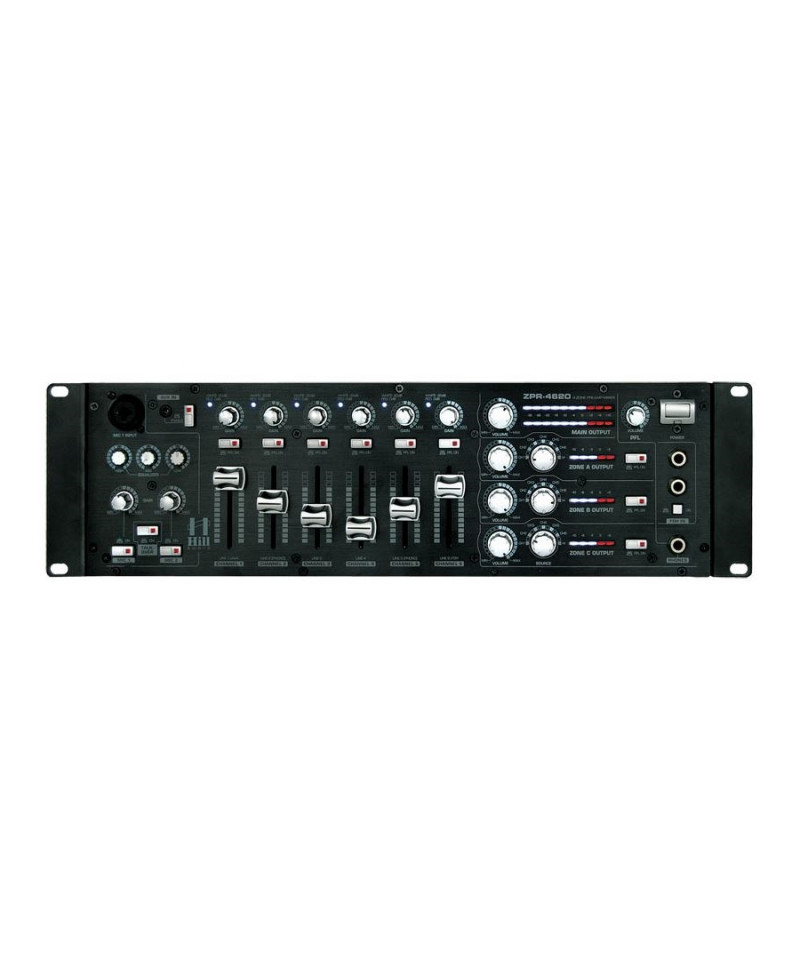

The 4-zone ZPR mixer-4620 is the most versatile choice for multi installations-Medium size area designed on concept of a stereo master area. Conceptual design CascadeZone © allows 3 additional mono zones to transport the same signal as the Main stereo area or the signal coming from one of the 6 additional inputs. All general controls are placed on the front panel of the appliance, while the zone controls are placed on the back. It brings the zone settings as the maximum level settings, equalization and filters pass-High at 100hz. Building constructive design of control on front / rear panel make the appliance very flexible and user-Friendly also for less experienced operators.

Features

  • 6 Stereo Input Channels (4xline, 2xphono / Line) with 2-color LED signal / peak and Gain Control on the front panel
  • 45mm dual channel faders-rail
  • 1 Balanced stereo input (FOH INPUT)
  • INPUT TRS 3.5 mm stereo on the front panel
  • 2 microphone inputs
  • Phantom Power for condenser microphones that can be activated via Jumper
  • Equalizer for the 3-band voice and "On Air" switches for microphone inputs
  • Adjustable Auto Talkover that allows you to choose the desired level of music mitigation when the microphone is in use
  • Master Section with Main Stereo Output (10 LED LEVER METER FOR LEFT AND RIGHT) and 3 mono area outputs (5 LED level meter)
  • CascadeZone ©: Assigns the mono zones to one of the 6 channel inputs or the main signal

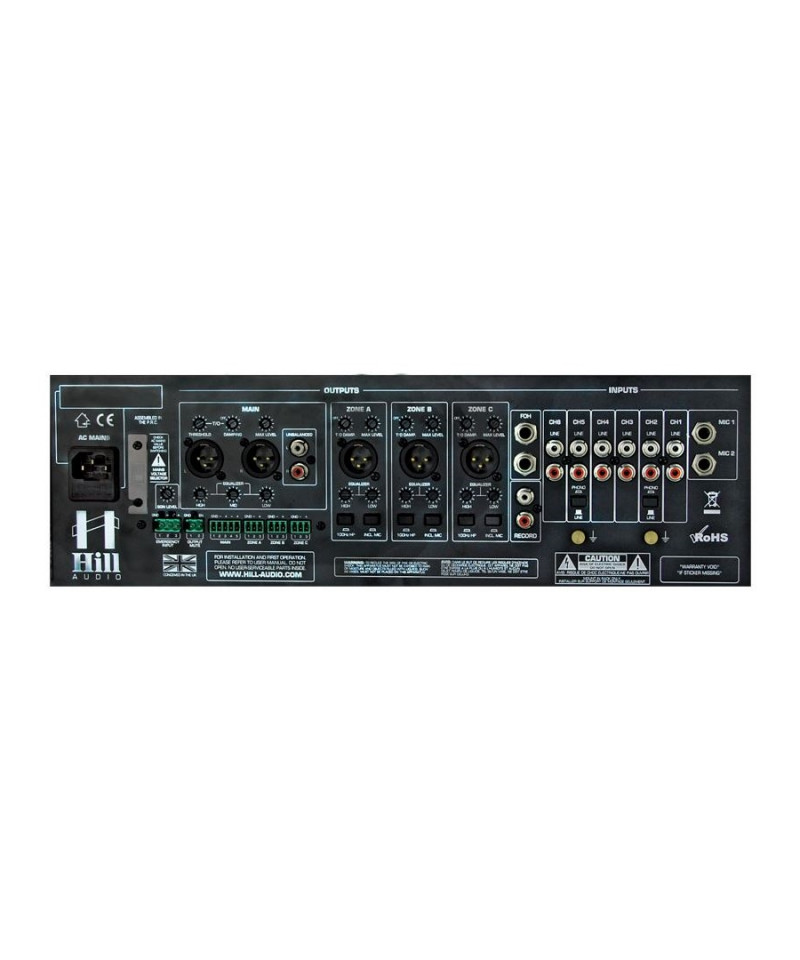

  • Maximum output level adjustment on the back
  • XLR and Phoenix connectors for each area; RCA output additional stereo for the master stereo area
  • 3-band equalizer for the Main Stereo Zone, 2 bands for mono areas
  • Filter pass-High to 100Hz and microphone exclusion filter for mono zones

Technical specifications

  • Signal / noise ratio:> 82db (line)
  • Crosstalk Damping:> 65dB (line)
  • L381l
  • Answer to French: 20Hz 20 kHz
  • Dimensions: 483x133.5x183.5 mm WXHXD
  • Weight: 4.2 kg
