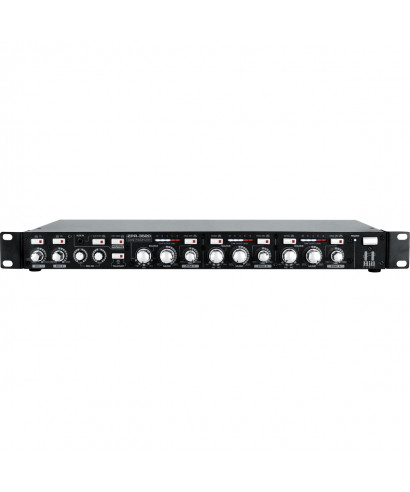

The 3-zone ZPR3520 mixer is a mixer / preamp with two stereo output zones and a mono. Choice of installer, each area can be controlled on the special front panel or through a remote control potentiometer (ZCP10A, optional). Each signal assignable to the output zones can be taken from the 4 stereo inputs and two of the latter can be made by means of the 3.5 stereo trs input on the front panel and the balanced stereo input (FOH) on the back of the appliance, allowing Connectivity at the same time at mobile players and any DJ mixers. 2 microphone inputs with assignable priority through a switch can be included / excluded from each area. Each zone can be equalized through an EQ to 2 bands and the Mute function is available and the inputs for a possible EVAC system with automatic priority.

Features

• 5 stereo inputs, of which 4 with GAIN on the front panel with routing possibilities to output areas A | B | C.

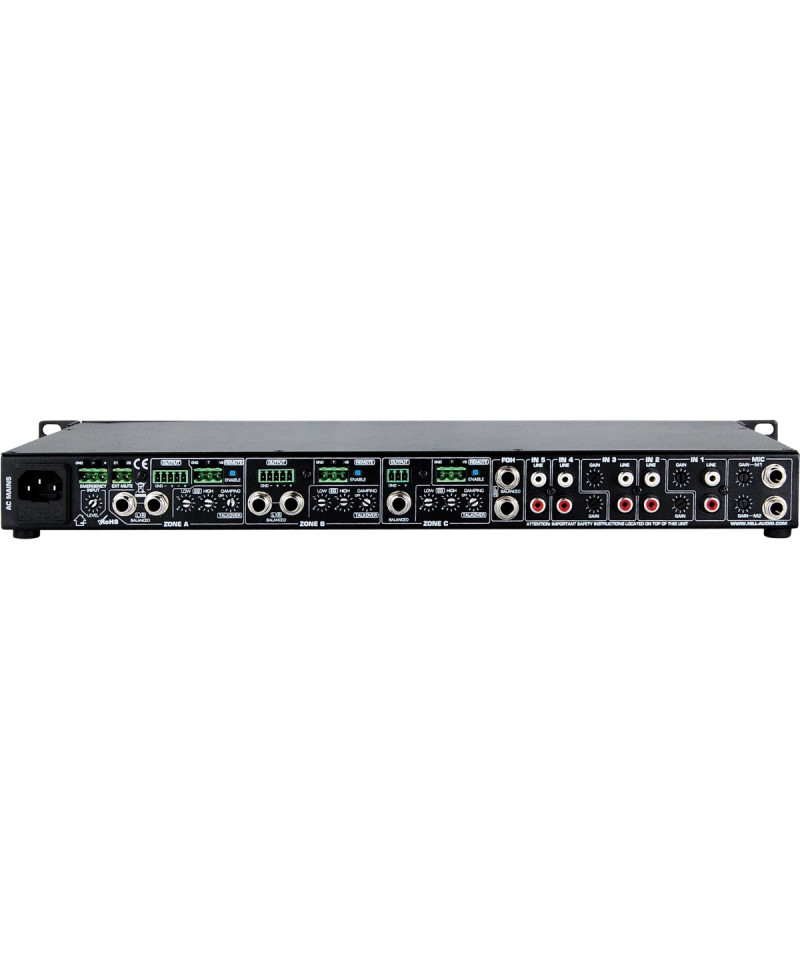

• Balanced input fo on the rear panel and input 3.5 mm TRS Stereo on the front panel with routing on areas A | B | C
• 2 microphone inputs with TRS connector 1/ 4 "and Gain control
• Phantom Power 12V for microphones that can be activated via Jumper
• Auto Talk-Over adjustable for automatic music level reduction when using the microphone
• Exclusion switch / Inclusion for each area
• Microphone level adjustment for each area
• 2 zones with stereo output and an area with mono output
• 5-level LED indicator for each area
• 2-band EQ for each area on the rear panel
• Volume control for each zone and for remote controls connected to the appropriate connector (recommended ZCP10A remote panel)
• Balanced XLR outputs and Phoenix for each area
• Input for evac systems that automatically turns off the master and activate the emergency signal
• Mute Contact Output To externally silence the audio output

Technical specifications

• S / N report:> 82DB (line)
• Crosstalk Damping:> 65dB (line)
• L737l
• Frequency response: 20Hz - 20khz
• Dimensions (LXAXP): 483.0 × 44.5 × 183.5 mm
• Weight: 2.2 kg
