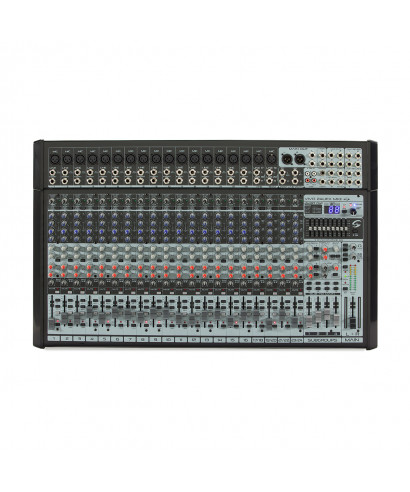

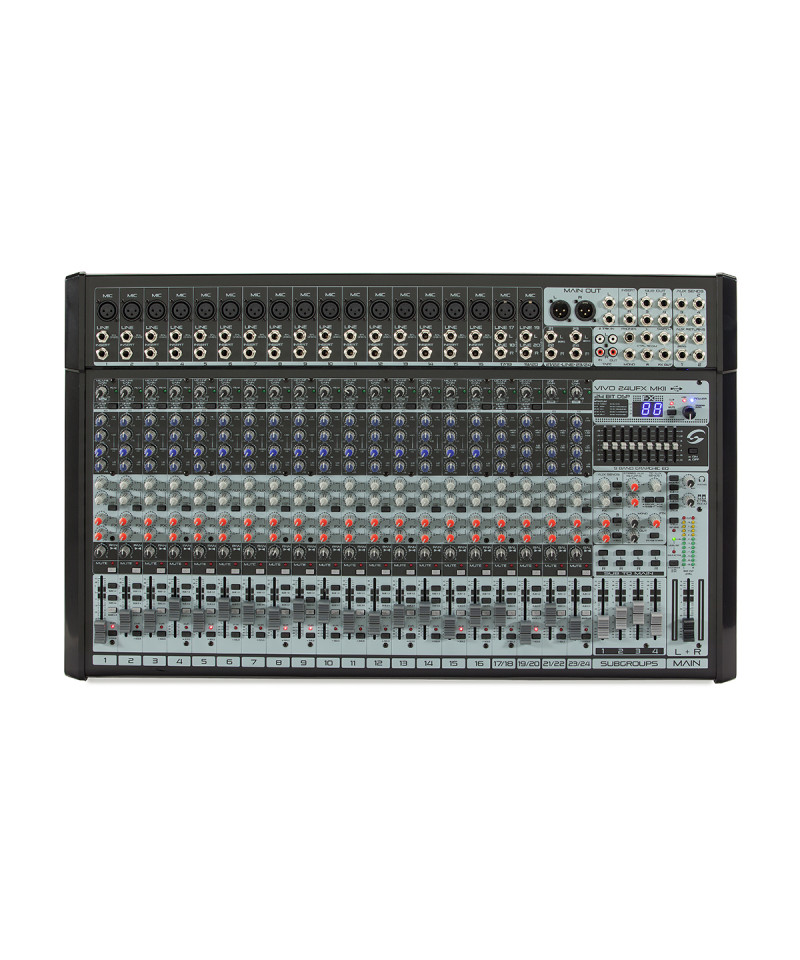

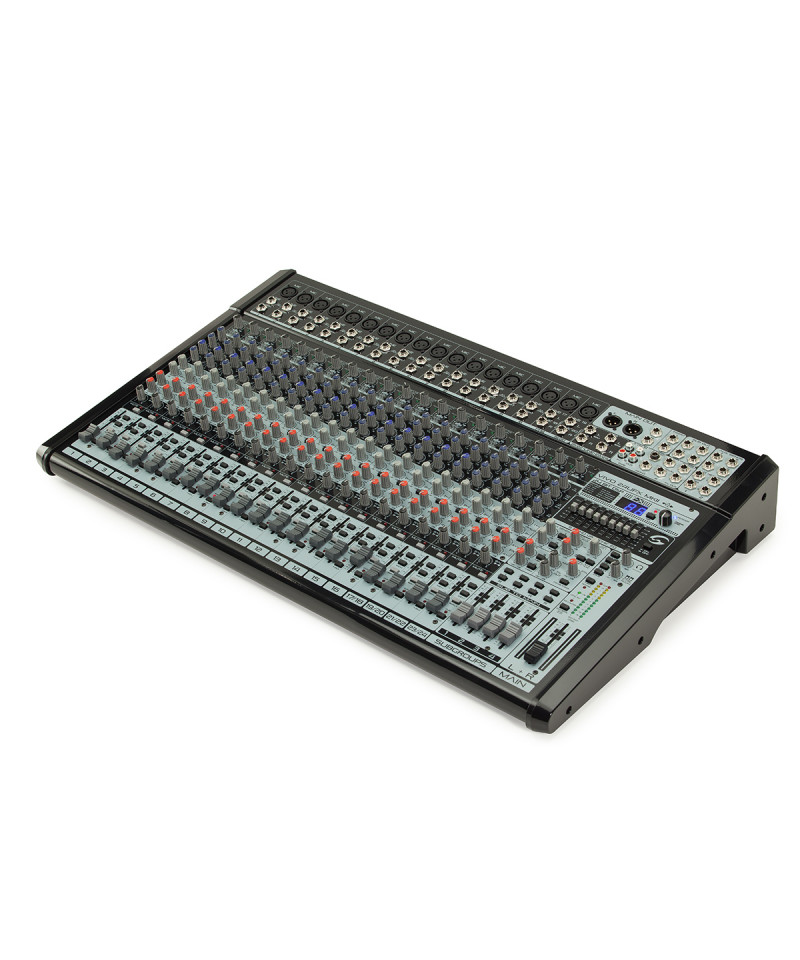

SOUNDSATION, presents, I live-24UFX MKII

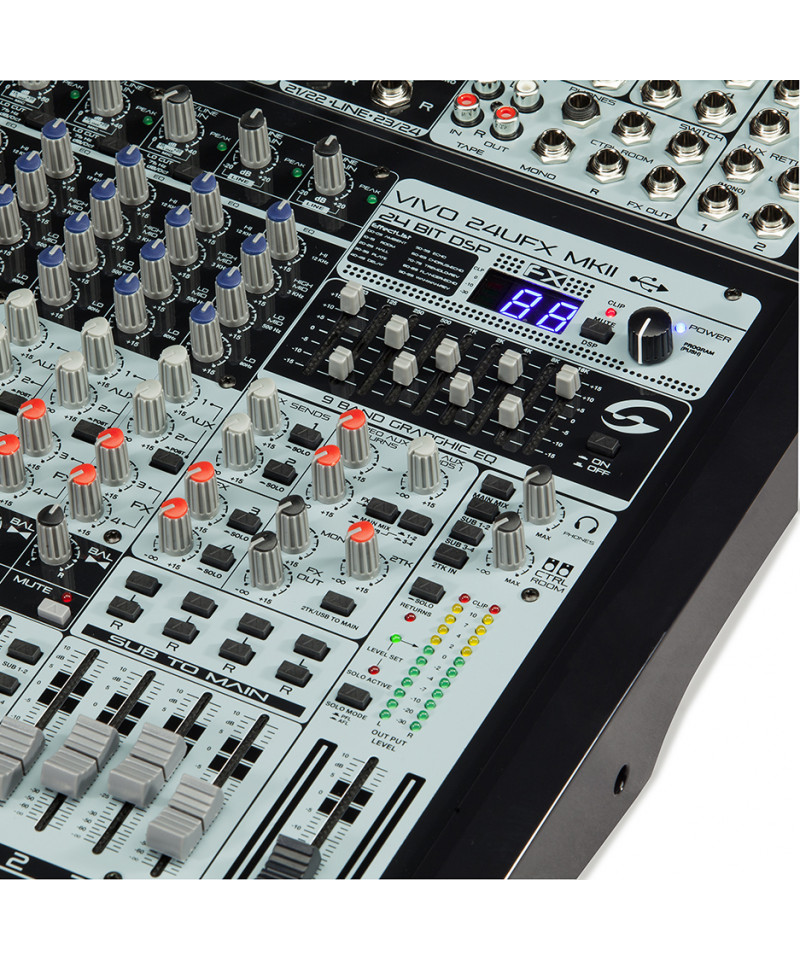

I live 24 mkii is a professional mixer designed for both live and studio applications. The new MKII version is equipped with the Ambient Pro® multi-effect with 99 high quality effects. The 24 inputs cover a wide range of possibilities of use and pre-amp noise-Less ensure an excellent noise signal ratio as well as higher quality faders 80 mm prevent reproduction of usual riders when adjusting the volume. Being a professional workstation, live is equipped with 4 AUX mandates adjustable with the relative returns as well as 4 subgroups dedicated to the routing of multiple channels outward or to the main. The master section has a 12-segment VU meter with the clip indication and the independent headphone output adjustment and Control Room output, useful to listen to directed in the study context. Its ultra metal structure-Resistant allows the use of this outdoor mixer in any weather condition. The USB 2.0 output allows real-time recording on any DAW making it in fact a powerful recording resource.

• 24 total inputs
• 16 mono channels, 4 stereo channels, 4 subgroups
• 18 Noiseless Microphone Preamps with Phantom + 48V Power, Gain Control and Filter-cut
• Balanced inputs to keep the noise level and signal integrity low
• 2 AUX (Pre or Post) mandate and 2 effects effect (4 independent total mandates)
• 3-band EQ with parametric filter on the medium
• Ambient Pro® digital effects processor at 24 bits with 100 programs
• 2 track-In assignable to the main
• Headphone monitor output and "Control Room" for adjustable monitor studio
• 9-band graphic equalizer on the master
• Signal LED Indicator and Mute / Only On All Channels, 12 Segments Vu Meter on the Master
• USB I / O sound card with USB input assignable to the channel
• Redirection of each single channel on Main, sub 1-2, Sub 3-4 or in the only way
• Sturdy cabinet to withstand outdoor live stresses
• Dimensions (a x l x p): 105mm x 755mm x 445 mm
• Weight: 10.4 kg

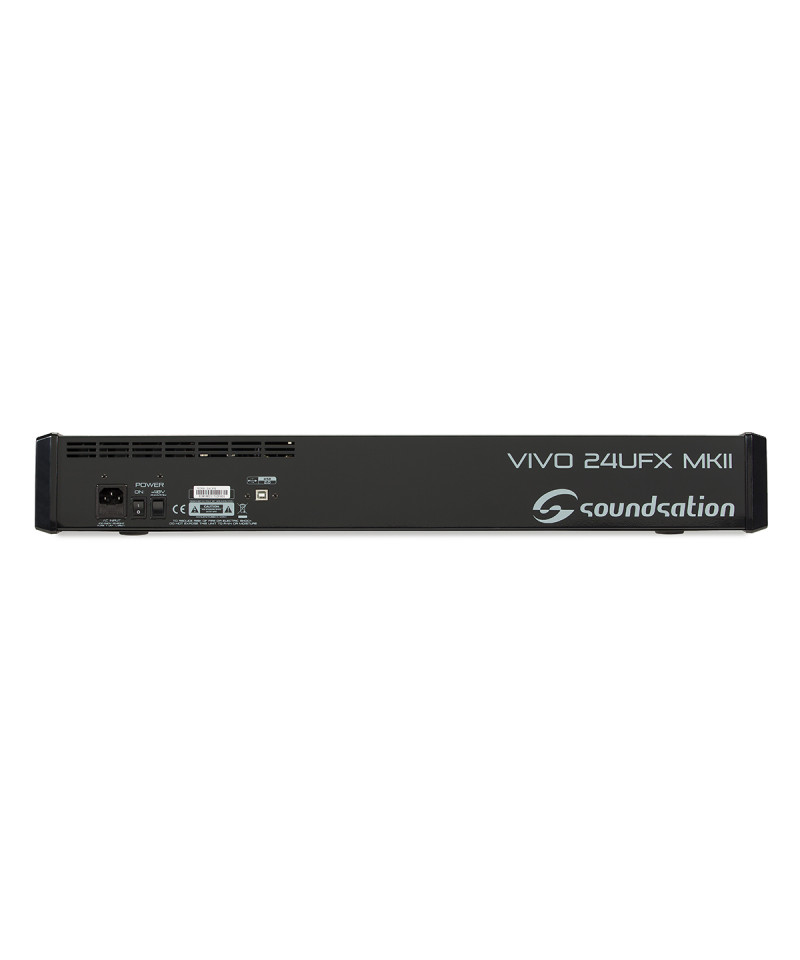

• Network connection: IEC RECEPTACLE STANDARD
• Merged: 100 -240 V ~, T 1.6 a L 250V
• Frequency response: 10hz - 55 kHz + /- 3 dB
• THD + N distortion: 0.0005% @ + 4DBU, 1 kHz
• Signal / noise ratio: 115 DB Interval Remarks: from +15 DBU a -35 DBU
• DSP Effects: A / D and D / A with 24-bit sampling
• Impedance of microphone channels: 1, 4 kohm
• Insert impedance: 2.5 kohm
• Impedance of all other entrances: > 10kohm
• Filter-Cut: 75 Hz, 18 dB / oct.
• Hi filter: + /- 15 db @ 12khz
• MID filter: + /- 15 dB frequency response 100Hz-8khz
• Filter: + /- 15 db @ 80 Hz
• Hi filters-Mid and the-MID (stereo channels):+ /- 15 db @ 3khz and + /- 15 db @ 500 Hz
