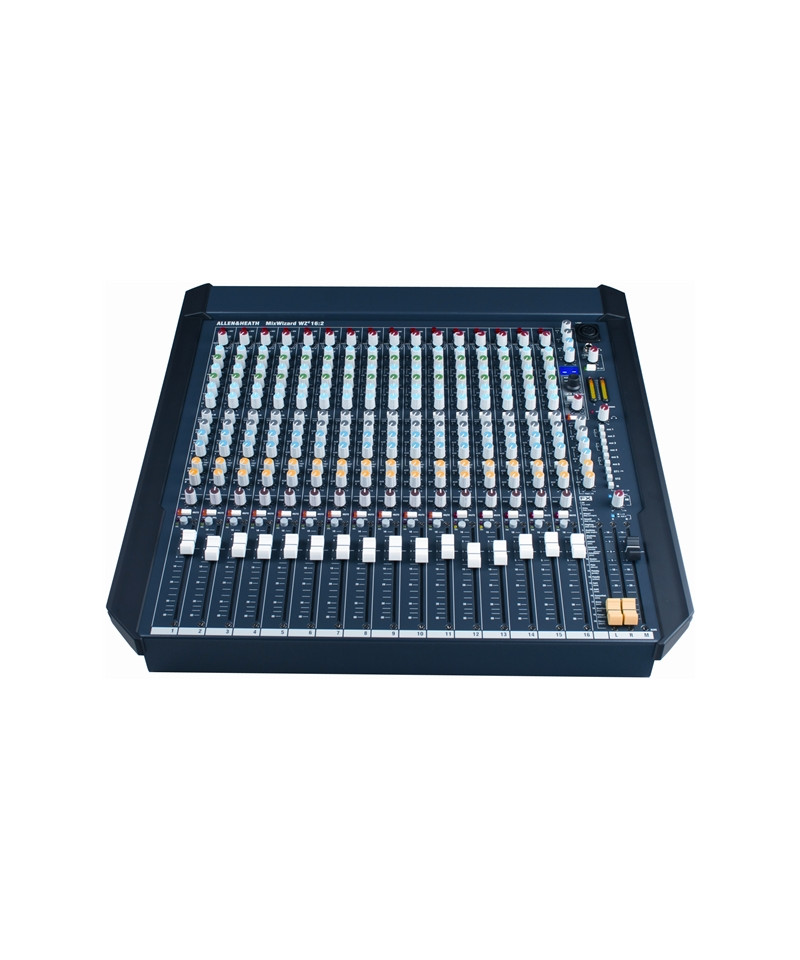

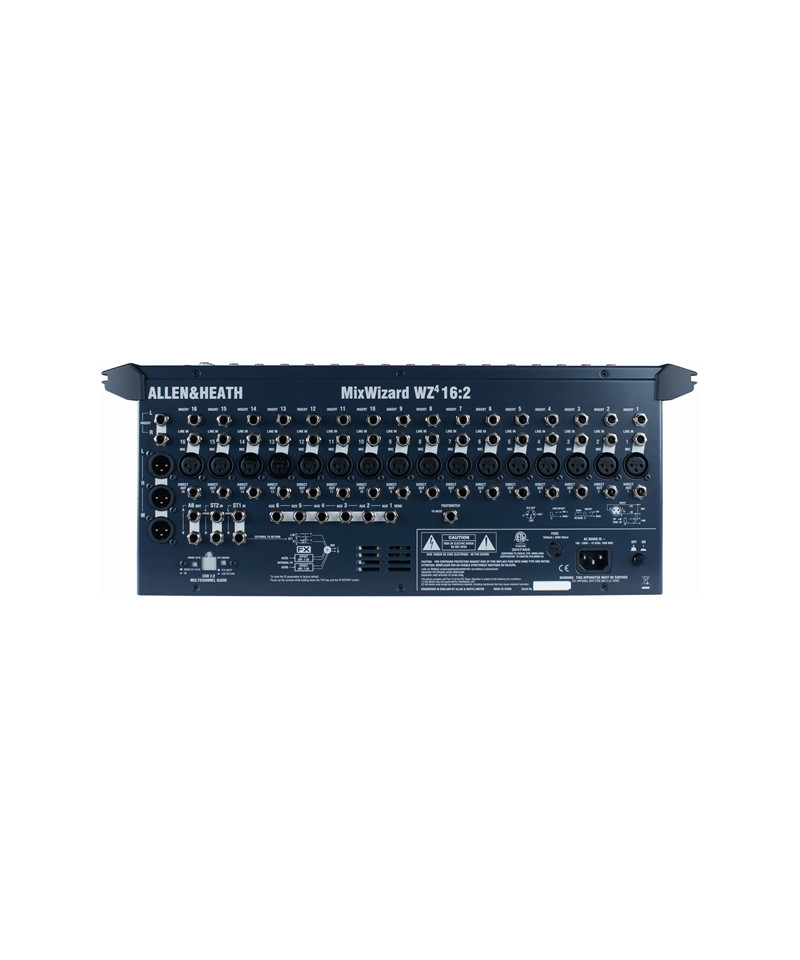

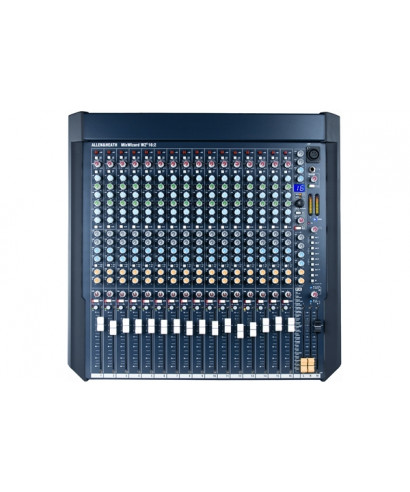

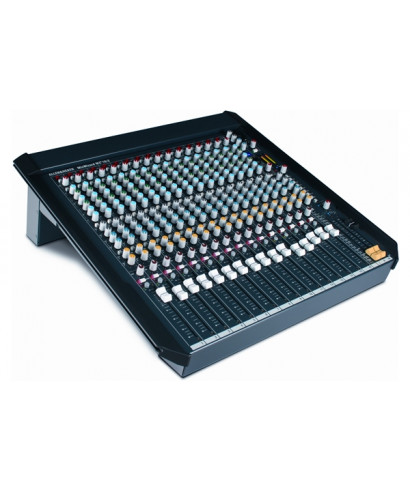

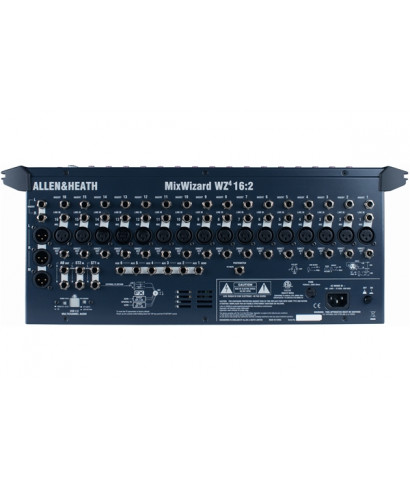

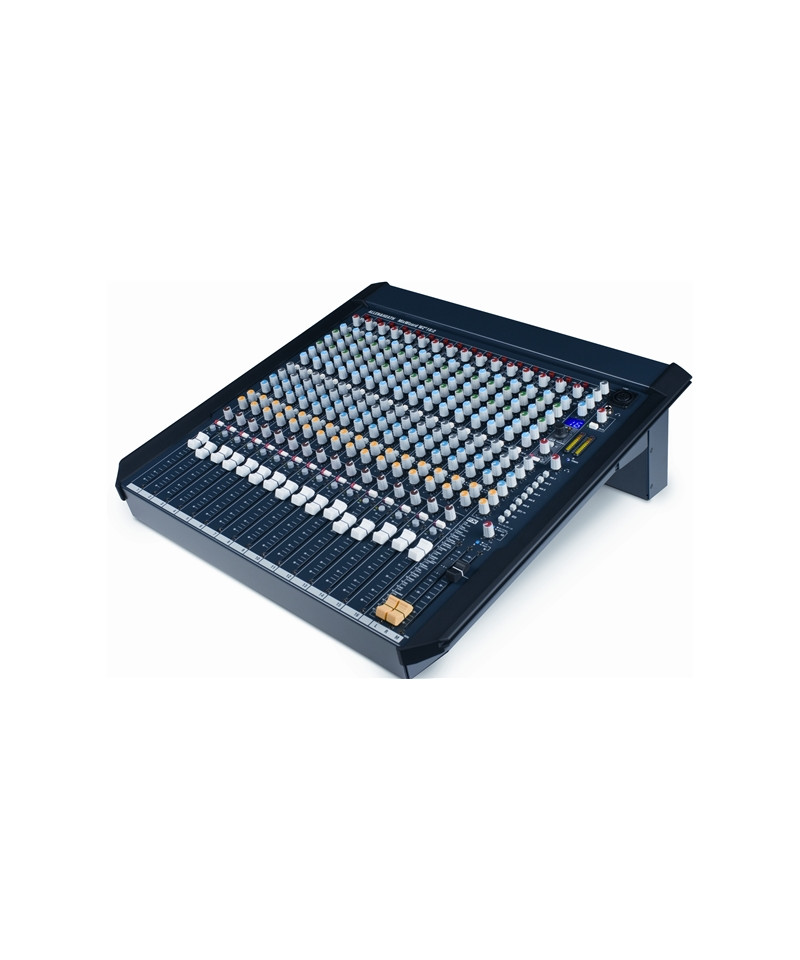

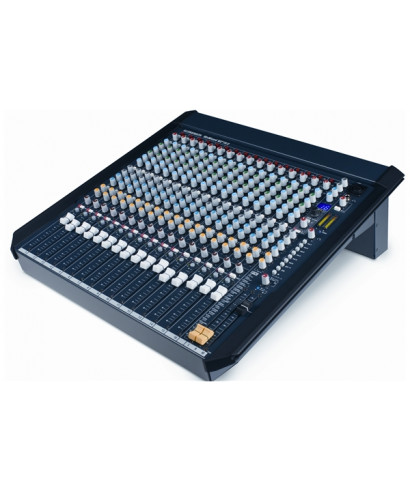

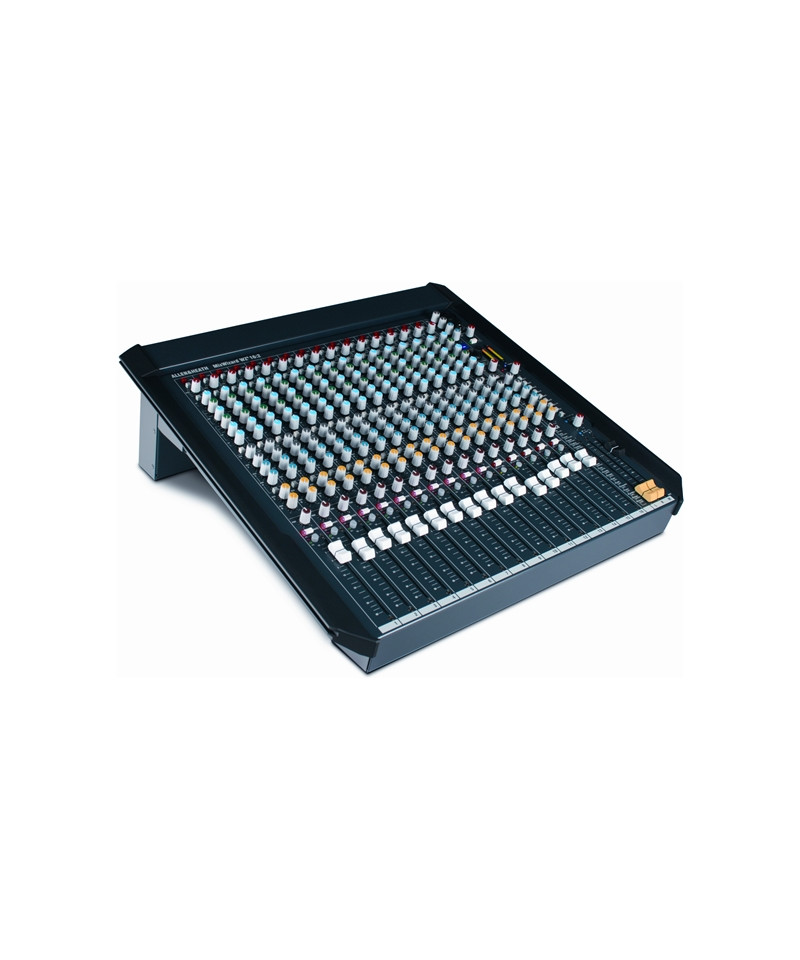

Allen & Heath presentsMixWizard4 16-2 DX

The WZ4 16: 2 It will be appreciated both by professional phones and less experienced users, as with its 16 MIC / Line inputs it manages to meet the demands of different types of applications. Mixer management simplicity and dimensions have made the mixer a best seller.

The WZ4 16: 2 has 4 EQ bands of which 2 parametrics for the range of medium, 100mm faders of excellent quality, 6 mandate AUX, 12 segments for the meter bar and the exclusive QCC connector to use the product in mode Desktop or mounted on rack or flightcase.

The new features of the 4 generation MixWizard include 2 new digital motors for effects with 20 studio quality presets, the IQ and multi-channel USB interface switch with the optional 16-channel recording card and Stereo playback.

For those who still looking for an analogical quality mixer with compact dimensions and a robust construction, Wizard4 the solution.

• Rack mountable 19 "
• 16 MIC / LINE Inputs with Balanced XLR / TRS JACKS, INSERT AND DIRECT OUTPUT
• 100mm fader
• 2 stereo inputs with separate gain and the ON key which allows its management independently or in stereo mode
• 4 EQ bands with 2 parameters for medium frequencies
• 6 mandate aux: 2 pre fader / 2 pre or post fader / 2 post fade *
• 2 stereo returns
• Fader dedicated mono allusencies: the sum of L + R to pilot a front speaker-Fill or subwoofers.
• Independent output a-B (2 track) for registration, monitor, etc.
• Double FX engine with 20 studio quality presets
• + 48V Phantom Power
• Signal display LED and Peak
• Microphone Talkback (XLR) with Trim Control
• Connection for the lamp
• Multitrack recording on USB with optional card
• Pedal connector (Mute / Unmute of the Return Effect ST1)
