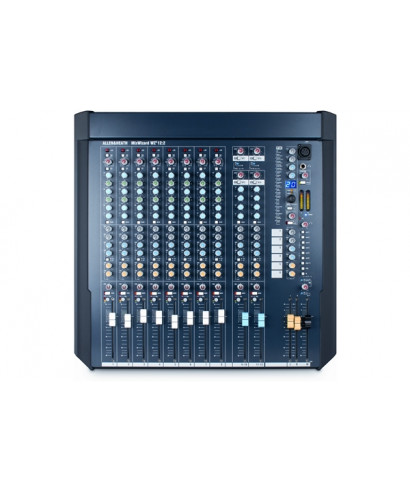

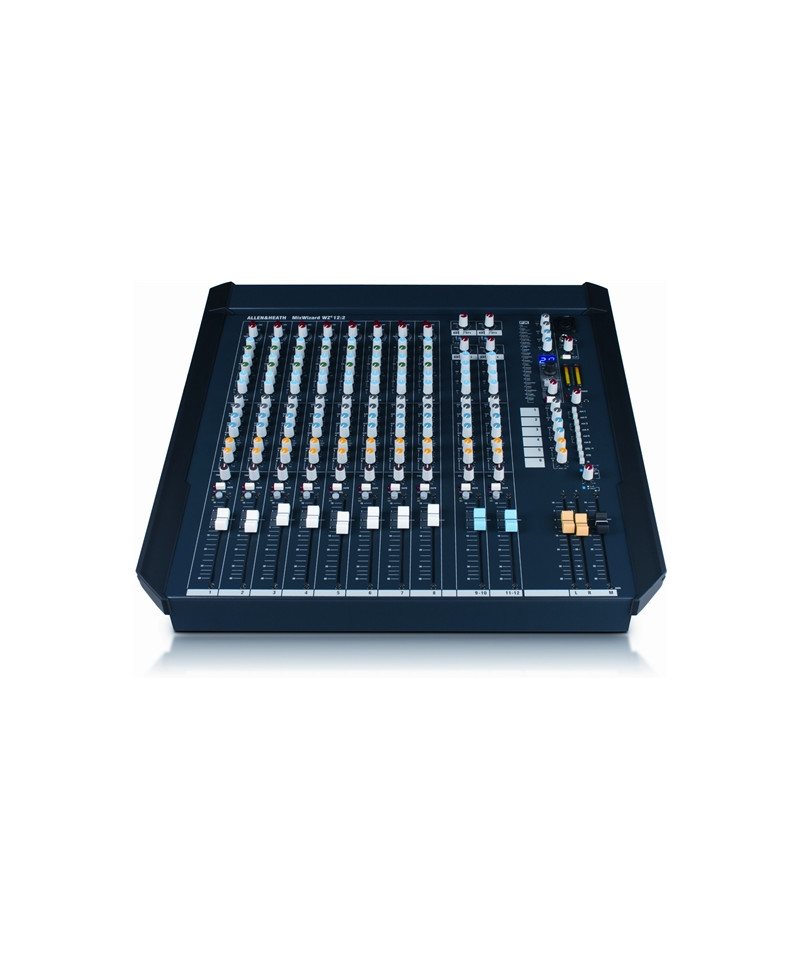

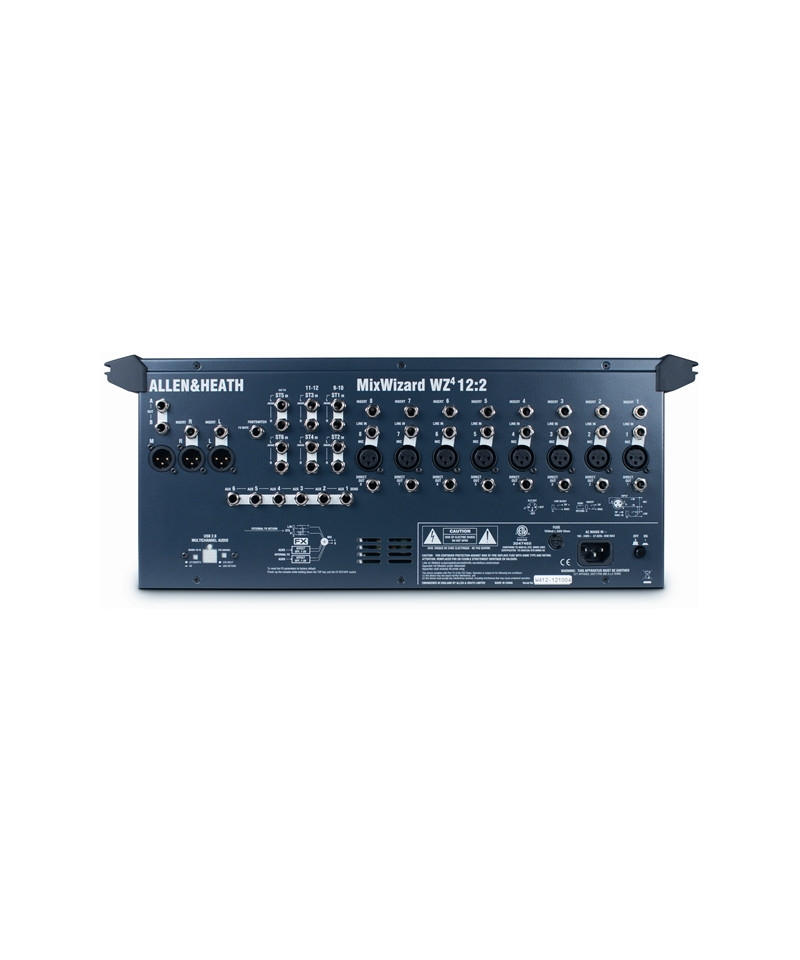

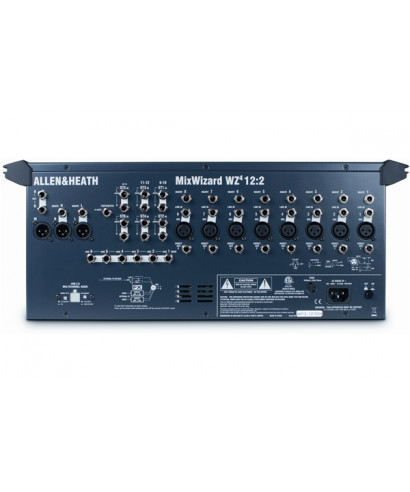

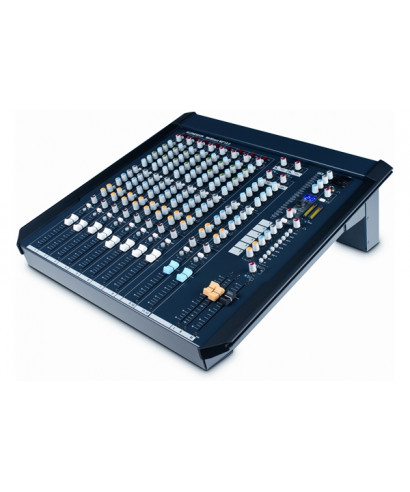

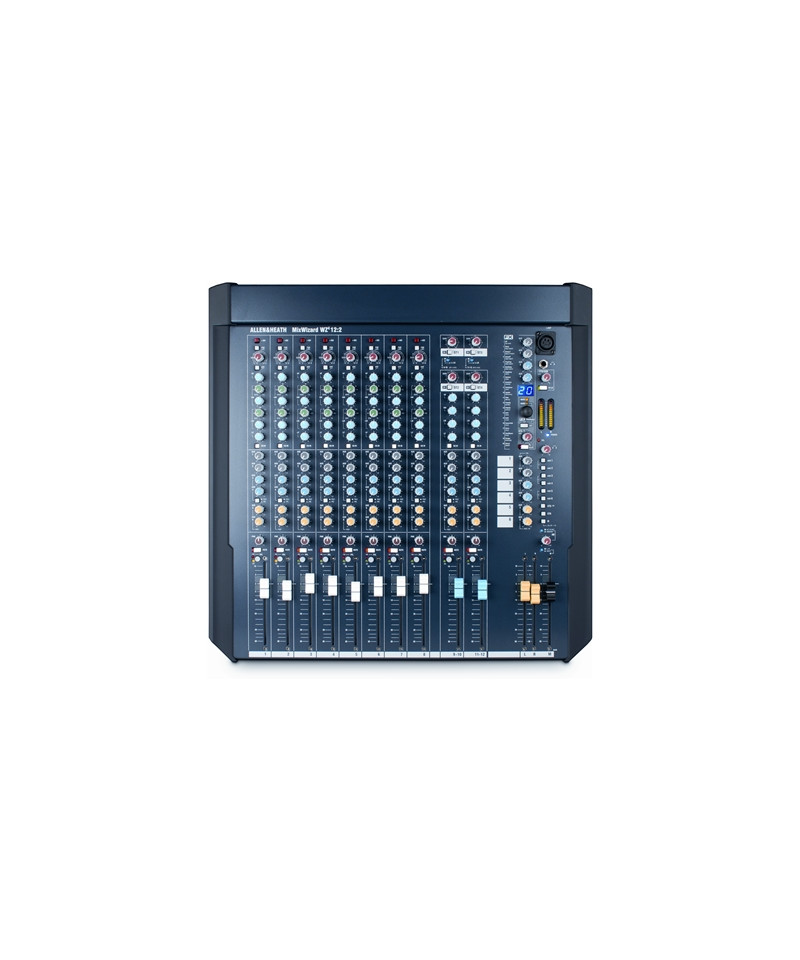

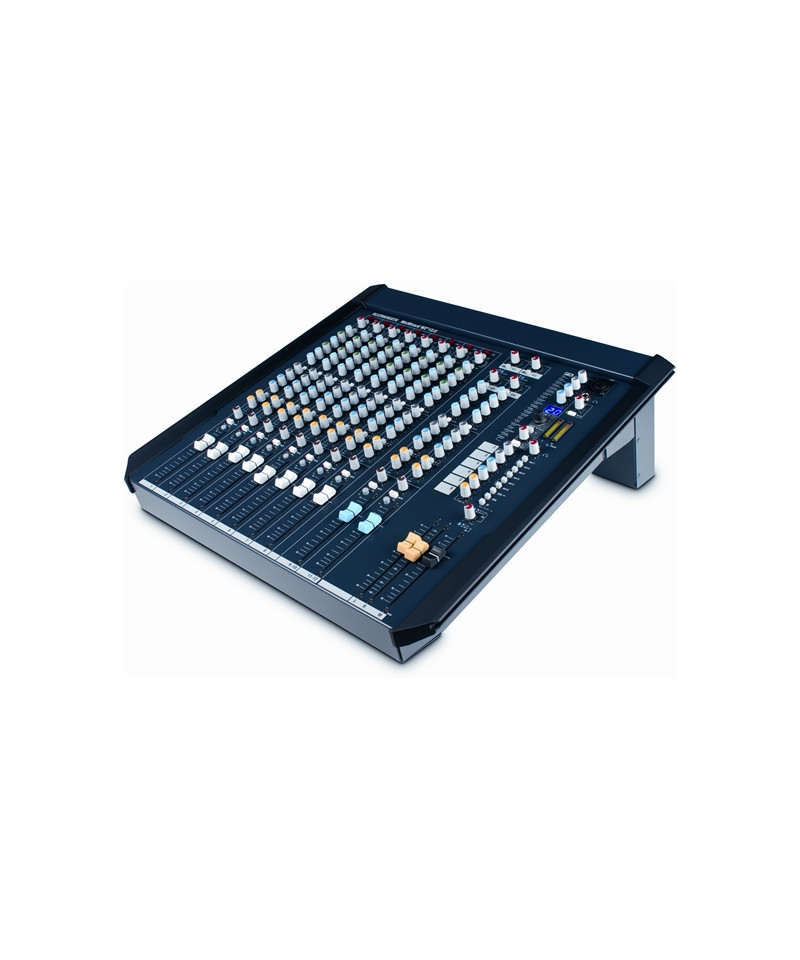

Allen & Heath MixWizard4 12-2 DX
Free Shipping
GAL61930301
New
Out-of-Stock
Pagamento a rate con
Allen & Heath presents MixWizard4 12-2 DX
The fourth generation of MixWizard characterized by a new design and performance and improved functionality including a switch to enable or disable EQ, 2 new digital motors for effects on 16: 2 and 12: 2 models, an optional card for playback and recording Multitrack from USB. All fourth generation mixWizards have the new In / Out switch for the EQ, an optional USB multi-channel interface with high quality audio multitrack sound card for easy audio recording and playback. All models maintain the appreciated microphone preamplifiers and 4-band EQ, of which 2 parametric for the media part, high quality 100mm faders, 6 auxiliary mandates, bar type bar type 12 Segments and the exclusive QCC connector for easy positioning of the mixer in desktop mode, rack or flushcase. The WZ4 12: 2 has 8 mono channels, 2 stereo channels and 2 stereo returns, faders for separate LR and mono outputs. E'Equipped with the new Dual FX Engines, a double engine for the effects with a 7-segment LED display, the TAP time and an encoder for adjusting the parameters of the selectable effects within a suite of 20 presets with a study quality.
The fourth generation of MixWizard characterized by a new design and performance and improved functionality including a switch to enable or disable EQ, 2 new digital motors for effects on 16: 2 and 12: 2 models, an optional card for playback and recording Multitrack from USB. All fourth generation mixWizards have the new In / Out switch for the EQ, an optional USB multi-channel interface with high quality audio multitrack sound card for easy audio recording and playback. All models maintain the appreciated microphone preamplifiers and 4-band EQ, of which 2 parametric for the media part, high quality 100mm faders, 6 auxiliary mandates, bar type bar type 12 Segments and the exclusive QCC connector for easy positioning of the mixer in desktop mode, rack or flushcase. The WZ4 12: 2 has 8 mono channels, 2 stereo channels and 2 stereo returns, faders for separate LR and mono outputs. E'Equipped with the new Dual FX Engines, a double engine for the effects with a 7-segment LED display, the TAP time and an encoder for adjusting the parameters of the selectable effects within a suite of 20 presets with a study quality.
- Rack mountable 19 "
- 8 MIC / LINE INPUT WITH BALANCED XLR / TRS, INSERT AND DIRECT OUTPUT
- 100mm fader
- 2 double stereo input with separate gain and switch or to select the inputs individually or mix them together
- EQ 4 bands with 2 Sweepable Mids
- 6 Aux Send: 2x Pre Fade / 2x Switched / 2x Post Fade
- 2 STEREO RETURN
- Exit Fader Mono dedicated: can be activated to provide mono L + R signal for a speaker, or sub bass signals
- Independent AB output for 2 track recording, Foldback monitor, speaker, etc
- Bar type meter-graph tri-12 segments
- TWIN FX motors with 20 Quality FX presets
- PHANTOM + 48V power supply
- LED Signal and Peak
- Lamp connection
- USB multitrack recording option
- Footswitch connector (activates / deactivates FX Return ST1)
- Size: 531 x H195 x 508mm
- Weight: 11kg
