Active case 10 "

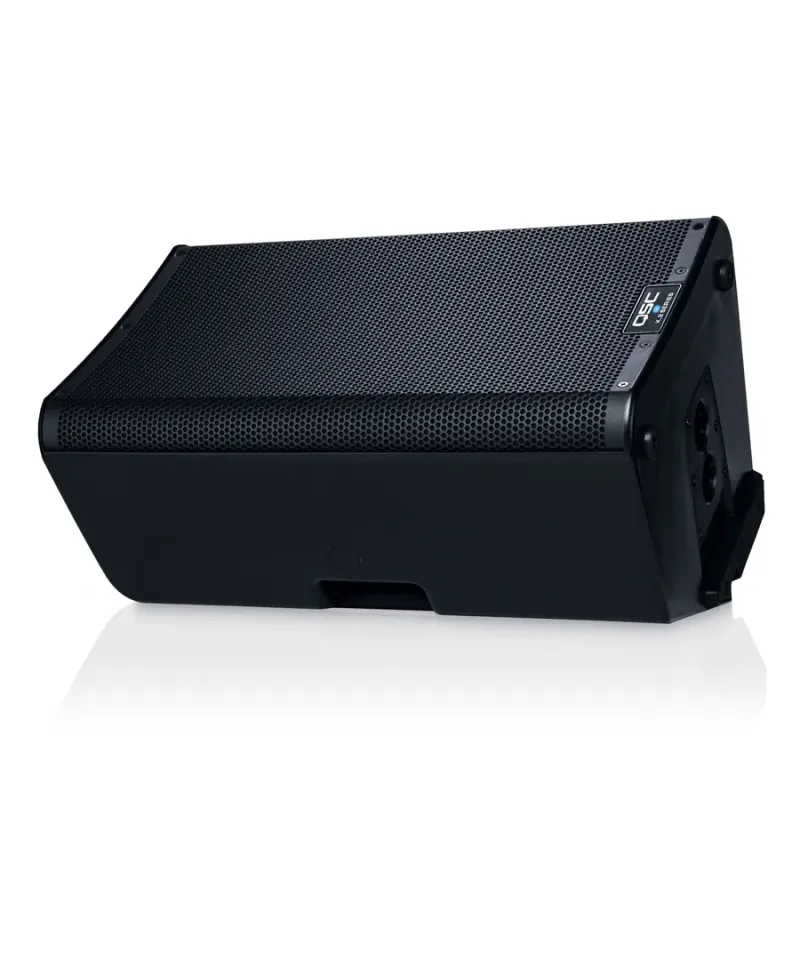

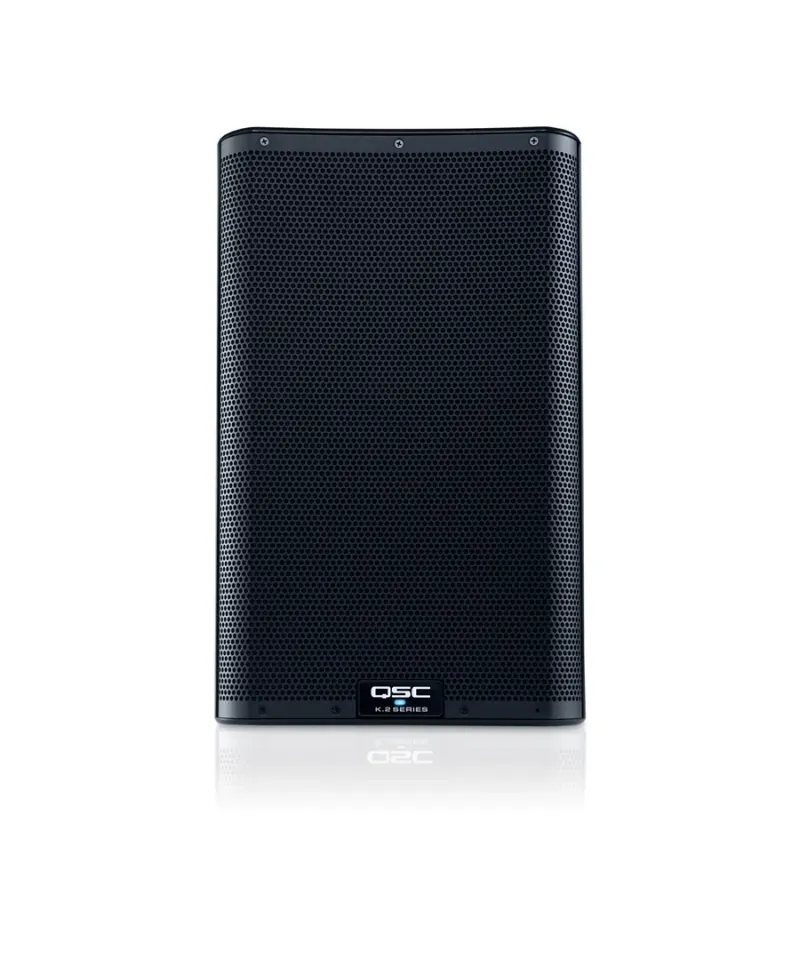

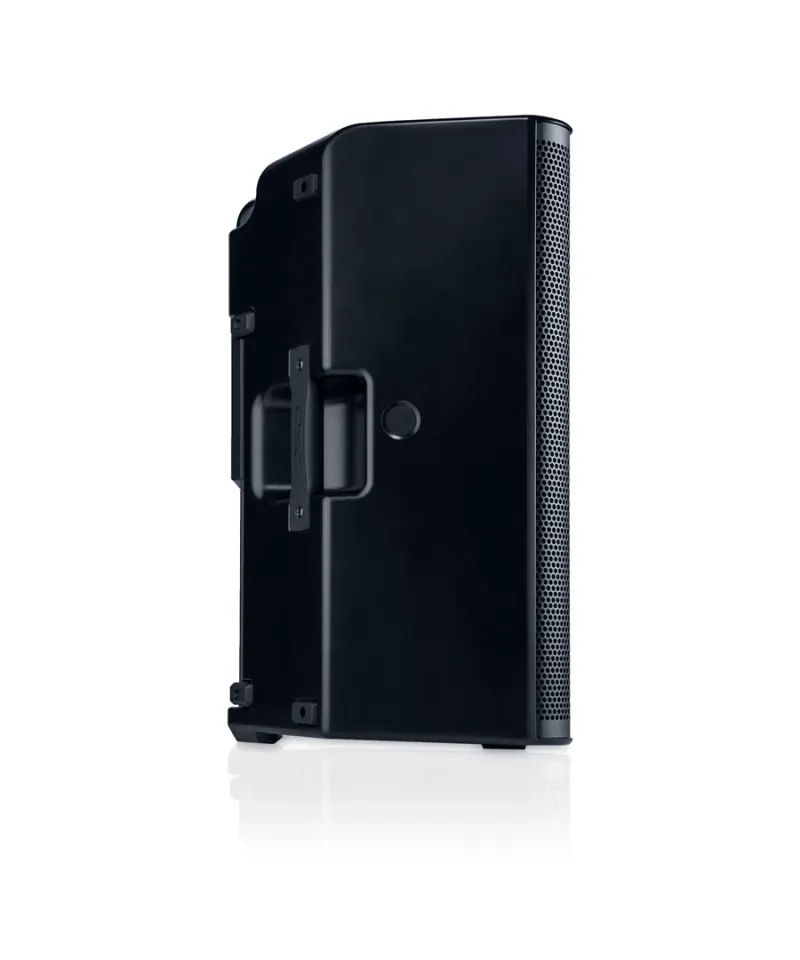

QSC presents K10.2

To start, each model is equipped with a 2000 Watt power module carefully combined with high performance woofers and compression drivers. DMT (Directivity-Matched Transition) ensures regular coverage over the entire listening area. The advanced DSP on board provides the intrinsic correction and the advanced system management to further optimize performance. The K.2 series can work both as main pa as as a ground monitor. Each model can also be suspended, fixed to the wall or on truss, or positioned on a support for speakers, both straight and inclined by 7.5 °. This flexibility makes it a smart choice for a wide range of live audio applications.

• Configuration: 2-way multi-function speaker
• LF transducer: 10 "(254mm)
• HF transducer: 1, 4 "compression (35.6mm) with titanium diaphragm
• Frequency response (-6db): 56Hz - 20khz
• Frequency interval (-10db): 50hz - 20khz
• Rated cover angle: 90 ° Axisymetric
• Max nominal SPL: 130db @ 1m, peak 124 db @ 1m, continue
• Amplifier: 1800W (LF), 225W (HF) in class D
• Cooling: Low noise variable speed fan

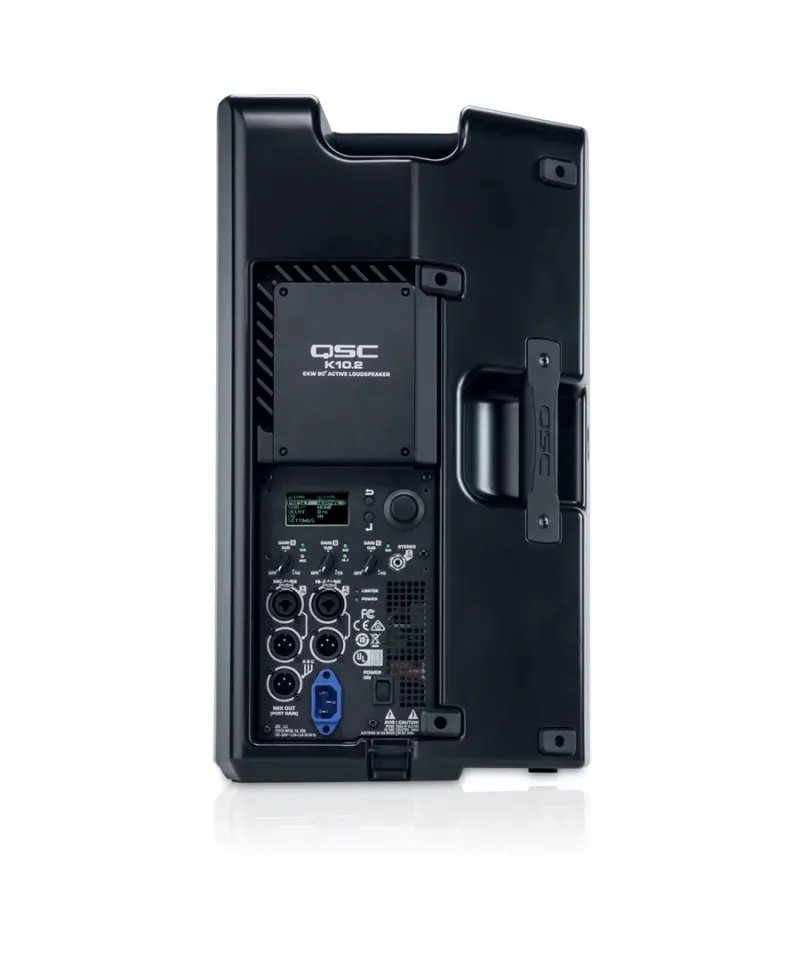

• Controls: Power, 3x level, rotary encoder (push), 2x selection buttons
• Indicators: LCD display 1.75 "X 1", 2 Power LEDs (front and rear), 3 INPUT SIGNAL LED, INPUT MIC LED, INPUT HI-Z LED, LED Limiter
• Connectors: 2x XLR / F, 1/ 4 "Combo (MIC / Line and Hi-Z / Line, 1x Trs Jack 3.5mm, 2x XLR / M (output loop-Thru), 1x XLR / M (output mix)
• Power: 100 - 240V, 50 - 60hz
• Cabinet: ABS resistant to impact
• Attack points: 2x m10 plus pull-Back
• Color: Black (RAL 9011)
• Grid: Coated steel
• Size: 519 x 320 x 300mm
• Weight: 14,5kg
