BLACKED CASE WITH DSP 12 "1800W

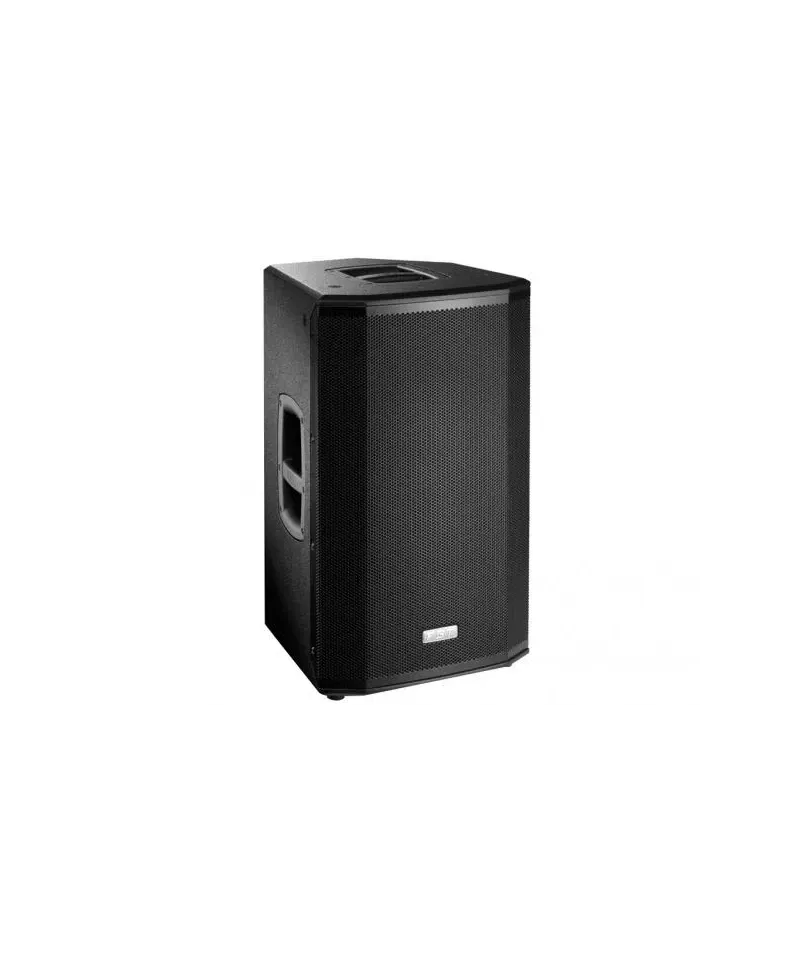

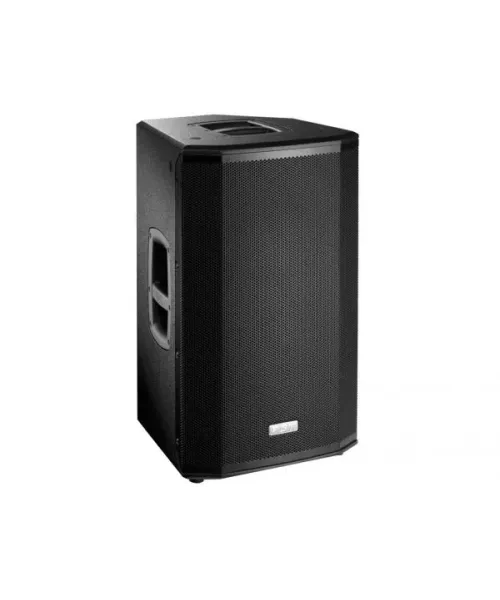

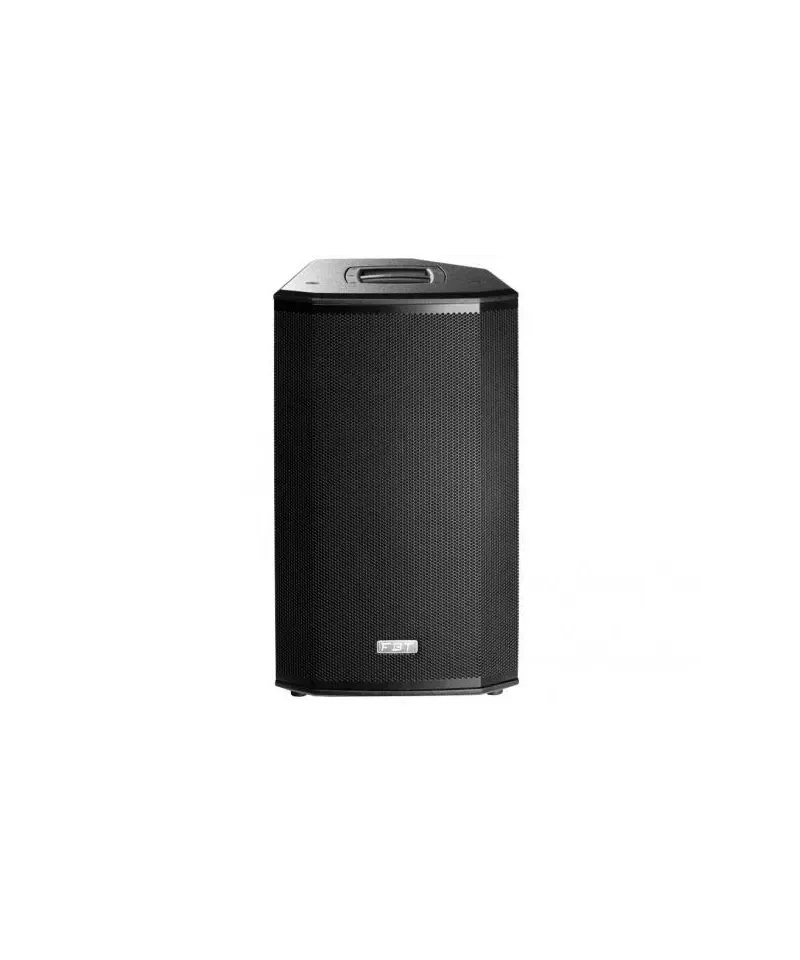

FBT presents Ventis 112a

For the Ventis range, quality and flexibility are the watchwords. Based on a powerful combination of compression B & C drivers and woofers FBT At long hiking, 115, 112 and 110 models are two-way, design Bass Reflex housed in 15mm birch plywood houses. A full design-Grille supported by an acoustic cloth with special treatment offers the characteristic style for which FBT It is known, while completely rolling trumpets with constant directivity guarantee precise coverage. The power for venti-active Ventis models is provided courtesy of a specially designed Made in Italy switching amplification module. Low frequencies are provided by an efficient RMS 700W (Full Bridge) amplifier in class D, which works with a very low THD. For the HF stage, a 200W RMS performance comes from a meticulously built H / AB class design.

• Design Bass Reflex 2 way, blamed
• Final power: 700W RMS LF in class D and HF 200W RMS in class H / AB - 1800W (peak)
• Digital Signal Processor with graphic display
• Birch multilayer cabinet 15mm (0.59 ") Reinforced scratch resistant internally
• High efficiency switching power supply

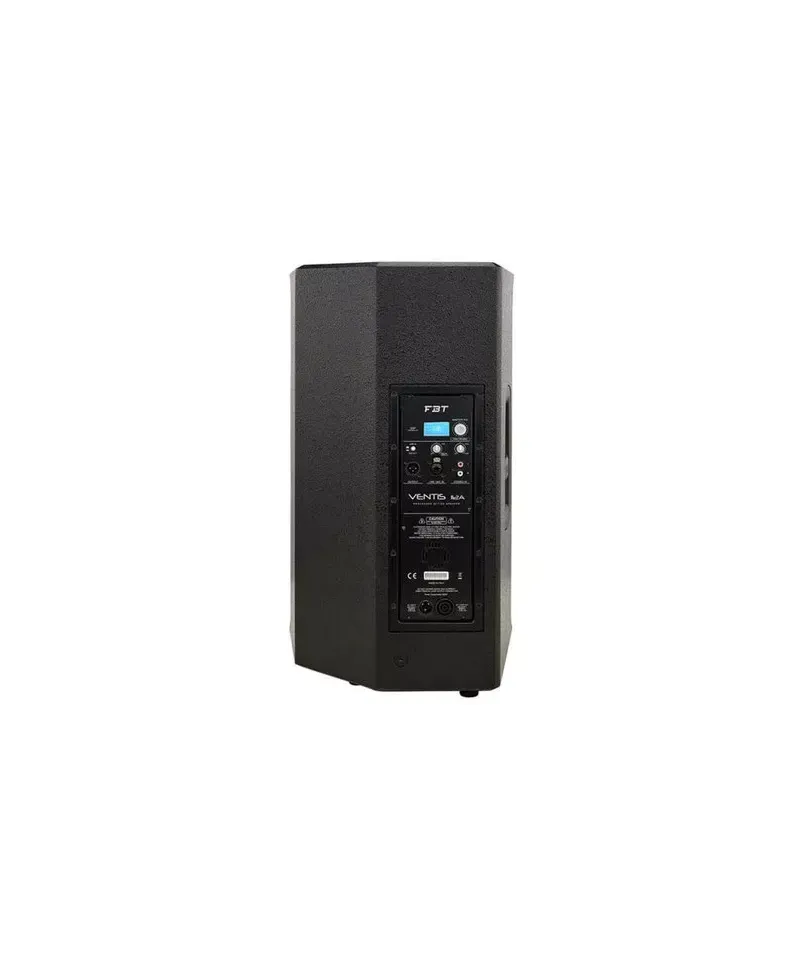

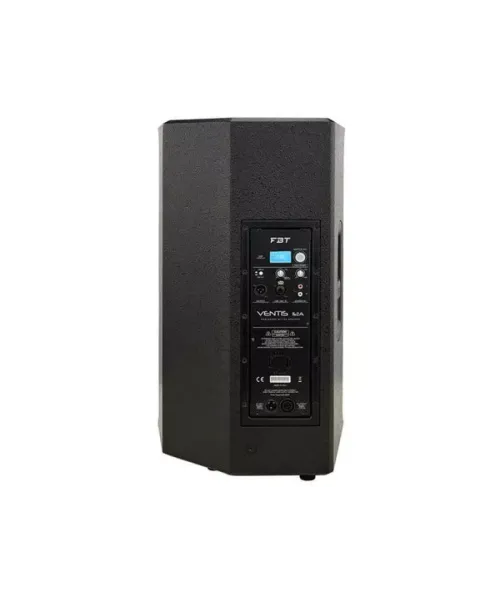

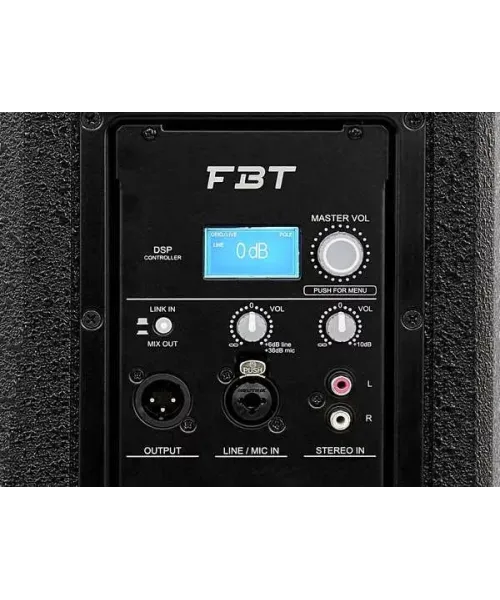

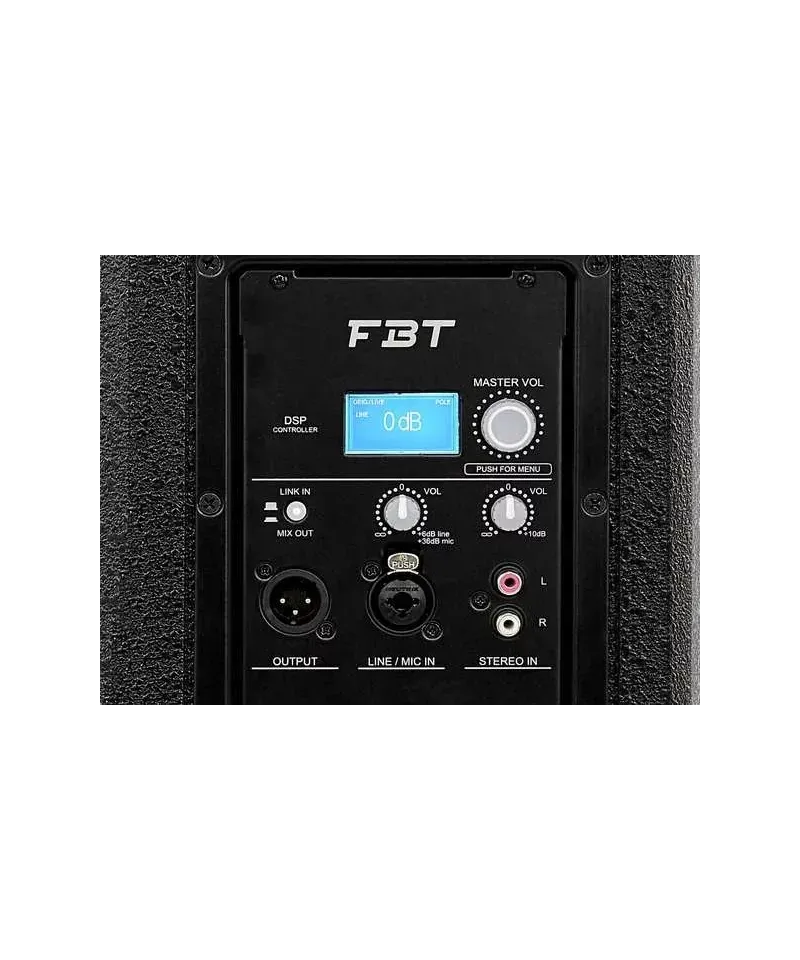

• Control Panel with Balanced Input XLR / Jack, XLR Link Out, 2x Volume, RCA Stereo Input, DSP Display With Rotary And Push Encoder
• Woofer LF 250mm (12 ") with 50mm coil (2.5") made for FBT
• HF 25mm driver (1") B & C compression with 36mm coil (14, ")
• Frequency response from 48hz to 20khz
• SPL Max (continuous / peak): 126 / 133db
• 80 ° H x 50 ° V trumpet with constant directivity

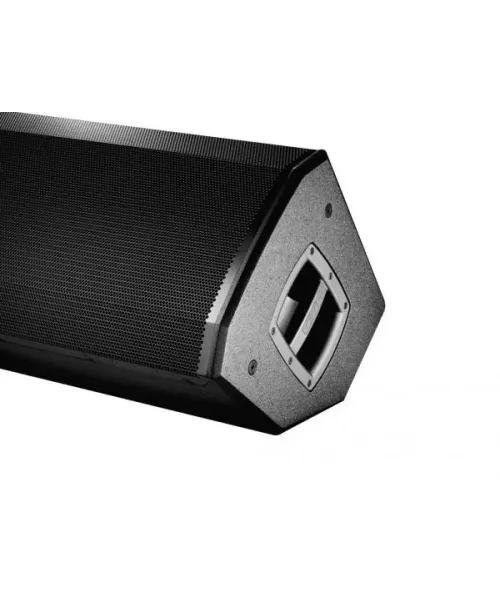

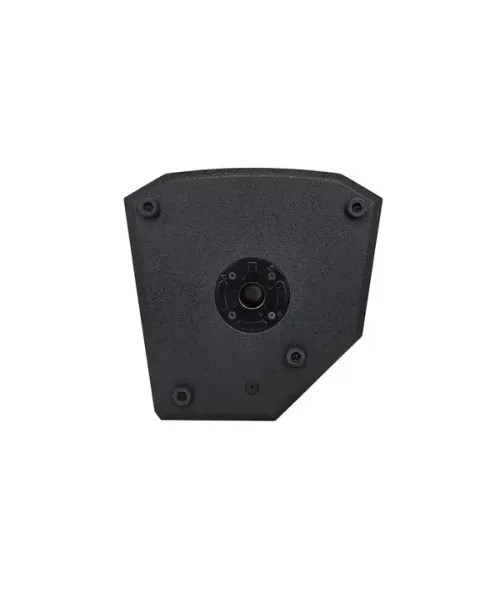

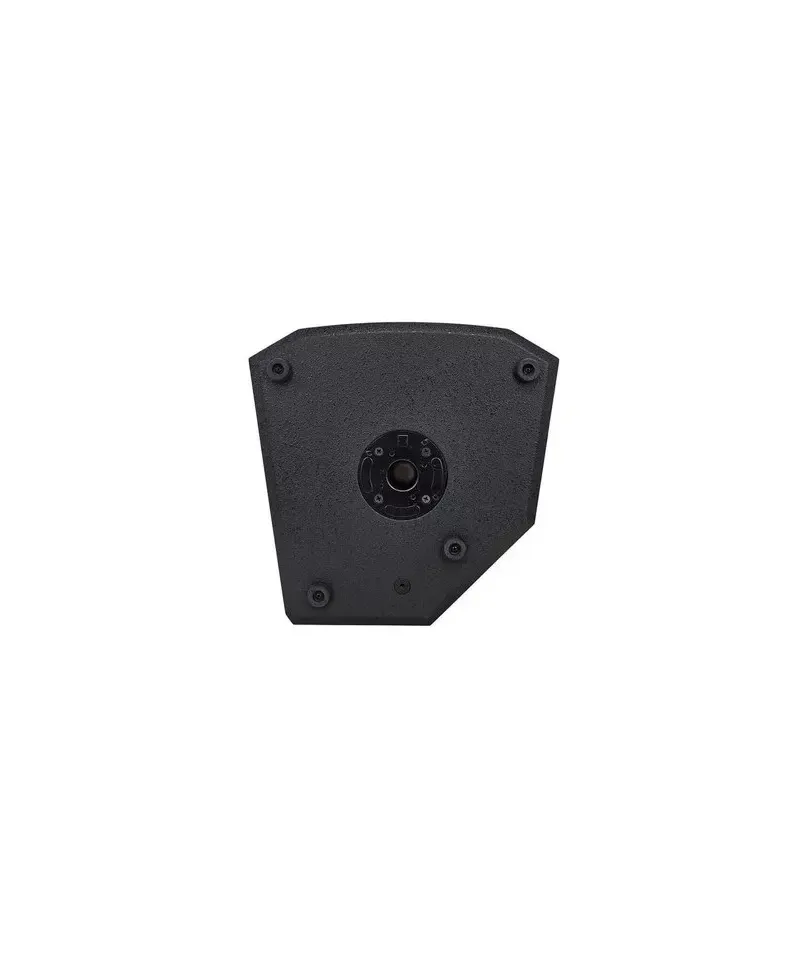

• 6x suspension points M10, optional wall mount, flange for standscreen 35mm (1 3/8 "), 1x aluminum handle

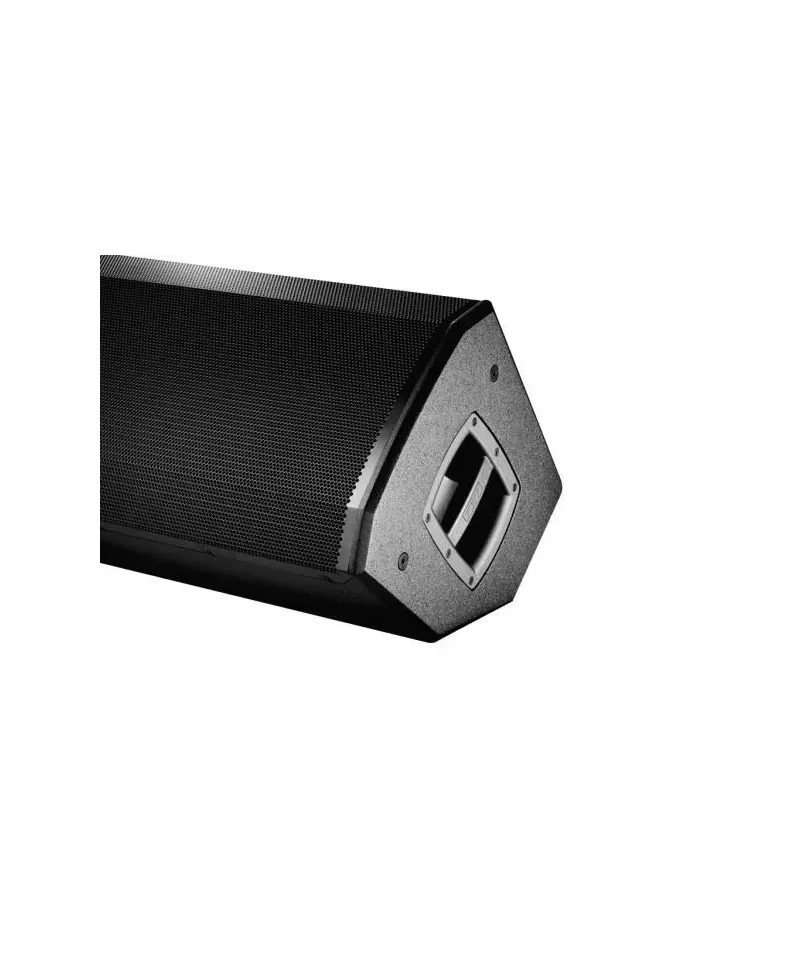

• Tiltable 45 ° for use as a monitor Stage
• Size: 387 x 665 x 380mm
• Weight: 20,6kg
