Active diffuser

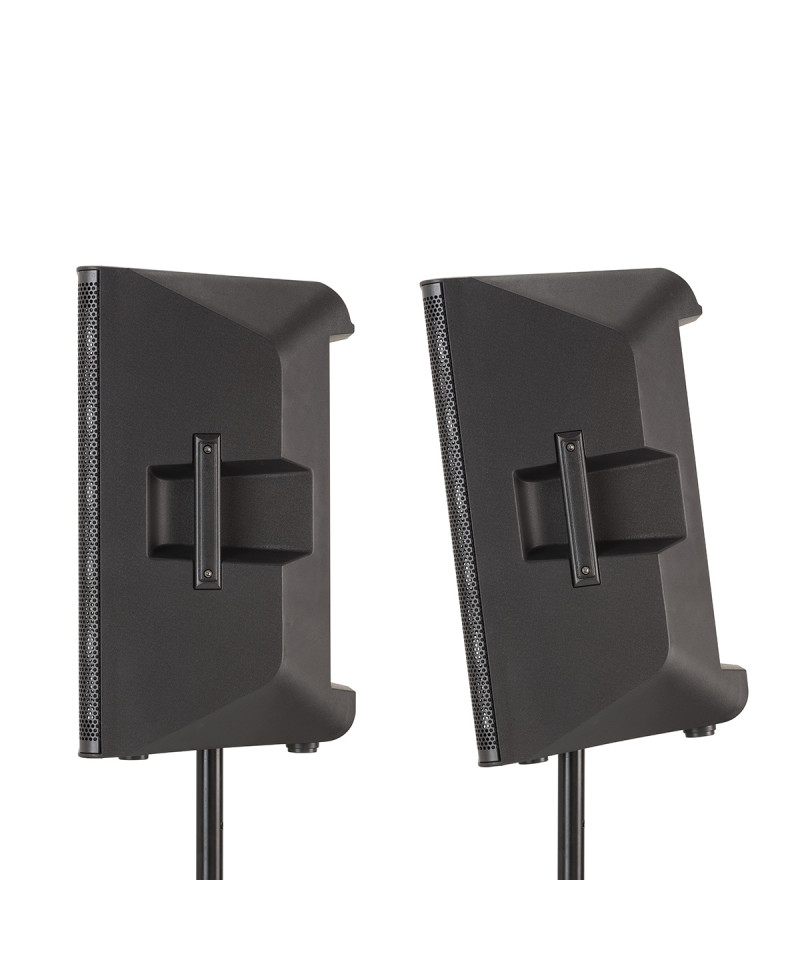

SOUNDSATION presents Hyper-PRO 12 ACX

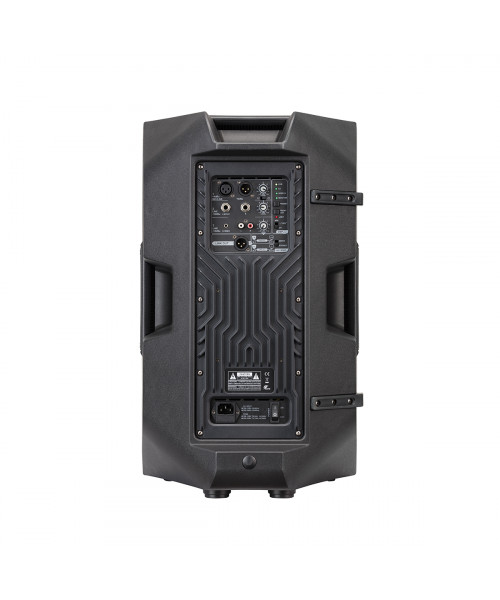

The active bi speakers-Amplified of the Hyper series-Pro Acx are part of the wide range of products SOUNDSATION Pro Audio. Peak powers of 1600 W and 1800 W respectively for models from 12 "and 15", selected transducers, powerful DSP, advanced coating material and scratch-resistant black paint: all the combined ingredients wisely to offer the best to professionals pi demanding. The 12 "and 15" woofers of the Hyper series-Pro ACX are dynamic and powerful; the driver from 1.4 " CELESTION make the high defined and crystalline frequencies. Sound control through the extremely simple and intuitive DSP. Pressing the Preset button can be chosen from 4 audio programs (Live, DJ, Speech, Monitor); The character of the Camper sound and the corresponding LED will monitor the selected mode. The rear panel, organized in a very simple way and with controllable inputs separately, allows the choice of devices to be connected as a microphone, a mixer, a tool, a CD player, a smartphone etc. In the three panel sections you can quickly set input levels with earning controls, regardless of each other.

• Active Diffuser BI-Amplified
• 1600W peak power
• Amplification: Class-D (low frequencies); Class-AB (high frequencies)
• Compression driver from 1.4 "Celestion
• DSP with 4 presets (Live, DJ, Speech, Monitor)
• Balanced XLR MIC / Line Entrance with Thru XLR Output, Stereo Line Input with 2x Jacks from ", stereo input with mini-Jack and RCA, all with independent level controls
• Link output with mono / stereo selection possibility
• Blue front LED with ON / OFF switch
• Sturdy reinforced polypropylene cabinet with black anti paint-scratch
• 3 M10 fixing points for suspension (2 on the top, 1 On the back)
• Handles: 1 On the top, 2 on the sides

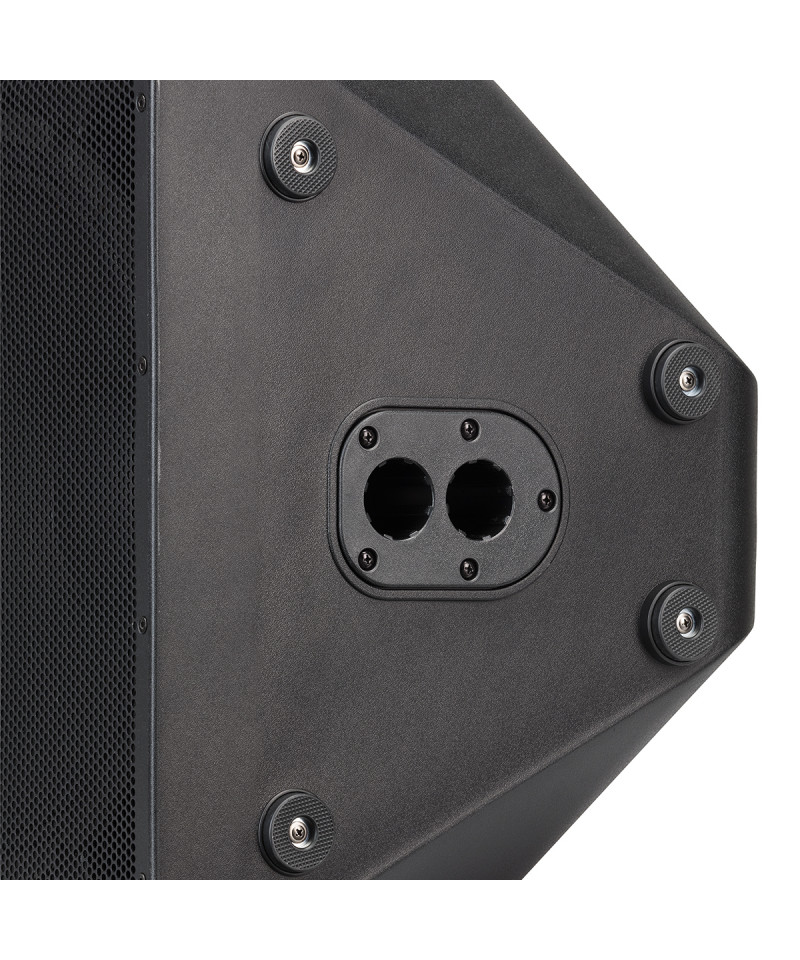

• Double hole for mounting on pole / tripod: standard 36mm, 0 and 7
• Frequency response: 50hz - 20kHz / -10db
• Maximum SPL: 134 dB
• Low frequency transducer: 12 "woofer
• High transducer-Frequencies: Compression driver from 1.4 "Celestion
• Angular cover: 90 x 90
• Low frequency amplifier: Class-D 350W RMS - 1400w peak
• High frequency amplifier: Class-AB 50W RMS - 200w peak
• Power: 100-120vac / 220-240vac
• Power consumption (medium / peak): 800W / 1600W
• Fuse: T6.3AL 250V (100-120V) / T3.15AL250V (220-240v)
• DSP: 4 Preset (Live, DJ, Speech, Monitor)
• Input connections: 1x XLR connector, 2x 63mm jack, 1x mini-Jack, 1x Pair of RCA
• Output connectors: 1x XLR Thru Output (Input 1), 1x XLR Link Output with mono / stereo selection
• Cabinet material: Polipropolene
• Grid: Steel /1.2mm
• 3 M10 fixing points for suspension (2 on the top, 1 On the back)
• Handles: 2 on the sides, 1 upper side
• Double hole for Tripod / Palo: D36MM Standard, 0 and 7
• Diffuser size (LXAXP): 362 x 597 x 347 mm
• Package size (LXAXP): 405 x 645 x 395 mm
• Diffuser weight: 15.5 kg
• Packaging Weight: 17 kg
