Diffuser BI-Amp

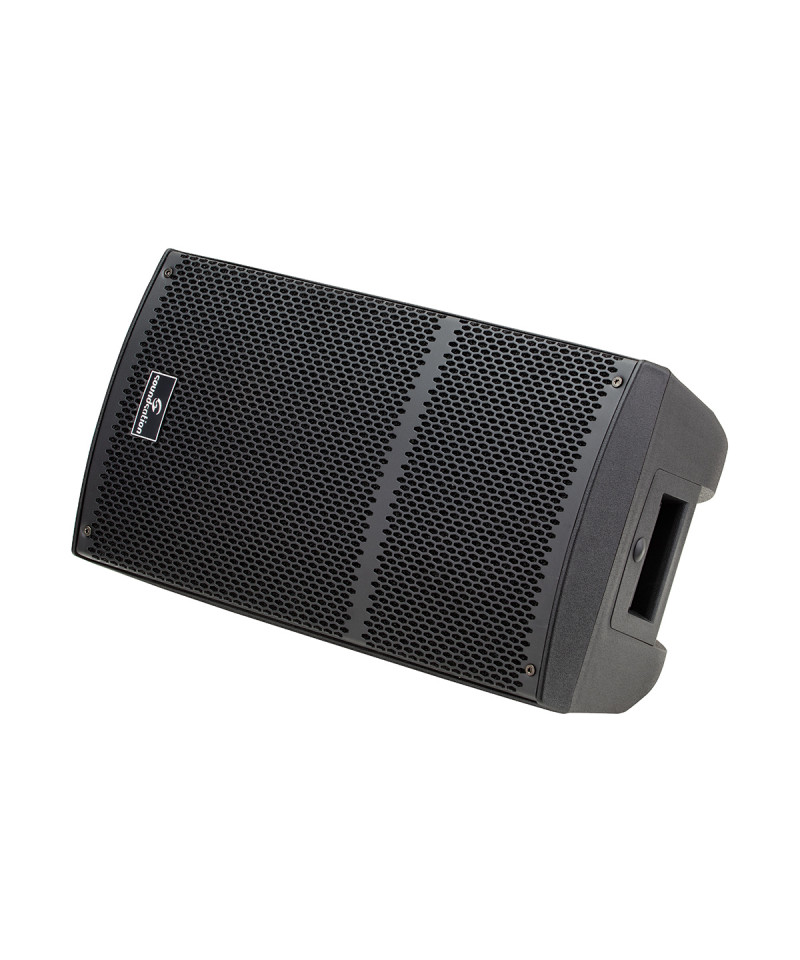

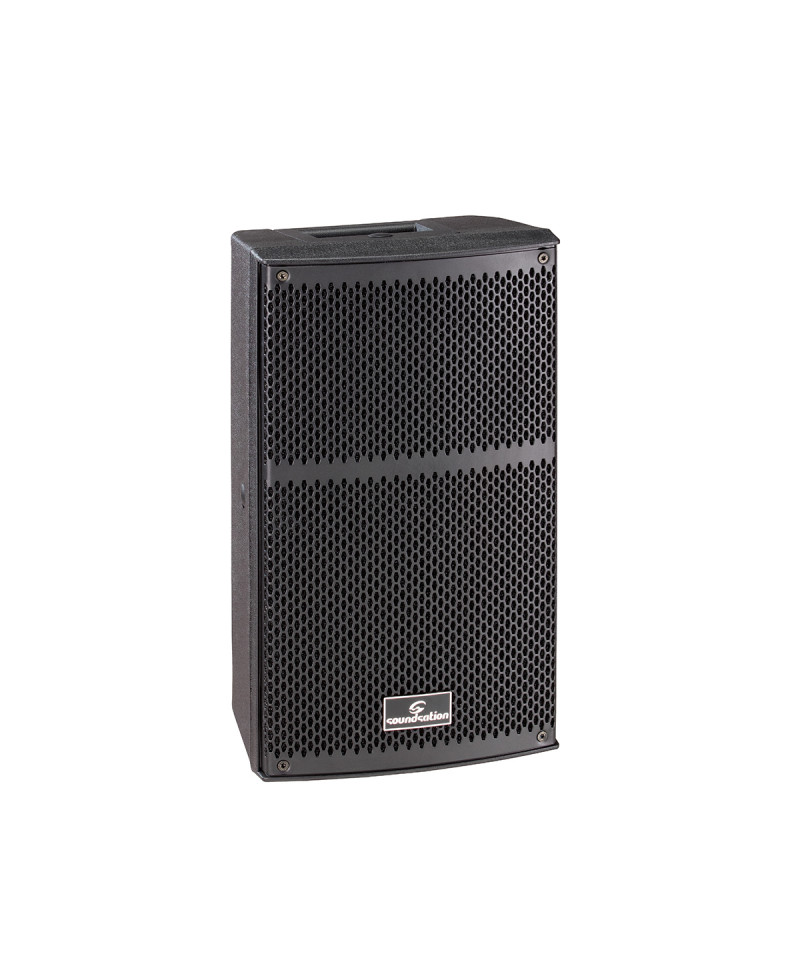

SOUNDSATION PresentsHyper Top 8A

The HY series for the result of years of experience accumulated by Soundsation in the field of Portable Sound Systems. This line of speakers built with a sturdy, light and elegant polypropylene cabinet with a full-Metal grille and sound-absorbing material. The modern design, in line with the most recent industry standards, offers both an attractive design and excellent sound quality. All the line equipped with a class D and switching power amplifier, which offers high power efficiently and with a reduced weight (with the exception of model 6). Microphone and line inputs allow you to connect different equipment, which are microphone, mixer or media player. The 4 points of anchor M8 (1 by side), 1 Handle in the upper part and the 36mm stand hole, make this diffuser ideal for both fixed installations and portable applications.

• Diffuser BI-2-way amplified
• High resonenza, robust and lightweight polypropylene cabinet with full grid-Size in metal and sound-absorbing material
• Two 480W class D amplifiers (432W + 48W)
• 8 "woofer with driver from 1"

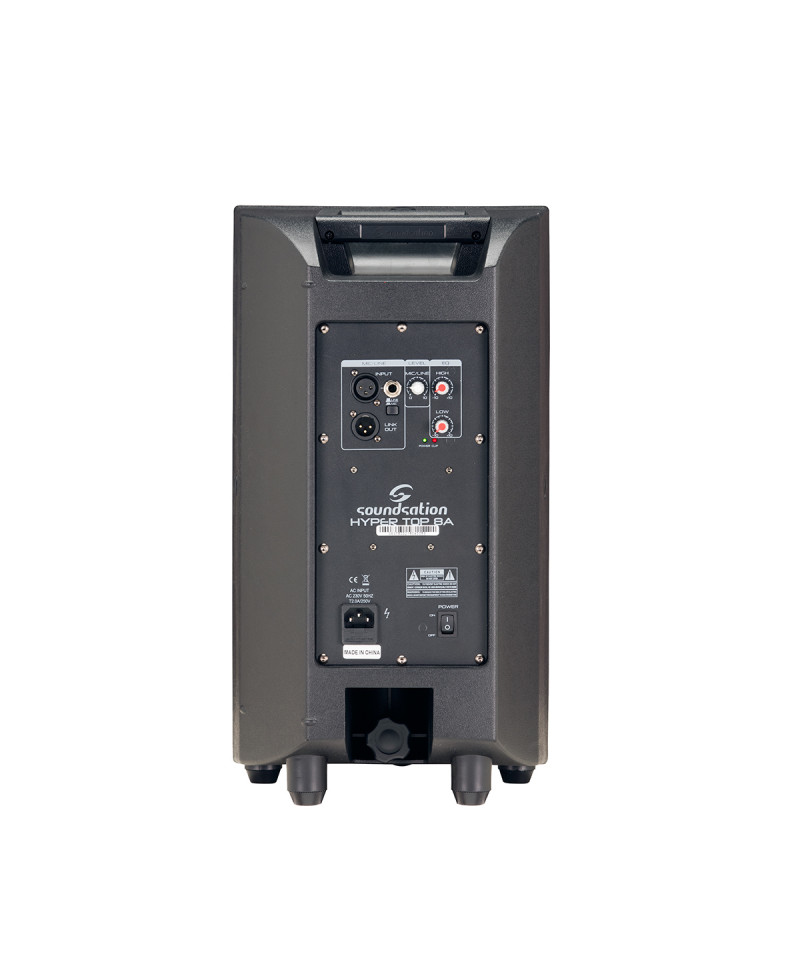

• Microphone / Line XLR + Jack Inputs
• XLR Link Output Output
• Volume controls and equalization HI and LOW
• Usable as a 30/45 internship monitor
• The handle in the upper part makes it easily transportable
• 36mm stand hole
• 4 M8 anchor points, positioned on CASCIUN side
• Dimensions (LXAXP): 270 x 495 x 270 mm
• Weight: 7.2 kg
• Direttivit: 90 x 60, symmetric
• Frequency response [- 10dB]: 56hz - 19khz
• Frequency response [- 3dB]: 61hz - 19khz
• Max SPL: 111db
• Sensitivity: 91DB2 Class D amplifiers
• Power (peak / rated): 480W (432 + 48W) / 240W (216 + 24W)
• Crossover: 3.5KHz, 24dB / oct.
• Eqs: High (2.5khz, + /- 12 dB); Low (150hz, + /- 12 dB)
• LEDs: Power On (Green), Clip (Red)
• Power: 230vac - 50 Hz
• Minimum power absorbed: 120w
• Power connector: VDE with T2A fuse-250v
