Diffuser BI-Amp

SOUNDSATION Presents Hyper Top 12A

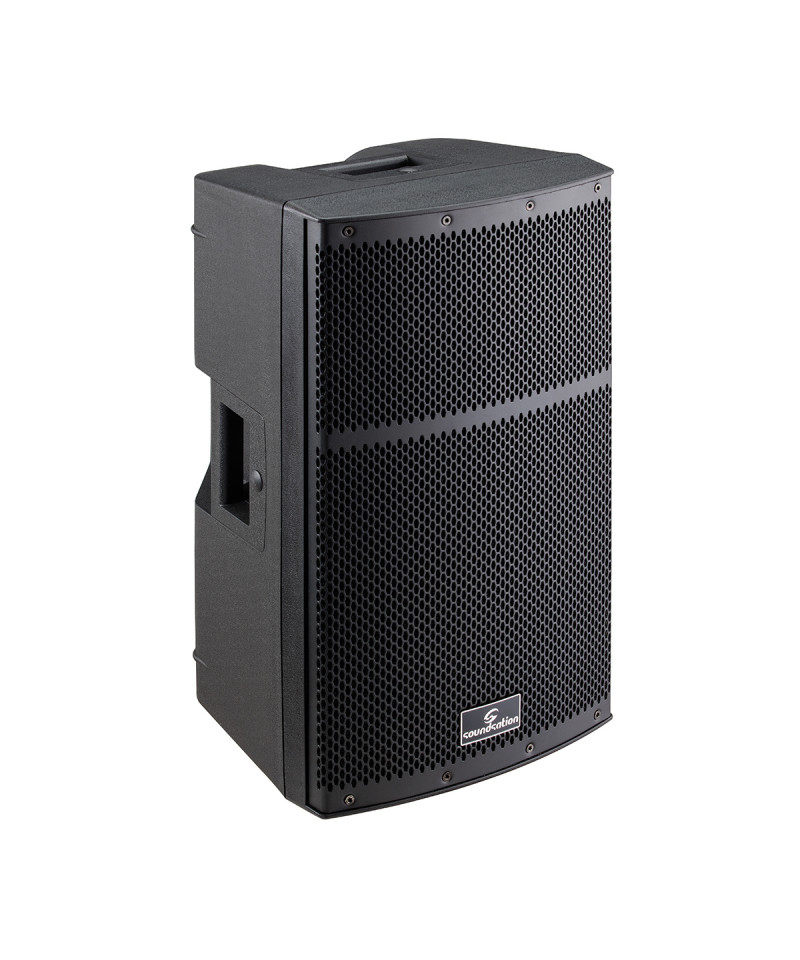

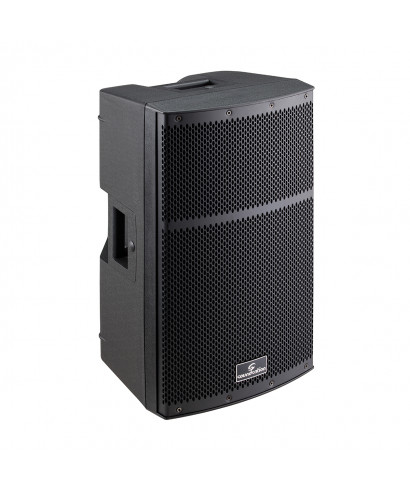

The Hyper series is the result of years of experience accumulated by Soundsation in the field of Portable Sound Systems. This speaker line is built with a sturdy, light and elegant polypropylene cabinet with a full-Metal grille and sound-absorbing material. The whole line is equipped with a class D and switching amplifier, which offers high power efficiently and with a reduced weight (except the model 6). Microphone and line inputs allow you to connect different equipment, which are Mixer or Media Player microphones. The 4 points of anchor M8 (1 by side), 1 Handle in the upper part and the 36mm stand hole, make this diffuser ideal for both fixed installations and portable applications.

• Diffuser BI-2-way amplified
• High resonenza, robust and lightweight polypropylene cabinet with full grid-Size in metal and sound-absorbing material
• Class D amplifier for low frequencies; in AB class for highs for a total of 1000W (800W + 200W)
• 12 "woofer with driver from 1.35 "

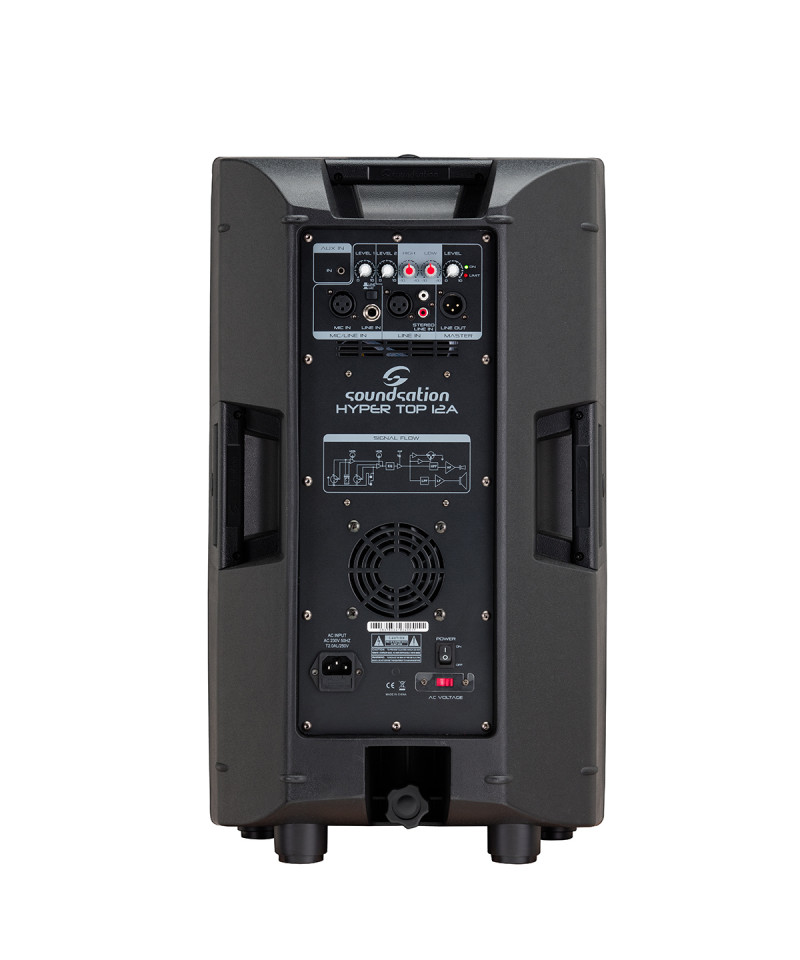

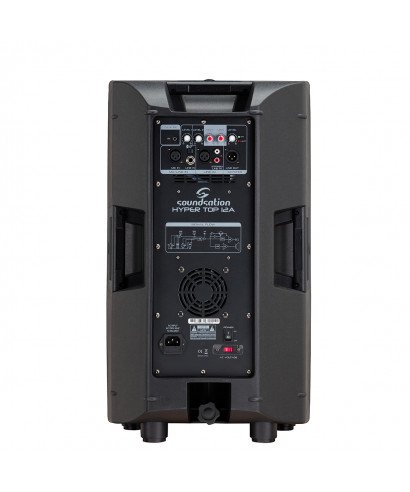

• Microphone / Line XLR + Jack ¼ line inputs, XLR / RCA stereo line input, mini jack to connect smartphones or tablets
• XLR Link Output Output
• Volume controls for each channel, master volume and hi and low equalization

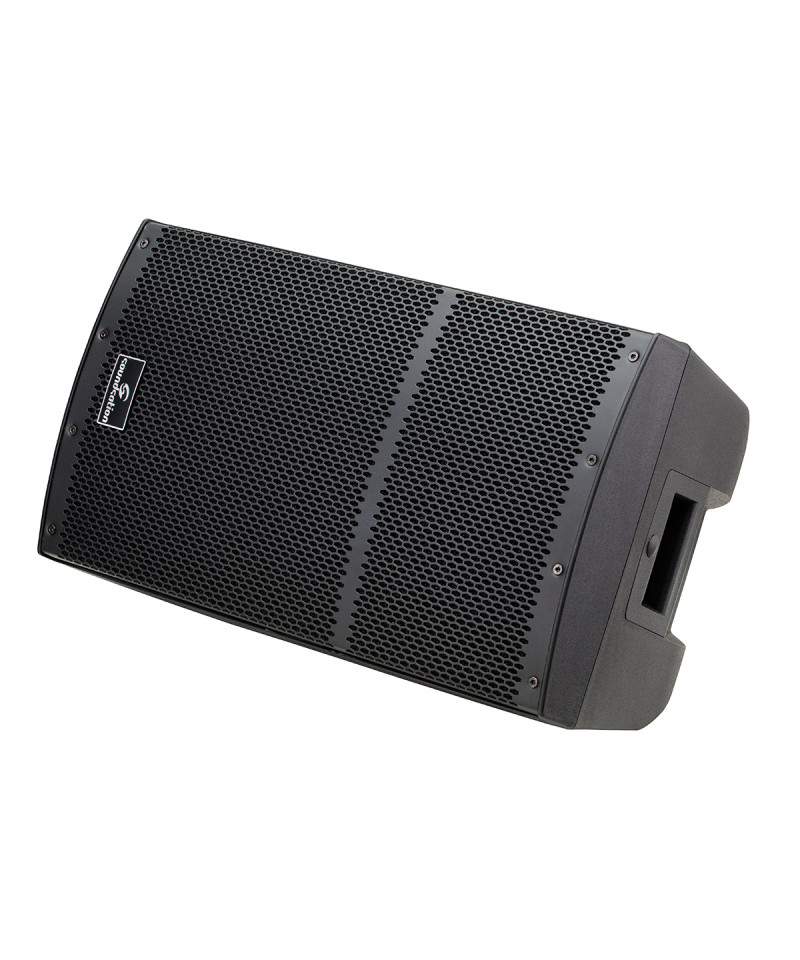

• Usable as a 30 ° / 45 ° Stage Monitor
• Upper handle and two side handles for easy transport
• 36mm stand hole
• 4 M8 anchor points, positioned on CASCIUN side
• Dimensions (LXAXP): 355 x 611 x 350 mm
• Weight: 14.6 kg
• Directivity: 90 ° X 60 °, Symmetric
• Frequency response [- 10dB]: 48hz - 19khz
• Frequency response [- 3dB]: 53hz - 19khz
• Max SPL: 119db
• Sensitivity: 95Dbamplifiers: Class D (low frequencies); Class-AB (high frequencies)
• Power (peak / rated): 1000W (800 + 200W) / 500W (400 + 100W)
• Crossover: 2.8KHz, 24dB / Oct.
• Eqs: High (2.5khz, + /- 12 dB); Low (150hz, + /- 12 dB)
• LEDs: Power On (Green), Clip (Red)
• Power: 230vac - 50 Hz
• Minimum power absorbed: 250w
• Power connector: VDE with T2A fuse-250v
