Paraphonic analog synthesizer

MOOG, presents, Subseq

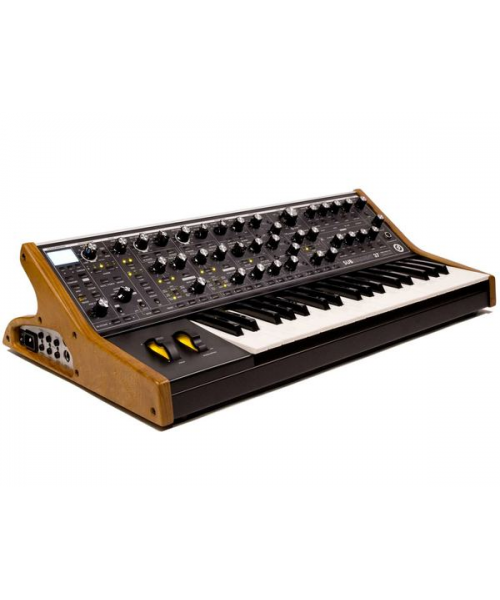

The subsequent 37 a paraphonic analog synthesizer (2-Notes) Realized on the award-winning multiple architecture of the powerful SUB 37 Tribute Edition. On the control panel there are 40 potentiometers and 74 selectors to have immediate control over a wide range of tools for the analog sound design and the control of the sequencer. The subsequent 37, as requested by users, now implements different improvements both sound and functional. Every improvement maintains the magic and features of its predecessor, while offering access to new sizes of sound and improved soundability. The Mixer section of the Subsequent 37 offers double the Headroom of the sub 37 Tribute Edition. This allows you to access a new range of clean classic sounds both in mono and duo mode. Taking advantage of the new mixer flexibility, the gain stage in the redesigned state filter to increase harmonic saturation and analog compression, which leads to a total enrichment of the lower part. Upon completion of the sound evolution of the subsequent 37 we reviewed the MultiDrive circuit, which extends now far beyond the original "Grit and Growl" of the original sub 37. In addition to the strengthening of the sound engine, the subsequent 37 offers an updated keyboard for better play, a powerful and powerful enhanced headphone amplifier to be used with the most demanding headphones, and a software plugin / editor Both for Windows and Mac.

• Architecture: All the controls and features offered by the SUB 37 Tribute Edition
• Evolution of the Sound Engine: Low rich and sonic size increased
• Pi MultiRive: Extended range and "dirrty" as ever before
• Room for Two: Pi Headroom means that sounds in Duo Mode sound even better
• Keyboard 37 Notes: Lightweight, with Swift Action and Aftertouch
• HEIGH HEADPHONE OUTPUT-Power: You can even prepare your sounds in the most noisy environment
• Extended modulation and sequencing: 2 Ass Assignable Bus, 2 Inviluppi Dahdsr Looping and a Ultra Powerful Arpegger / Sequencer
• 256 presets: 16 banks of 16 patches
• Free software editor: It works like a plugin for DAW or as a standalone editor
• Sound Engine: 100% analogue
• Polyphony: Selectable monophonic or paraphonic
• LCD: 128 x 64 pixels with white backlight
• Controller: Pitch Bend, Mod Wheel, After Pressure, Velocity
• Sound sources: 2 Variable Waveshape oscillators, 1 Square Wave Sub oscillator, 1 Analog Noise generator, 1 External Input / Filter Feedback
• Oscillator calibration range: 22hz-6.8khz, Range notes at 8 '= 18 - 116
• Glide module: Assignable to OSC1 / OSC2 / both. Type - LCR, LCT, EXP, Gated, tied
• Filter: 20hz-20khz Moog Ladder Filter w / 6/12/18/24 db / oct filter Slope and MultiDrive
• Transposition: + /- 2 octaves
• Arpeggiator / sequencer: Up, down, order, random, latching, back / forth, invert, + /-2 Range, Tie, Rest, Midi Sync, Sequencer 64-Notes
• Sources: LFO (Triange, Square, Saw, Ramp, Sample & Hold), Filter EG / PGM
• Programmable sources: Amp eps, Constant on, Sine LFO, Noise LFO, OSC 1 Pitch, OSC 2 pitch, Seq Note, Seq Vel, and Seq mod
• Destinations: OSC 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, OSC 1 Wave, OSC 2 Wave, OSC 1 & 2 Wave, Noise Level, EG Time / PGM
• Programmable destinations: Filter Resonance, Filter Drive, Filter Slope, Filter EPS Amount, Filter Keyboard Amount, OSC 1 Level, Sub Osc Level, OSC 2 Level, External In / Feedback Level, OSC 1 On, sub osce on, osc 2 on, noise on, external in / feedback on, arp rate, arp clock division, arp range, arp back / forth, arp ends, arp invert, arp gate length, arp Run, Glide Time, Glide Osc Choice, Glide Type, Glide Gate, Glide tied, Glide on, LFO 1 Clock Division, LFO 1 Range, LFO 1 Sync, LFO 1 Keyboard reset, LFO 1 Keyboard Track, mod 1 Pitch amount, mod 1 Filter Amount, mod 1 Programmable Amount, mod 1 Programmable Destination, LFO 2 Clock Division, LFO 2 Range, LFO 2 Sync, LFO 2 Keyboard Reset, LFO 2 Keyboard Track, Mod 2 Pitch Amount, Mod 2 Filter Amount, Mod 2 Programmable Amount, MOD 2 Programmable Destination, OSC 1 OCT, OSC 2 Sync, OSC 2 RESET Keyboard, OSC 2 OCT, OSC 2 Keyboard Control, OSC 2 Duo Mode, OSC 2 Freq, OSC 2 Beat Freq, FILTER ENV ATTACK, FILTER EPT DECAY, FILTER EPS SUS, filter eps release, filter eps delay, filter eps hold, filter eps vel amount, filter keyboard track, filter eps multitriggering, filter env reset, filter eps sync, filter eps loop, filter eps latch, amp empty attack, amp envy, amp eps sus, amp eps release, amp epv delay, amp envy, amp vel amount, amp keyboard track, amp emptyriggering, Amp Env RESET, AMP ENV SYNC, AMP ENV LOOP, AMP ENV LATCH, VOLUME OUTPUT, BEND UP, BEND DOWN
• LFO panel characteristic: Hi / Low range from 0.01Hz-1KHz, MIDI Sync, KB reset
• Envelopes: Inviluppi Dahdsr with multi-Trigger, Reset, Looping, Midi Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking
• Size: 170 x 680 x 375mm
• Weight: 10kg
